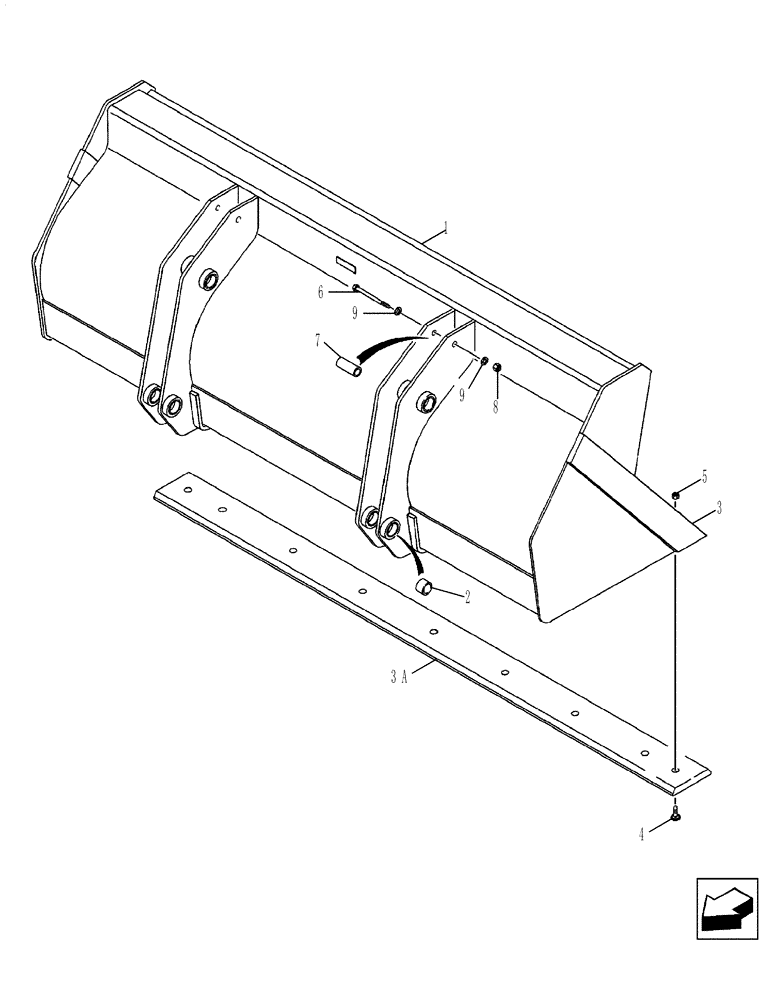

Запчасти Case 580SM (82.100.01[01]) - BUCKET, LOADER LONG LIP (82 IN) (580SM) (82) - FRONT LOADER & BUCKET

87368714

BUCKET

2083 mm (82 in); Assembly Includes Bolt-On Cutting Edge; Without Bucket Teeth; Incl. 1 - 9; Order Through Parts Marketing

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET Incl. Ref 2, 3

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

3

113457A1

CUTTING EDGE,Bolt On, 10 Holes, 12mm W x 2113mm L

Weld-On

1шт.

3a

411661A1

CUTTING EDGE,Bolt On, 10 Hole, 152mm W x 2113mm L

Bolt-On, Unpainted; For Service Order 112946A1 Blade

1шт.

3a

112946A1

EDGE, CUTTING

Tan

1шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

5

29-1012

NUT,3/4"-10, G8

10шт.

6

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

7

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

2шт.

8

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

9

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.
