Запчасти Case 580SM (55.514.01) - ELECTRICAL - LAMPS, ROPS CAB (55) - ELECTRICAL SYSTEMS

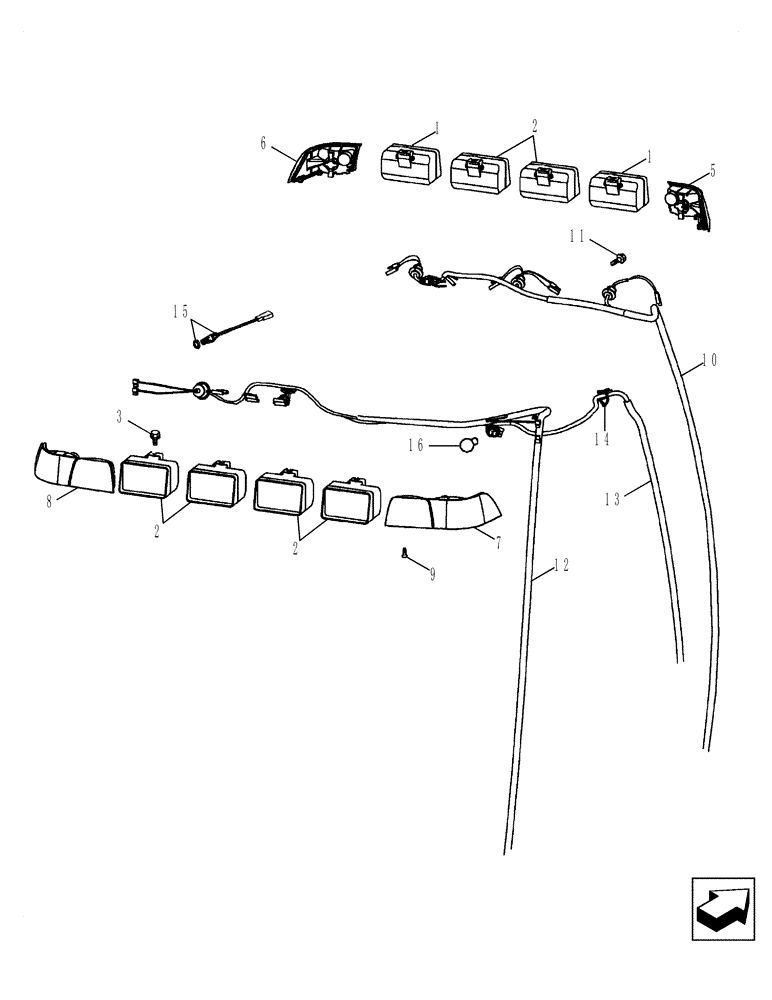

Схема запчастей Case 580SM - (55.514.01) - ELECTRICAL - LAMPS, ROPS CAB (55) - ELECTRICAL SYSTEMS
6
-
9
2
16
12
5
2
11
13
7
1
2
3
14
1
8
-
15
10

Артикул

Название

Примечание

Количество

1

87343247

FRONT LAMP,Halogen, 12V, 55W, Clear

Driving; Outer; Incl. 9703399 Bulb; Cobo Brand; If Used

2шт.

1

9703399

BULB,H3, 12V, 55W

1шт.

2

398847A3

WORK LAMP,Halogen, 12V, 55W, Clear

Front and Rear Flood; Includes 9703399, 276498A1; ABL Brand, If Used

6шт.

2

87443080

WORK LAMP,Halogen, 12V, 55W, Clear

Front and Rear; Includes 9703399 Bulb; Cobo Brand, If Used

6шт.

2

9703399

BULB,H3, 12V, 55W

1шт.

2

276498A1

LENS

With Hardened Glass

1шт.

3

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

8шт.

5

279224A1

WARNING LIGHT

Amber; Right Front Corner; Includes 87517414 Bulb Holder; Lens NSS

1шт.

6

279223A1

WARNING LIGHT

Amber; Left Front Corner; Incl. 87517414 Bulb Holder; Lens NSS

1шт.

7

357540A1

TAIL LAMP

Amber and Red; Right Rear Corner

1шт.

7

87415023

LIGHT ASSY.,12V, Amber/Red

Amber and Red; Right Rear Corner

1шт.

7

87517414

LAMP SOCKET

Bulb Holder - 2 Tab

1шт.

7

9847313

BULB,#894, 12V, 37.5W

Brake Light Bulb W/ 3 Tab Holder

1шт.

8

357541A1

TAIL LAMP

Amber and Red; Left Rear Corner

1шт.

8

87415024

TAIL LAMP,12V, Amber/Red

Amber and Red; Left Rear Corner

1шт.

8

87517414

LAMP SOCKET

Bulb Holder - 2 Tab

1шт.

8

9847313

BULB,#894, 12V, 37.5W

Brake Light Bulb W/ 3 Tab Holder

1шт.

9

84270430

SCREW,Torx, Truss HD, M6 x 1 x 20mm

Replaces 394863A1

10шт.

10

404617A1

WIRE HARNESS

Front

1шт.

11

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

12

398380A3

HARNESS

Rear

1шт.

13

84168581

WIRE HARNESS

B-Post, Dome Lamp, Radio, Rear Wiper; Replaces 396018A3 Harness

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

5-8шт.

15

279265A2

SWITCH

Dome Lamp

1шт.

16

279916A1

BULB

Wedge Base, Used for Ref 7 & 8

2шт.

Выбрано товаров: 25
