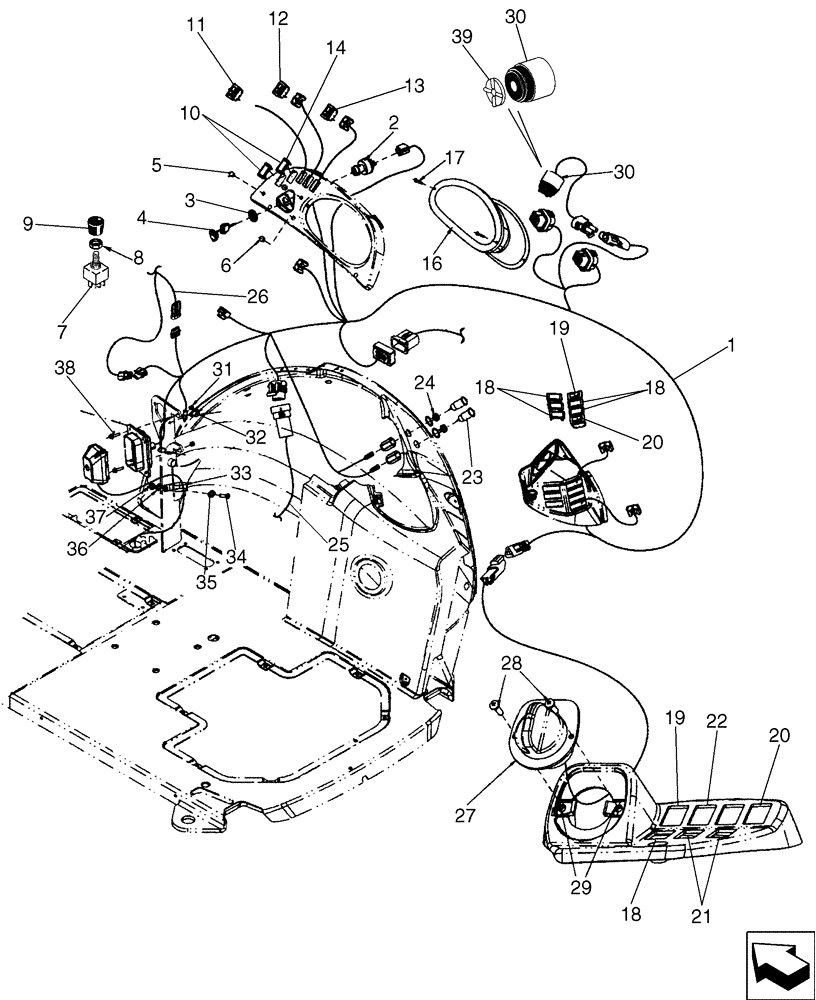

Запчасти Case 580SM (55.512.16) - HARNESS, SIDE CONSOLE - SWITCHES (55) - ELECTRICAL SYSTEMS

1

87726583

WIRE HARNESS

Side Console

1шт.

282775A1

IGNITION SWITCH

Incl. Ref 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

SWITCH Without Keys

1шт.

3

NSS

NOT SOLD SEPARAT

NUT

1шт.

4

1964831C2

IGNITION KEY

Padded

1шт.

5

397569A1

PLUG

7/16 in, Dome; If Used; For Air Conditioning Switch and Knob

2шт.

6

397570A1

PLUG

1/2 in, Dome; If Used; For Heater Switch and Knob

1шт.

7

245258A1

ROTARY SWITCH

Blower

1шт.

121415A1

FUSE,25A, Mini, Clear

Blower and Wiper

1шт.

8

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

1шт.

9

400379A1

KNOB,23mm

1шт.

10

86000535

PLUG,1.427" x .62", Plastic

If Used

1-4шт.

11

87614808

ROCKER SWITCH

Rocker; Parking Brake

1шт.

12

87410091

ROCKER SWITCH

Rocker; 2 Position Momentary; Display/Enter

1шт.

13

87410087

ROCKER SWITCH

Rocker; 2 Position Momentary; Up/Down

1шт.

14

239408A1

SWITCH

Four Wheel Drive; Models With Powershift Transmission; If Used

1шт.

14

133716A1

ROCKER SWITCH

Four Wheel Drive; Models Without Powershift Transmission; If Used

1шт.

121412A1

FUSE,10A, Mini, Red

Four Wheel Drive

1шт.

15

235002A1

ROCKER SWITCH

Rocker, Ride Control; If Used; Not Illustrated

1шт.

16

87521765

INSTRUMENT CLUSTER

1шт.

87521765R

REMAN-INSTR CLUSTER

580SM, 580SM+ Both SERIES 3 TIER 3 (2/08-)

1шт.

87521765C

CORE-CLUSTER, INSTR

Return Number

1шт.

17

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

2шт.

18

86000535

PLUG,1.427" x .62", Plastic

If Used

1-5шт.

19

133715A1

LIGHT SWITCH

Rocker, Rear Work Lights

1шт.

20

386852A2

SWITCH

Rocker; Rear Horn

1шт.

21

386789A2

SWITCH

Backhoe Quick Coupler and Hydraulic Backhoe Bucket Coupler; If Used

2шт.

22

386786A1

ROCKER SWITCH

Rear Wiper; If Used

1шт.

23

283779A1

POWER SOCKET,12V

30 amp Maximum

2шт.

24

283781A1

CAP,Polyester Elastomer

Power Plug Outlet

2шт.

25

87726575

WIRE HARNESS

Side Option

1шт.

26

NSS

NOT SOLD SEPARAT

HARNESS Loader Control Lever; Included In Loader Control Lever Handle

1шт.

27

87528964

THROTTLE CONTROL

1шт.

28

87675764

SELF-TAP SCREW,Pan Head, M10 x 19.1mm

2шт.

29

87565604

NUT,0.250" ID

2шт.

30

87527167

HORN,5-15V

Alarm, Warning

1шт.

31

832-10406

NUT,M6 x 1, Cl 8

2шт.

32

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

33

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1-3/4; If Used

1шт.

34

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

35

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

36

892-11008

LOCK WASHER,8mm ID

1шт.

37

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

38

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

39

87539792

COVER

For Muting Audible Alarm; Cab Models Only

1шт.

87726573

WIRE HARNESS

Chassis Options Harness

1шт.
