Запчасти Case 580SM (55.512.14) - HARNESS, FRONT CONSOLE - SWITCHES (55) - ELECTRICAL SYSTEMS

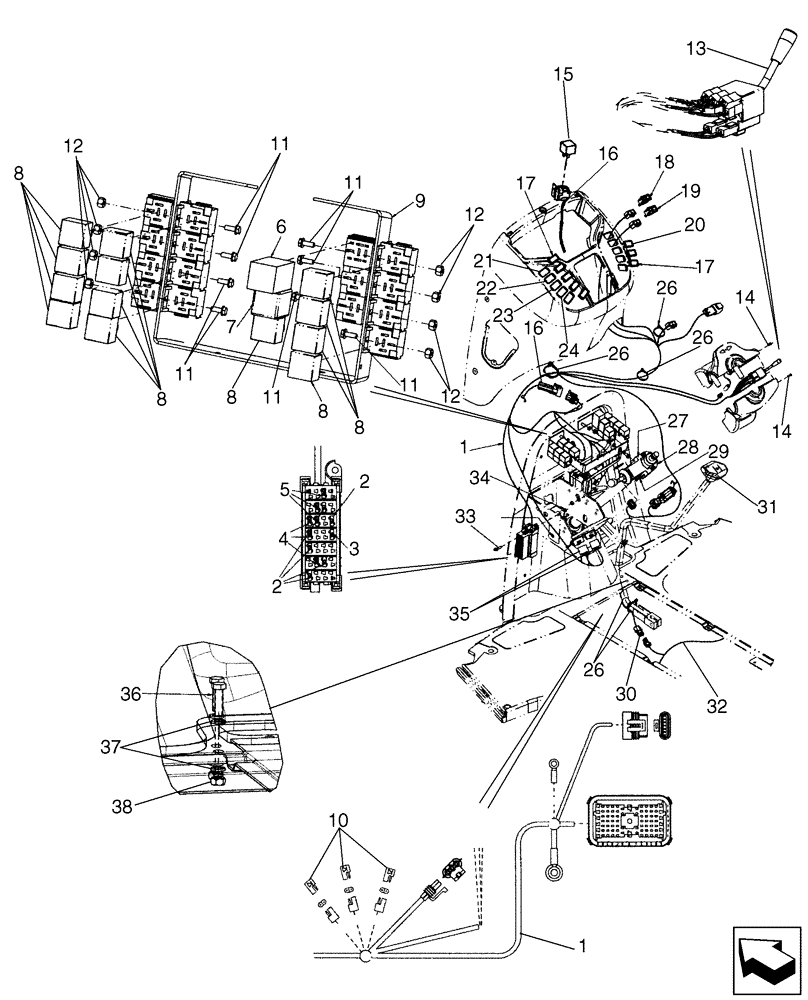

Схема запчастей Case 580SM - (55.512.14) - HARNESS, FRONT CONSOLE - SWITCHES (55) - ELECTRICAL SYSTEMS
20
10
18
8
19
33
17
12
6
9
26
23
11
16
16
11
13
22
32
37
24
12
34
5
2
35
8
14
8
30
26
12
17
3
38
14
31
28
1
1
8
11
2
27
7
11
4
26
8
26
36
11
21
29

Артикул

Название

Примечание

Количество

1

84137705

WIRE HARNESS

Front Console; Replaces 87726581

1шт.

2

121412A1

FUSE,10A, Mini, Red

Red

5-6шт.

3

121413A1

FUSE,15A, Mini, Blue

Blue

2-3шт.

4

121414A1

FUSE,20A, Mini, Yellow

Yellow

3шт.

5

121416A1

FUSE,30A, Mini, Green

Green

3шт.

6

87578455

RELAY,12V, Turn Signal and Hazard

Relay, Hazard; Turn Signal

1шт.

7

347706A3

RELAY,12V, 5A

Sealed Time Delay, Shuttle Interlock Timing Relay, Forward Reverse Control

1шт.

8

87436836

RELAY,12V, 40 Amp

40 amp, 12V

13шт.

9

361900A1

BRACKET

Relay Mounting

1шт.

10

L71879

DIODE ELEMENT,400V, 3A

3шт.

11

87301687

SCREW,HWH, #10 - 32 x 1/2"

8шт.

12

231-24409

NUT,#10-32

8шт.

13

389487A1

LIGHT SWITCH

Turn Signal/Driving Lamp High/Low Beam

1шт.

14

84178909

SCREW,M4 x 12mm

M4 x 12

2шт.

15

87436836

RELAY,12V, 40 Amp

40 amp, 12V; Air Conditioning; Attaches To Front Console Options Harness

1шт.

16

87726574

WIRE HARNESS

Front Console Options; Includes (1) L71879 Diode

1шт.

L71879

DIODE ELEMENT,400V, 3A

1шт.

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

Mounts Relay Recepticle

1шт.

193-1000

NUT,Keps, w/LW,#10-32

Mounts Relay Recepticle

1шт.

17

86000535

PLUG,1.427" x .62", Plastic

Accessory; If used

2-8шт.

18

386849A1

ROCKER SWITCH

Front Work Lamps

1шт.

19

386850A1

ROCKER SWITCH

Hazard Lamps

1шт.

20

386851A1

BEACON SWITCH

Rotating; If Used

1шт.

21

87585817

SWITCH

Comfort Steer; If Used

1шт.

22

386785A1

WINDSHIELD WIPER SWI

Front Wiper; If Used

1шт.

23

386787A1

WINDSHIELD WASHER SW

Front, If Used

1шт.

24

398675A2

ROCKER SWITCH

Loader Tool Quick Coupler; If Used

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

27

278328A1

SWITCH

Shuttle Shift; Transmission Forward/Neutral/Reverse Switch; Models Without Powershift Transmission

1шт.

27

231520A2

SWITCH

Shuttle Shift; Transmission Forward/Neutral/Reverse Switch; Models With Powershift Transmission

1шт.

28

366889A2

HALF-COLLAR

HALF COLLAR Shuttle Lever; Includes Threaded Insert

1шт.

29

397990A1

SCREW,Phillips Drive, Pan HD, M5 x 0.8 x 35mm

M5 x 35

2шт.

30

123809A2

WIRE HARNESS

Clutch Cutout; Transmission Gear Shift Lever; For Lever

1шт.

31

87312712

SWITCH

Clutch Cutout; For Lever and Knob, Otto 21649 Marking; If Used

1шт.

32

87726576

WIRE HARNESS

Engine, Main Chassis

1шт.

33

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

34

832-10406

NUT,M6 x 1, Cl 8

1шт.

35

82026949

PUSH BUTTON SWITCH

Brake Lamp; Includes Hardware; For Mounting

2шт.

36

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

37

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

38

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

87726574

WIRE HARNESS

Chassis Options

1шт.

Выбрано товаров: 42
