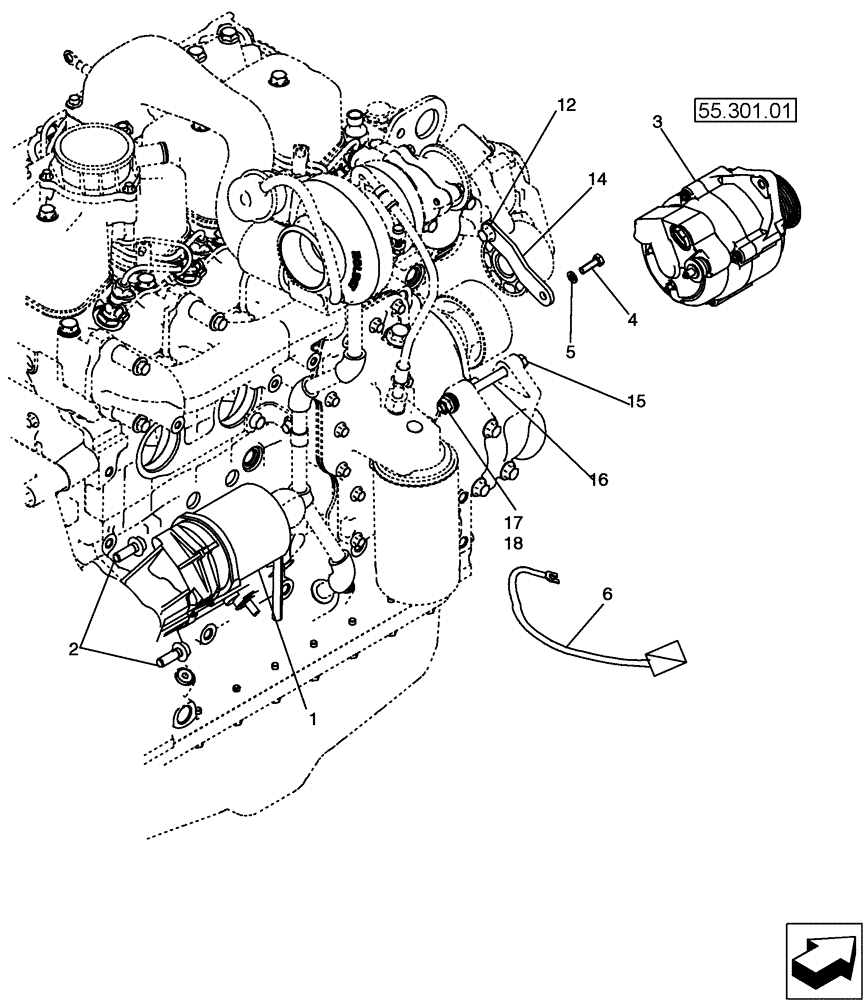

Запчасти Case 580SM (55.201.09) - STARTER MOUNTING - ALTERNATOR MOUNTING (55) - ELECTRICAL SYSTEMS

1

86992395

STARTER MOTOR,12V, 2.7kW

1шт.

1

86992395R

REMAN-STARTER,12V, 2.7kW

Remanufactured, STARTER

1шт.

1

86992395C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

2

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

3

87422777

ALTERNATOR,12V, 90A, W/ Pulley

Mounting Hardware Included With 87584965 Engine Assembly; See Ref. 12, 14, 16

1шт.

3

87422777R

REMAN-ALTERNATOR

Reman for New PN 87422777

1шт.

3

87422777C

CORE-ALTERNATOR

Return number

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

892-11008

LOCK WASHER,8mm ID

1шт.

6

87433401

ELECTRIC CABLE

Starter Solenoid Jumper

1шт.

12

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

Included With 87584965 Engine Assy

1шт.

14

2852180

BRACKET

Included With 87584965 Engine Assy

1шт.

15

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

16

2852181

SPACER,10.4mm ID x 22mm OD x 35mm L

Included With 87584965 Engine Assy

1шт.

17

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
