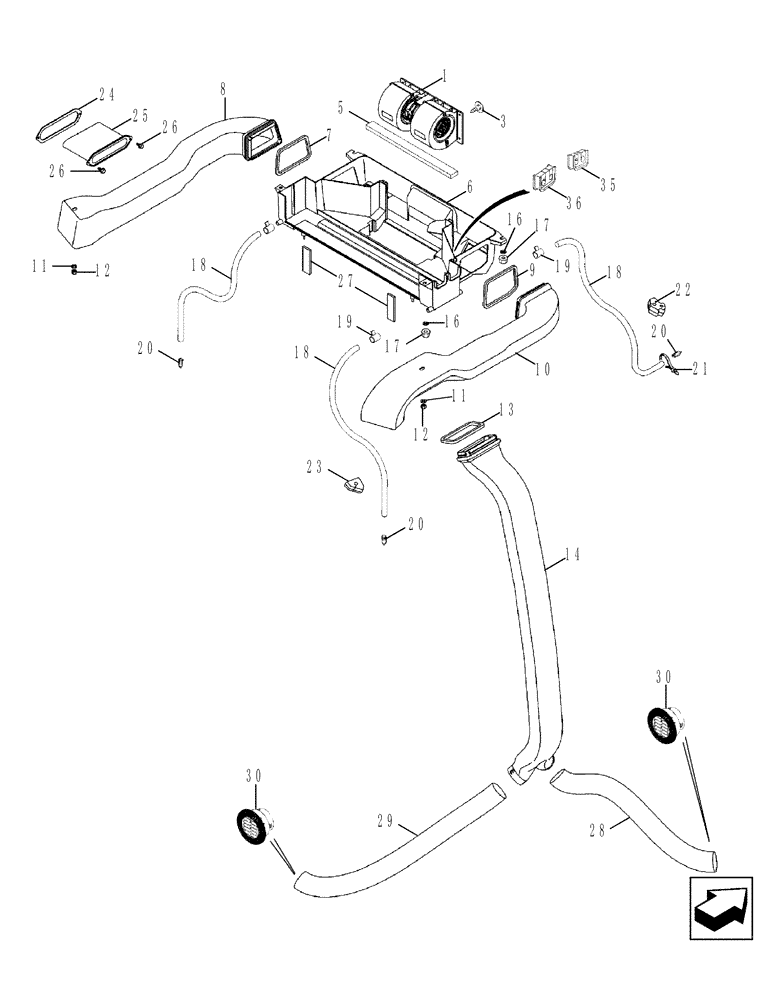

Запчасти Case 580SM (50.206.05) - CAB - BLOWER HOUSING, VENTILATION DUCTS, DRAIN LINES (50) - CAB CLIMATE CONTROL
№
Артикул
Название
Примечание
Количество
1
377220A2
BLOWER ASSY.
Component Parts Not Serviced Separately; Kysor/Westran Brand; If Used;
1шт.
1
377220A2R
REMAN-BLOWER
1шт.
1
377220A2C
CORE-BLOWER
Return Number
1шт.
359504A1
RESISTOR
Blower Motor, Consists Of A Multi-Tapped Ceramic Resistor And A Thermal Fuse (kysor number 222979)
1шт.
1
377241A2
BLOWER ASSY.
Component Parts Not Serviced Separately; Aurora Brand; If Used;
1шт.
1
377220A2R
REMAN-BLOWER
Reman For New P/N 377241A2
1шт.
1
377220A2C
CORE-BLOWER
Return Number
1шт.
3
182697A1
FASTENER
1шт.
5
181981A1
SEALING STRIP
6 x 20 x 355 mm; Adhesive Back; Under Blower
1шт.
6
360251A3
HOUSING
Heat & Air; Incl. 373995A1
1шт.
373995A1
INSERT
2шт.
7
368805A1
FOAM INSULATION
Left-Hand Duct
1шт.
8
360253A3
AIR DUCT
LH
1шт.
9
369249A1
RUBBER SEAL,183mm L
Right-Hand Duct
1шт.
10
360254A3
AIR DUCT
RH
1шт.
11
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
2шт.
12
832-10408
NUT,M8 x 1.25, Cl 8.8
2шт.
13
368807A1
RUBBER SEAL,8mm Thk
1шт.
14
360255A1
DUCT
1шт.
16
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
4шт.
17
832-10408
NUT,M8 x 1.25, Cl 8.8
4шт.
18
87615800
TUBE,16.88 mm ID x 549.00 mm
; Drain
4шт.
19
214-1406
HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm
4шт.
20
365789A1
DRAIN VALVE
4шт.
21
L18337
CABLE TIE,9.95"-12.1" lg
2шт.
22
383794A2
PLUG
2шт.
23
383795A2
PLUG
580SM Models
2шт.
23
395470A1
PLUG
580SM+ Models
2шт.
24
381113A2
INSULATOR,3mm Thk
1шт.
25
381111A2
SLEEVE
1шт.
26
281-18712
SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"
2шт.
27
377230A3
SEAL,94mm L
16 mm thk; Fresh Air Duct To Ventilation Housing
2шт.
28
375392A1
AIR DUCT
750 mm; Cut from 236559A1
1шт.
29
368818A1
AIR DUCT,63.5mm ID x 1015mm L
1015 mm; Cut from 236559A1
1шт.
30
398986A1
VENT
2шт.
35
403225A1
SEAL,62mm L
Heater Tubes At Housing
1шт.
36
403193A1
SEAL,62mm L
Air Conditioning Tubes At Housing
1шт.
Выбрано товаров: 37
