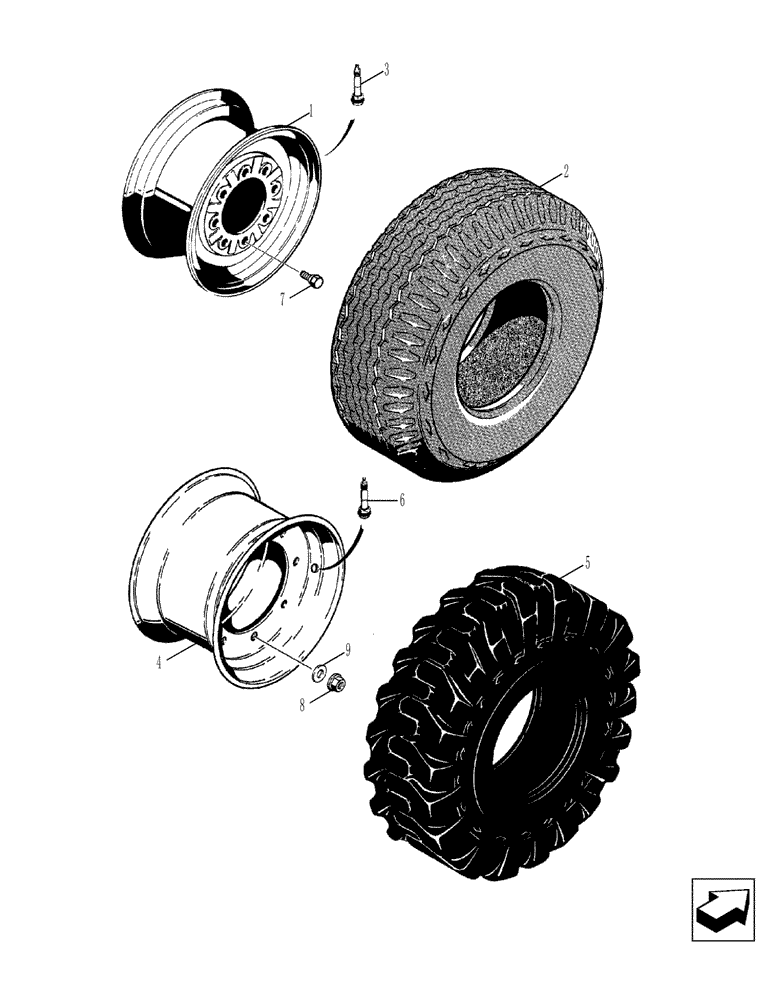

Запчасти Case 580SM (44.511.08) - WHEELS, FRONT - TIRES (44) - WHEELS

1

D125223

WHEEL,W8Lx16, 8 Holes, CASE Power Tan

For 580SM 11L x 16 - 10 PR F3 Tires; 2WD Models

2шт.

1

197771A1

WHEEL

For 580SM 11L x 16 - 10PR R3 Tires; Two Wheel Drive Models

2шт.

2

REF

INSTRUCTION

TIRE Purchase Locally

2шт.

3

387897R91

VALVE STEM

2шт.

4

119243A1

WHEEL,16.5x9.75, 8 Holes, CASE Power Tan

For 580SM 12 x 16.5 - 8 or 10 PR Tires; Four Wheel Drive Models

2шт.

4

139080A1

WHEEL

For 580SM 10.5/80 x 18 x 10 Ply Tires

2шт.

4

87699875

WHEEL,9x18, 228.6mm W, 8 Holes, CASE Power Tan

For 580SM+ 12.5/80 x 18 - 10 PR SG; Four Wheel Drive Models

2шт.

5

REF

INSTRUCTION

TIRE Purchase Locally

2шт.

6

387897R91

VALVE STEM

2шт.

7

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

2WD Models

16шт.

8

100092

WHEEL NUT,M18 x 1.5, Cl 8

Wheel; Four Wheel Drive Models

16шт.

9

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

4WD Models

16шт.
