(41.216.06) - AXLE, FRONT DRIVE - CYLINDER, STEERING

Запчасти Case 580SM (41.216.06) - AXLE, FRONT DRIVE - CYLINDER, STEERING (41) - STEERING

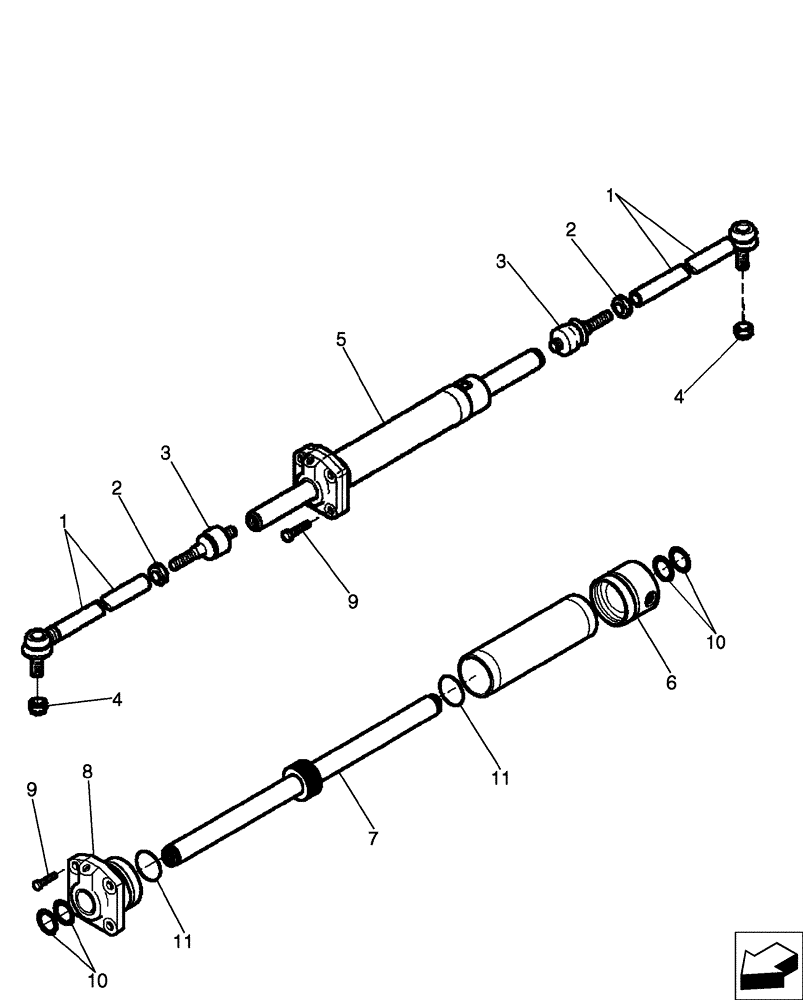

Схема запчастей Case 580SM - (41.216.06) - AXLE, FRONT DRIVE - CYLINDER, STEERING (41) - STEERING
10
11
4
3
2
6
9
8
2
11
1
9
1
10
5
7
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87395365

4WD AXLE ASSY

Front, With Or Without Powershift Transmission, Incl. Ref 1 - 11

1шт.

580SM

1шт.

87395365R

REMAN-AXLE DIFFERENT

1шт.

87395365C

CORE-AXLE, MFD

Return Number

1шт.

144457A1

STEERING ARM

Incl Ref 1 - 3 (Qty of 1ea); 87395365 - 580SM Axle

2шт.

580SM

1шт.

1

87710157

STEERING TIE-ROD,26mm OD x 265mm L

Ball Joint

2шт.

2

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

2шт.

3

112509A1

BALL JOINT

2шт.

4

905839R1

LOCK NUT,M18 x 1.5, Thin

2шт.

5

87710158

STEERING CYLINDER

Incl. Ref 6 - 16, Order 87710144 Kit to Service Seals

1шт.

6

87710142

CYLINDER HEAD

1шт.

7

87710143

ROD

1шт.

8

87710141

CYLINDER END CAP

Gland

1шт.

9

87710137

BOLT

M12 x 35

4шт.

87710144

OIL SEAL

Incl. Ref 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, Wiper

4шт.

11

NSS

NOT SOLD SEPARAT

O-RING

2шт.
