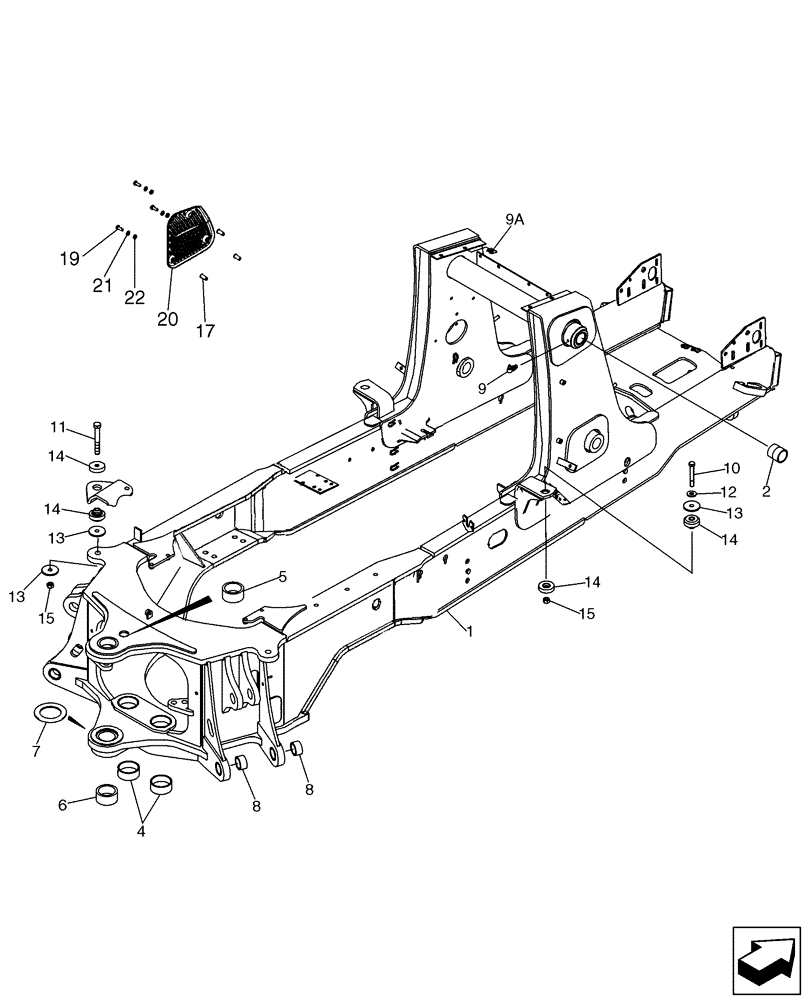

Запчасти Case 580SM (39.100.02) - CHASSIS / MOUNTS, POD - SCREEN, AIR INLET (39) - FRAMES AND BALLASTING

1

NS

NOT SERVICED

CHASSIS 580SM; Incl. Ref 2 - 8

1шт.

1

NS

NOT SERVICED

CHASSIS 580SM+; Incl. Ref 2 - 8; Not Illustrated

1шт.

2

180427A1

BUSHING,50.23mm ID x 60mm OD x 52.4mm L

2шт.

4

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

80 x 5 x 28.8

2шт.

5

D151069

BUSHING,70.19mm ID x 90mm OD x 32mm L

70 x 10 x 32 mm

1шт.

6

D151070

BUSHING,70.19mm ID x 90mm OD x 38mm L

70 x 10 x 38 mm

1шт.

7

220413A1

SPACER,93mm ID x 135mm OD x 5mm Thk

93 x 135 x 5 mm; Welded-On

1шт.

8

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

4шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

9a

833-40310

NUT,M10, U

4шт.

10

827-16085

BOLT,Hex, M16 x 2 x 85mm, Cl 10.9

2шт.

11

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

12

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

2шт.

13

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

4,5 mm thick

6шт.

14

411892A1

RUBBER MOUNTING

M16; Operator Compartment Pod Mounts

4шт.

15

829-1416

NUT,M16, Cl 10

4шт.

17

87417383

THREADED INSERT,M8 x 1.25

Nut, M8

3шт.

19

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

20

87324160

SCREEN

Air Inlet, Plastic, With Slots

1шт.

21

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

22

87310109

SPACER

9.5 ID x 15 OD x 3.0 mm th

3шт.
