Запчасти Case 580SM (35.739.02[02]) - CYLINDER ASSY - BACKHOE SWING (580SM) (35) - HYDRAULIC SYSTEMS

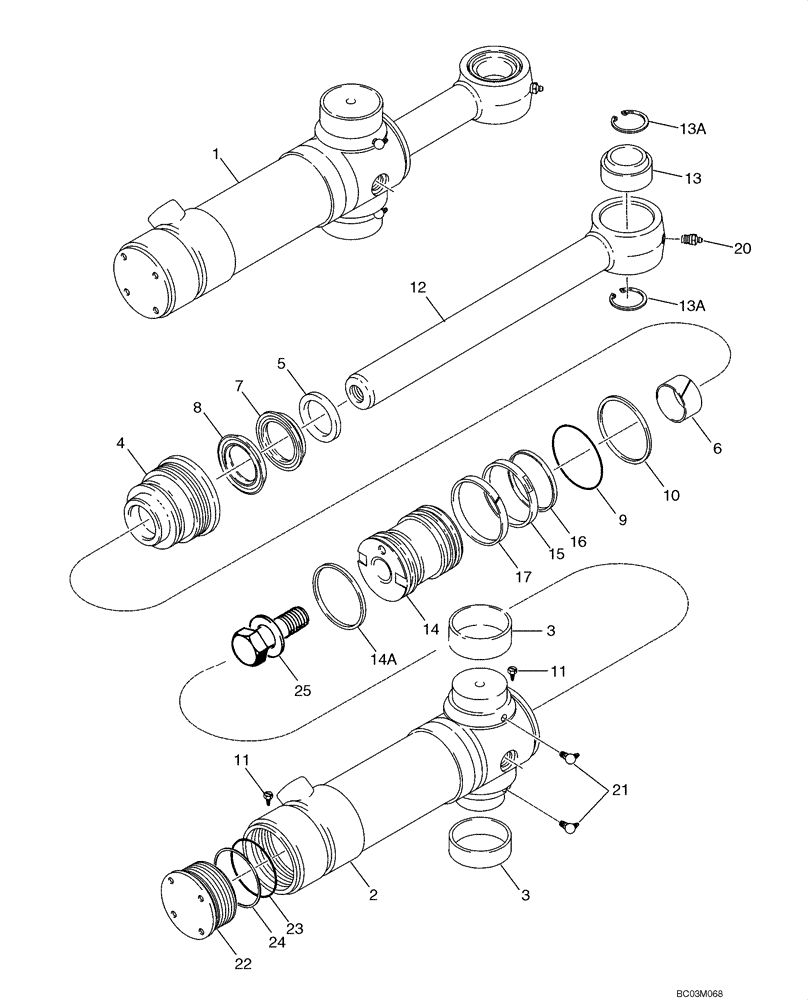

Схема запчастей Case 580SM - (35.739.02[02]) - CYLINDER ASSY - BACKHOE SWING (580SM) (35) - HYDRAULIC SYSTEMS
12
13
14a
22
16
10
21
5
14
23
2
3
7
9
8
3
25
1
11
11
20
15
17
4
13a
24
6
13a

Артикул

Название

Примечание

Количество

1

188027A2

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 292mm Stroke

95 ID x 292 mm strk, Incl. Ref 2 - 25

2шт.

188027A2R

REMAN-HYD CYLINDER

580SM (SERIES 3) (TIER 3) (NA) (2/08-)

2шт.

188027A2C

CORE-HYD CYLINDER

Return Number

1шт.

2

220165A2

TUBE

Incl. Ref 2, 3, 11, 22 - 24; Not Available As An Assembly; Order Components

1шт.

2

188028A2

TUBE,527.7 mm Length

Incl. Ref 3

1шт.

3

124568A2

RING,69.92mm ID x 77mm OD x 28mm L

Bushing

2шт.

4

188032A2

GLAND,95.3mm Bore, 50.8mm Rod, 82.4mm W

1шт.

191747A1

SEAL KIT

KIT, Incl. Ref 5 - 10, 14A - 17, 23, 24

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

1542876C1

SEAL KIT,50.8mm Rod

Rod and Buffer; Incl Ref 7, 8; Not Serviced Separately; Order 191747A1 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL Rod; Order 191747A1 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL Buffer; Order 191747A1 Seal Kit

1шт.

9

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

Backup

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

2шт.

12

87413722

PISTON ROD

51 mm (2 in) dia, Incl. Ref 13, 13A

1шт.

13

137248A1

RING,50.79mm ID x 80.96mm OD x 44.45mm W

1шт.

13a

100-21315

SNAP RING,3.156", Int, #315

2шт.

14

188034A3

PISTON,94.95mm Bore, 50.83mm Rod, 116mm W

1шт.

14a

191252A1

SEALING RING,85.9mm ID x 95.3mm OD x 4.7mm Thk

Cast Iron

1шт.

15

1340764C1

SEAL,Locking, 92.13mm ID x 96.85mm OD x 6.96mm Thk

1шт.

16

1340763C1

RING,Square, 5.28mm Thk x 81.74mm ID

1шт.

17

1980245C1

SEALING RING,89mm ID x 95.2mm OD x 12.5mm Thk

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

188035A1

CYLINDER END CAP

Incl. Ref 22 - 24; Not Available As An Assembly, Order Components

1шт.

22

188036A1

CAP,Ductile Iron

End

1шт.

23

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

1шт.

24

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

1шт.

25

86982439

SPECIAL BOLT,Hex, 14, 1 x 4"

1 x 4,0; Incl. Washer

1шт.
