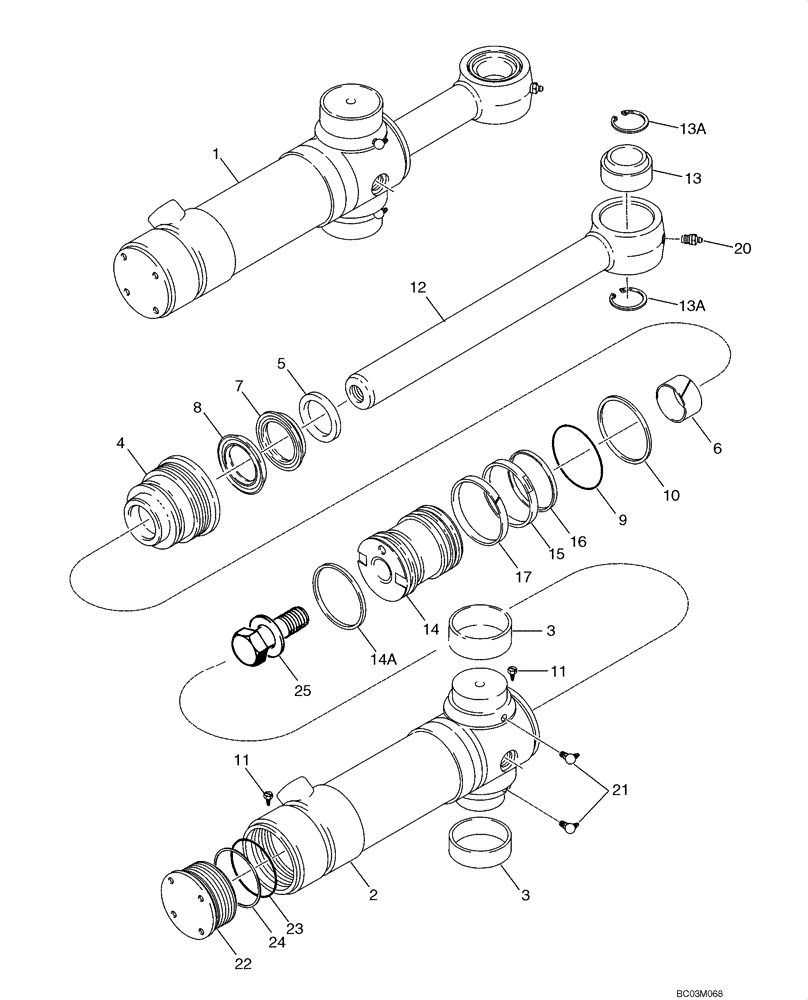

Запчасти Case 580SM (35.739.02[01]) - CYLINDER ASSY - BACKHOE SWING (35) - HYDRAULIC SYSTEMS

1

139808A2

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 292mm Stroke

Backhoe Swing; 102 ID x 292 mm strk, Incl Ref 2 - 25

2шт.

1

139808A2R

REMAN-HYD CYLINDER

REMANUFACTURED HYD CYLINDER - for N.A. Only

2шт.

1

139808A2C

CORE-HYD CYLINDER

Return Number, HYD CYLINDER - for N.A. Only

2шт.

199953A2

BARREL

Incl Ref 2, 3, 11, 22 - 24; Not Available as an Assembly; Order Components

1шт.

2

139810A2

TUBE,101.37mm Bore Dia

Incl. Ref 3

1шт.

3

124568A2

RING,69.92mm ID x 77mm OD x 28mm L

Bushing

2шт.

4

297283A1

GLAND

1шт.

122535A1

SEAL KIT

Repair, Incl Ref 5 - 10, 14A - 17, 23, 24

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

1542876C1

SEAL KIT,50.8mm Rod

Rod and Buffer; Incl Ref 7, 8; Not Serviced Separately; Order 122535A1 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL Rod; Order 122535A1 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL Buffer; Order 122535A1 Seal Kit

1шт.

9

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

1шт.

10

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

2шт.

12

87413722

PISTON ROD

51 mm (2 in) dia; Incl. 13, 13A

1шт.

13

137248A1

RING,50.79mm ID x 80.96mm OD x 44.45mm W

1шт.

13a

100-21315

SNAP RING,3.156", Int, #315

2шт.

14

112370A3

PISTON

1шт.

14a

121478A1

RING,96.72mm ID, Ext

4 in OD, Cast Iron

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

1шт.

17

G100448

RING,101.6mm OD, Ext

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

124462A1

CYLINDER END CAP

Incl. Ref 22 - 24; Not Available As An Assembly, Order Components

1шт.

22

124463A1

CYLINDER END CAP

1шт.

23

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

24

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

25

86982439

SPECIAL BOLT,Hex, 14, 1 x 4"

1 x 4.00 in, Includes Washer

1шт.
