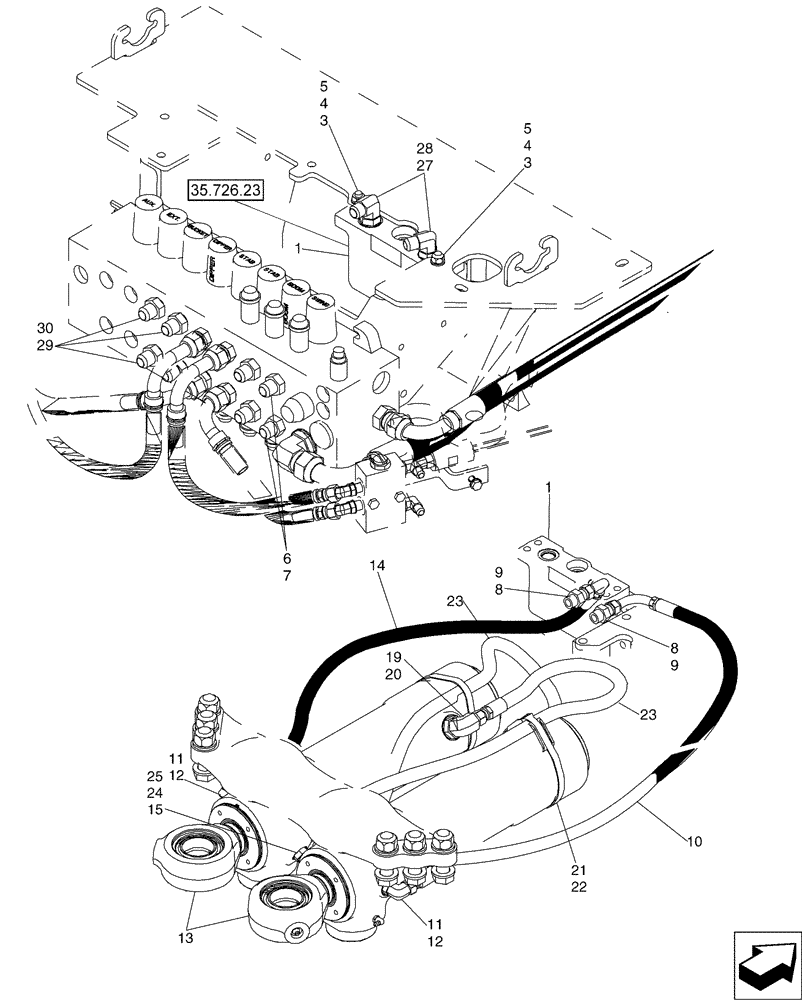

Запчасти Case 580SM (35.738.04) - HYDRAULICS - CYLINDER, BACKHOE SWING (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

REF

INSTRUCTION

Models With Pilot Controls

1шт.

1

87480653

DAMPING VALVE

Swing Cushion Replaces 87449373

1шт.

3

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

6

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 7

2шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. Ref 9

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

87440812

HYDRAULIC HOSE,12.7mm ID x 950mm L

950 mm (37-13/32 in)

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

13

188027A2

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 292mm Stroke

95 ID x 292 mm Stroke, Swing

2шт.

13

188027A2R

REMAN-HYD CYLINDER

580SM, 580SM+ UT58P305 All (SERIES 3) (TIER 3) (NA) (2/08-)

2шт.

13

188027A2C

CORE-HYD CYLINDER

Return Number

2шт.

580SM Series 3

1шт.

13

139808A2

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 292mm Stroke

102 ID x 292 mm Stroke, Swing

2шт.

580SM+ Series 3

1шт.

13

139808A2R

REMAN-HYD CYLINDER

REMANUFACTURED HYD CYLINDER - for N.A. Only

2шт.

13

139808A2C

CORE-HYD CYLINDER

Return Number, HYD CYLINDER - for N.A. Only

2шт.

14

87450698

HOSE ASSY.,12.7mm ID x 1285mm L

1285 mm (50-19/32 in)

1шт.

15

192971A1

ORIFICE,9.52mm OD x 7.14mm ID, 3.18mm x 6 ID, 3.61mm ID

2шт.

580SM Series 3

1шт.

15

124690A1

RESTRICTOR

ORIFICE

2шт.

580SM+ Series 3

1шт.

19

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 20

2шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

21

D142787

SPACER

2шт.

22

214-1492

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

2шт.

23

87441076

HYDRAULIC HOSE,9.53mm ID x 802mm L

802 mm (31-19/32 in)

2шт.

24

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

27

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Inc. 30

6шт.

580SM Series 3

1шт.

29

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 30

6шт.

580SM+ Series 3

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
