(35.738.01) - HYDRAULICS - CYLINDER, LOADER BUCKET (580SM)

Запчасти Case 580SM (35.738.01) - HYDRAULICS - CYLINDER, LOADER BUCKET (580SM) (35) - HYDRAULIC SYSTEMS

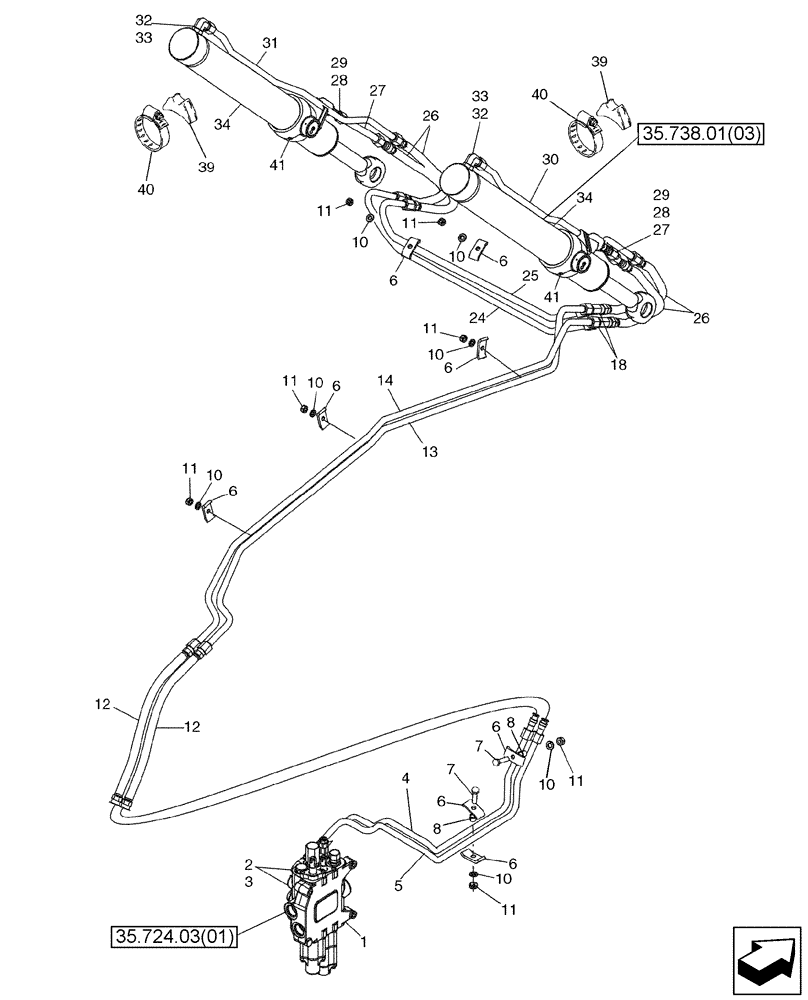

Схема запчастей Case 580SM - (35.738.01) - HYDRAULICS - CYLINDER, LOADER BUCKET (580SM) (35) - HYDRAULIC SYSTEMS
26
10
11
5
39
24
6
29
10
6
7
31
13
39
33
8
10
26
41
34
40
11
10
12
25
6
8
18
35.738.01(03)
6
6
40
11
4
11
27
1
35.724.03(01)
10
6
30
3
11
10
7
34
11
6
32
2
32
29
11
33
28
28
12
27
10
41
14
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE Loader Control

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

4

87421918

HYDRAULIC HOSE

Upper Bucket Port

1шт.

5

87421920

HYDRAULIC HOSE

Lower Bucket Port

1шт.

6

D138055

CLAMP

8шт.

7

614-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8, Full Thd

2шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

10

892-11010

LOCK WASHER,M10

7шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

7шт.

12

87429287

HYDRAULIC HOSE,7/8" - 14 JIC, 710mm L

710 mm (28 in)

2шт.

13

87716480

HYD TUBE

To Upper Port

1шт.

14

87716482

HYD TUBE

1шт.

18

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

2шт.

24

196815A1

TUBE

Rear

1шт.

25

196813A1

TUBE

Front

1шт.

26

371031A1

HYDRAULIC HOSE,3/8" ID x 940mm L

840 mm (33")

4шт.

27

87316049

RIGID TUBE

Bucket Cylinder Rod End

2шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. Ref 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

30

87316270

TUBE

Right-Hand Cylinder Closed End

1шт.

31

87316264

RIGID TUBE

Left-Hand Cylinder Closed End

1шт.

32

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 33

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

34

87609669

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke

76 ID x 522 mm strk; Loader Bucket

2шт.

39

L79937

SADDLE

2шт.

40

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

41

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.
