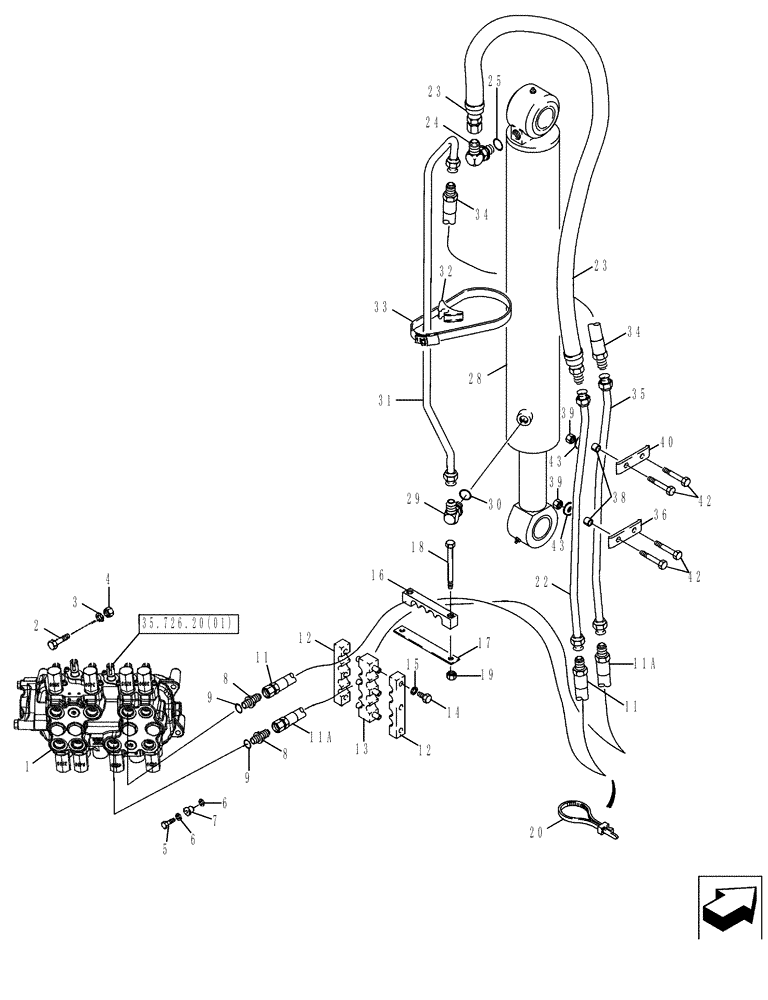

Запчасти Case 580SM (35.736.02) - HYDRAULICS - CYLINDER, BACKHOE BOOM (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE ASSY Control; Backhoe Control Valve

1шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

2шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

11

393380A1

HYDRAULIC HOSE,15.88mm ID x 1295mm L

1295 mm (51 in); Upper Valve Port

1шт.

11a

393380A1

HYDRAULIC HOSE,15.88mm ID x 1295mm L

1295 mm (51 in); Lower Valve Port

1шт.

12

143439A1

CLAMP

2шт.

13

176226A1

CLAMP

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

15

892-11008

LOCK WASHER,8mm ID

6шт.

16

87337880

HOSE CLAMP

1шт.

17

132212A1

PLATE

1шт.

18

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

22

87455441

HYD TUBE

1шт.

23

187845A1

HOSE,15.88mm ID x 1000mm L

1000 mm (39-3/8 in)

1шт.

24

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 25

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

28

87711763

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 842.5mm Stroke

Backhoe Boom; 133 ID x 843 strk; Replaces 87687997

1шт.

28

87711763R

REMAN-HYD CYLINDER

580SM, 580SM+, Both SERIES 3 LOADER BACKHOE TIER 3 (NA), Backhoe Boom, 133 ID x 843 strk (2/08-)

1шт.

28

87711763C

CORE-HYD CYLINDER

Return Number

1шт.

29

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

31

142815A1

HYD TUBE,19.05 mm OD, 881, 157 mm Length

(Tube)

1шт.

32

D142787

SPACER

1шт.

33

214-14104

HOSE CLAMP,155.45mm - 177.8mm

1шт.

34

177634A1

HOSE,15.88mm ID x 440mm L

440 mm (17-3/8 in)

1шт.

35

142122A1

HYD TUBE,19.05 mm OD, 775 mm Length

(Tube)

1шт.

36

133605A1

CLAMP

1шт.

38

132930A1

SPACER

4шт.

39

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

40

87307476

CLAMP

1шт.

42

814-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 8.8

4шт.

43

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.
