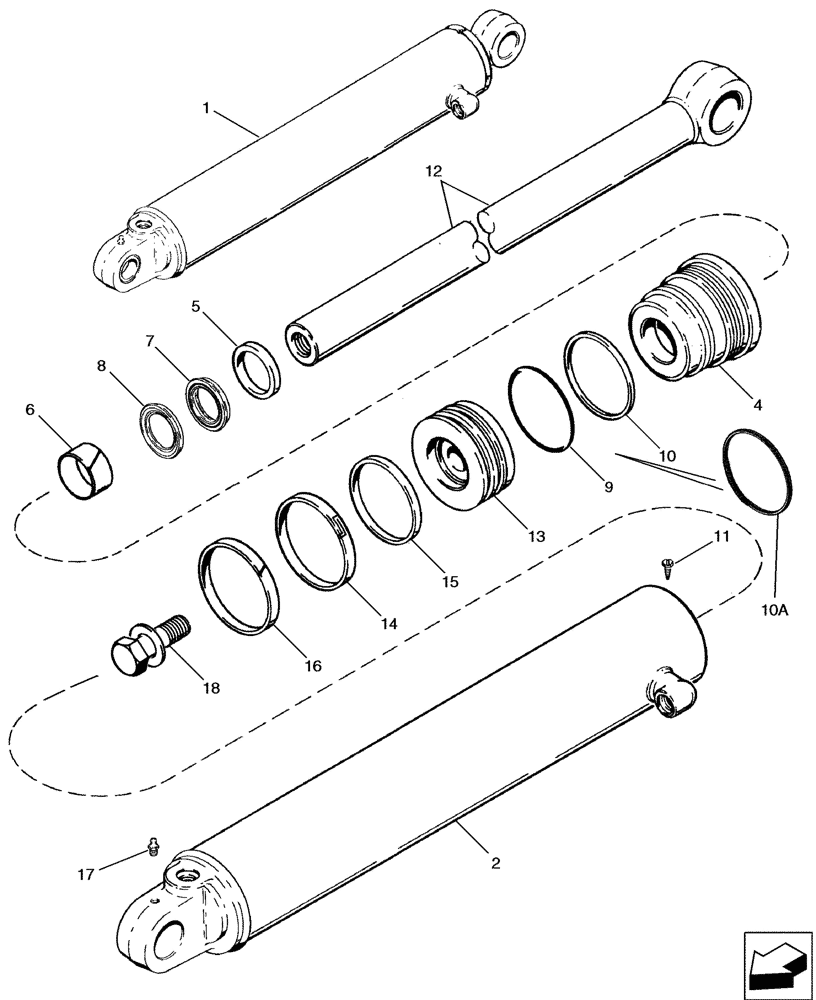

Запчасти Case 580SM (35.732.02[01]) - CYLINDER ASSY - BACKHOE STABILIZER (580SM) (35) - HYDRAULIC SYSTEMS

1

199720A1

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke

Backhoe Stabilizer; RH; 108 ID x 553 mm strk; Incl Ref 2- 18

1шт.

1

199720A1R

REMAN-HYD CYLINDER

Reman For New PN 199720A1

1шт.

1

199720A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

199721A1

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke

Backhoe Stabilizer; LH; 108 ID x 553 mm strk; Incl. Ref 2 - 18

1шт.

1

199721A1R

REMAN-HYD CYLINDER

Reman for New PN 199721A1

1шт.

1

199721A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

199722A1

BARREL,107.82 mm OD

RH

1шт.

2

199723A1

BARREL,107.82 mm OD

LH

1шт.

4

297284A1

GLAND

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

.

1542876C1

SEAL KIT,50.8mm Rod

Rod and Buffer; Incl Ref 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL Rod

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL Buffer

1шт.

9

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

10a

87615483

SEAL,100.05mm ID x 108.33mm OD x 4.85mm Thk

Static Head

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

12

123726A1

PISTON ROD

51 mm (2 in) dia

1шт.

13

123732A1

PISTON

1шт.

14

G110531

SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk

1шт.

15

G110529

RING

1шт.

16

G110530

RING,108mm OD, Ext

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

86982441

SPECIAL BOLT,Hex, 12, 1 1/4 x 3"

1,25 x 3,00 in, Includes Washer

1шт.

.

1543275C1

SEAL KIT

Incl Ref 5 - 10, 14 - 16, No Longer Used, For Service Order 84155085 Seal Kit

1шт.

.

84155085

SEAL KIT,Reapir, 108.0 x 50.8

Repair; Incl. Ref 5 - 8, 10A, 14 - 16

1шт.
