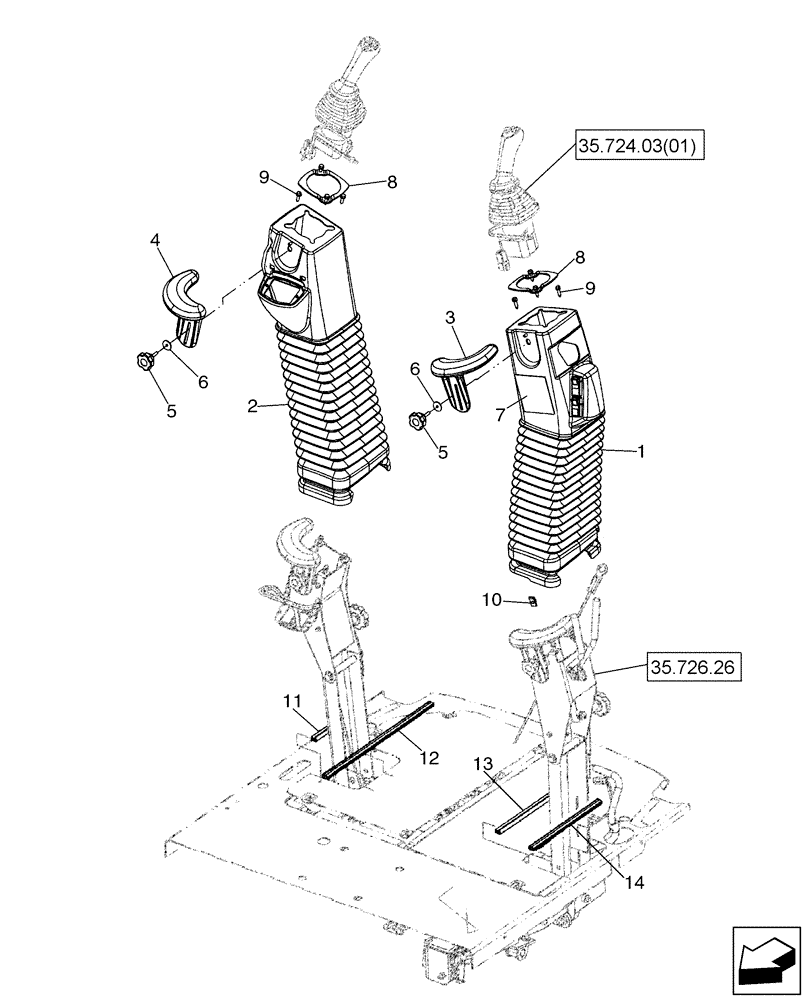

Запчасти Case 580SM (35.726.27) - BACKHOE CONTROL TOWER BOOTS AND SEALS, WITH PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

1

87309924

BOOT

1шт.

2

87309923

BOOT

1шт.

3

87437366

ARMREST

Wrist

1шт.

4

87437369

ARMREST

Wrist

1шт.

5

87437689

KNOB

2шт.

6

87310186

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6.6 ID x 25 OD x 1.6 mm thk, Stainless Steel

2шт.

7

87305413

WARNING DECAL

Pattern Selecting; With Backhoe/Excavator Black Silhouette on Decal; Not Illustrated

1шт.

8

87435372

RETAINING PLATE,83mm ID, 103mm L

2шт.

9

87608777

BOLT,Hex, M6 x 30, Cl. 10.9

With Washer, M6 x 30

8шт.

10

833-40406

NUT,M6, U

2шт.

11

87433008

RUBBER SEAL,183mm L

183 mm (7-1/4 in); Cut From 87438002

1шт.

12

87433006

RUBBER SEAL,428mm L

428 mm (16-7/8 in); Cut From 87438002

1шт.

13

87433005

RUBBER SEAL,335mm L

335 mm (13-3/16 in); Cut From 87438002

1шт.

14

87433007

RUBBER SEAL,275mm L

275 mm (10-7/8 in); Cut From 87438002

1шт.
