Запчасти Case 580SM (35.726.22[01]) - VALVE ASSY - BACKHOE CONTROL, 8 SPOOL (W/ EXT DIPPER, W/ AUX HYDS, W/ PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

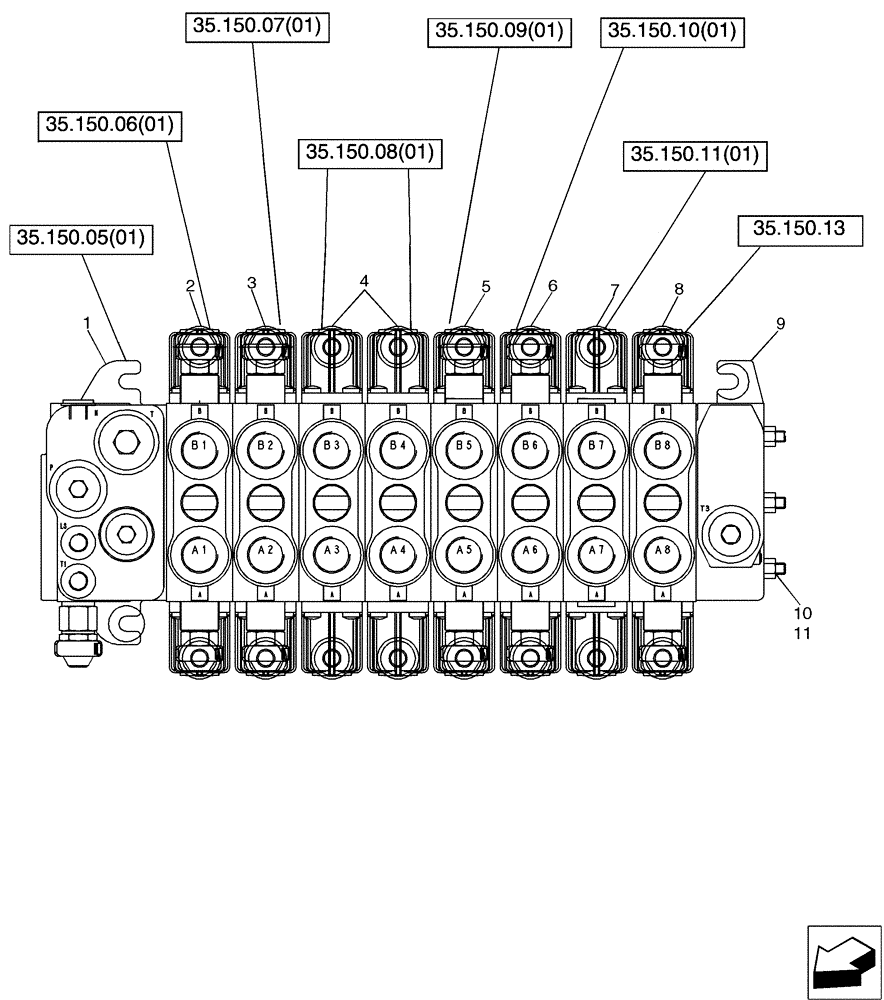

![Схема запчастей Case 580SM - (35.726.22[01]) - VALVE ASSY - BACKHOE CONTROL, 8 SPOOL (W/ EXT DIPPER, W/ AUX HYDS, W/ PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/935299.png)
35.150.07(01)
35.150.09(01)
35.150.08(01)
35.150.11(01)
35.150.05(01)
35.150.13
35.150.06(01)
35.150.10(01)
11
1
3
2
7
4
10
6
8
5
9
№
Артикул
Название
Примечание
Количество
87577349
CONTROL VALVE
Backhoe 8 Spool; Rexroth No. 08 403 271; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 11
1шт.
1
87441495
HYD VALVE SECTION
Inlet; With Orifice Threaded In LS Cavity
1шт.
2
85826339
HYD VALVE SECTION
Swing
1шт.
3
85826337
HYD VALVE SECTION
Boom
1шт.
4
87617618
HYD VALVE SECTION
Stabilizer; Without Flow Sharing to Provide Open Center Performance
2шт.
5
85826338
HYD VALVE SECTION
Dipper
1шт.
6
85826365
HYD VALVE SECTION
Bucket
1шт.
7
85826341
HYD VALVE SECTION
Extendable Dipper
1шт.
8
85826342
HYD VALVE SECTION
Auxiliary
1шт.
9
NSS
NOT SOLD SEPARAT
OUTLET Section
1шт.
10
87447477
SET OF PARTS
BOLT Tie
3шт.
11
280136
NUT,3/8"-16, G8
3шт.
Выбрано товаров: 12
