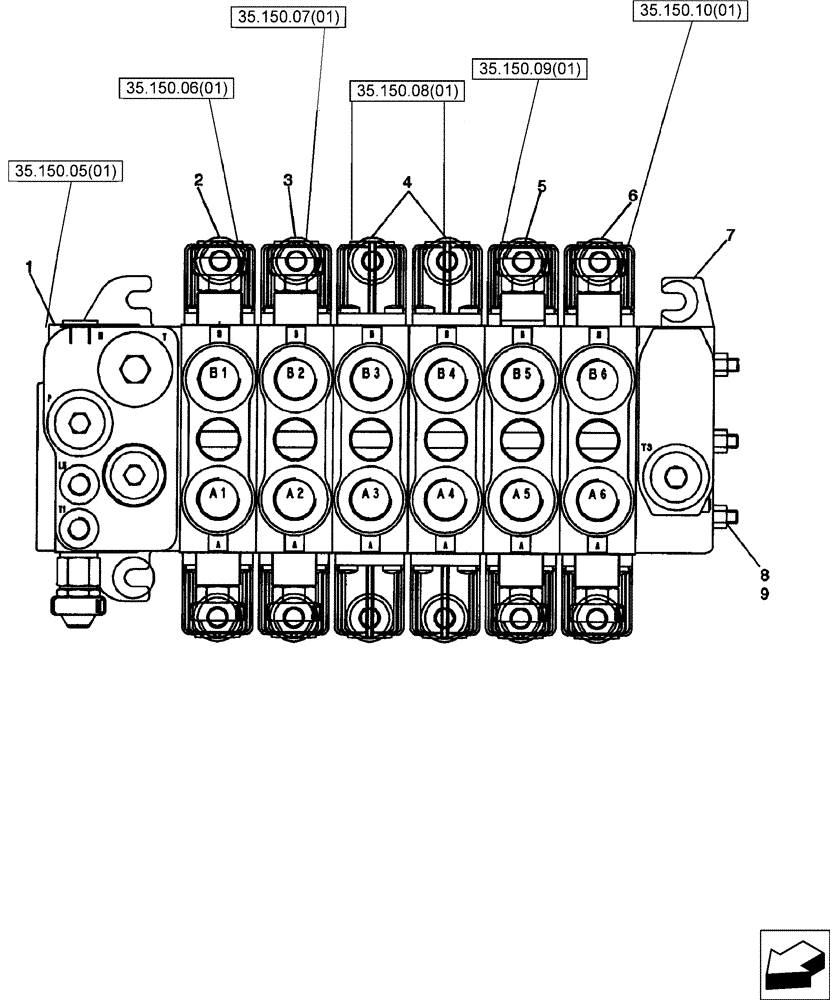

Запчасти Case 580SM (35.726.19) - VALVE ASSY - BACKHOE CONTROL, 6 SPOOL (W/O EXT DIPPER, W/ OR W/O AUX HYDS, W/ PILOT CONTROLS) (580SM) (35) - HYDRAULIC SYSTEMS
35.150.10(01)
35.150.09(01)
35.150.08(01)
35.150.07(01)
35.150.06(01)
35.150.05(01)
3
9
7
2
4
6
8
1
5
№
Артикул
Название
Примечание
Количество
87577343
CONTROL VALVE
Backhoe 6 Spool; Rexroth No. 08 403 273; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 9
1шт.
1
87441495
HYD VALVE SECTION
Inlet; With Orifice Threaded In LS Cavity
1шт.
2
85826339
HYD VALVE SECTION
Swing
1шт.
3
85826337
HYD VALVE SECTION
Boom
1шт.
4
87617618
HYD VALVE SECTION
Stabilizer; Without Flow Sharing to Provide Open Center Performance
2шт.
5
85826338
HYD VALVE SECTION
Dipper
1шт.
6
85826365
HYD VALVE SECTION
Bucket
1шт.
7
NSS
NOT SOLD SEPARAT
OUTLET
1шт.
8
NSS
NOT SOLD SEPARAT
BOLT Tie
3шт.
9
NSS
NOT SOLD SEPARAT
NUT
3шт.
Выбрано товаров: 10
