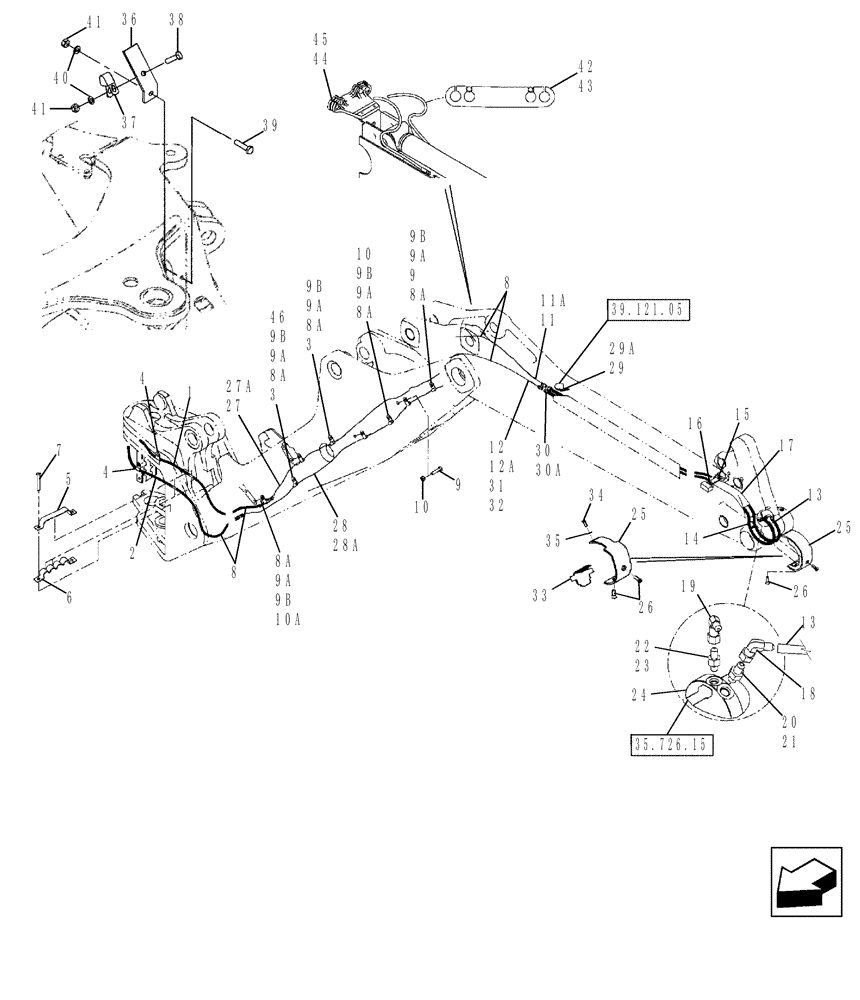

Запчасти Case 580SM (35.726.13) - HYDRAULICS - COUPLER, BACKHOE BUCKET, AT BOOM AND DIPPER (35) - HYDRAULIC SYSTEMS

REF

INSTRUCTION

At Boom And Dipper

1шт.

1

87448526

HYDRAULIC HOSE,6.35mm ID x 3125mm L

3125 mm (123-1/32 in); From Coupler Solenoid Valve

1шт.

2

87448527

HYDRAULIC HOSE,6.35mm ID x 3100mm L

3100 mm (122-1/16 in); From Coupler Solenoid Valve

1шт.

3

414415A1

CLAMP

3/8 ID

2-4шт.

4

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

5

385420A2

STRAP

At Swing Tower

1шт.

6

380692A1

CLAMP

1шт.

7

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

8a

409499A1

CLAMP

(10) Used With Extendable Dipper Models

8-10шт.

9

409471A1

BRACKET

Used With Extendable Dipper Models

2шт.

9a

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8-10шт.

9b

892-11008

LOCK WASHER,8mm ID

8-10шт.

10

409469A1

CLAMP

2шт.

10a

409470A1

CLAMP

2шт.

11

87433386

HYDRAULIC HOSE

1180 mm (46-1/2 in); Standard Dipper

1шт.

11a

87433390

HYDRAULIC HOSE,6.35mm ID x 2415mm L

2415 mm (95-1/8 in); Extendable Dipper

1шт.

12

87433387

HYDRAULIC HOSE

1180 mm (46-1/2 in); Standard Dipper

1шт.

12a

87433389

HYDRAULIC HOSE,6.35mm ID x 2415mm L

2415 mm (95-1/8 in); Extendable Dipper

1шт.

13

87418552

HOSE ASSY.,4.78mm ID x 1080mm L, SAE 100R17

1080 mm (42-9/16 in); To Coupler Cylinder

1шт.

14

87418553

HYDRAULIC HOSE,4.78mm ID x 1120mm L, SAE 100R17

1120 mm (44-1/8 in); To Coupler Cylinder

1шт.

15

87418551

CLAMP

1шт.

16

407975A1

HEX SOC SCREW,FLAT, M8 x 1.25 x 12mm, Cl 10.9

M8 x 16

2шт.

17

87448668

SLEEVE

560 mm (22-3/64 in)

1шт.

18

402855A1

90 ELBOW

Attaches To Ref 13 Hose

1шт.

19

402854A1

90 ELBOW

Attaches To Ref 14 Hose

1шт.

20

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref 21

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

22

218-5052

HYD CONNECTOR,3/8"-24, 37 Degree x 3/8"-24

Incl. Ref 23

1шт.

23

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

24

87615847

HYDRAULIC CYLINDER

Backhoe Bucket Coupler

1шт.

25

402940A2

GUARD

1шт.

24

87615847C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

26

402361A3

HEX SOC SCREW,FLAT, M10 x 1.5 x 35mm, Cl 10.9

2шт.

27

87423343

HYD TUBE

Standard Dipper; Left-Hand

1шт.

27a

87411722

HYD TUBE

Extendable Dipper; Left-Hand

1шт.

28

87423345

HYD TUBE

Standard Dipper; Right-Hand

1шт.

28a

87411720

HYD TUBE

Extendable Dipper; Right-Hand

1шт.

29

406172A1

TUBE

Standard Dipper

1шт.

29a

403840A1

TUBE

Extendable Dipper

1шт.

30

406168A1

TUBE

Standard Dipper

1шт.

30a

403400A1

TUBE

Extendable Dipper

1шт.

31

407804A1

SLEEVE

600 mm (23-5/8 in); Standard Dipper

1шт.

31

87441372

SLEEVE

2044 mm (80-1/2 in); Extendable Dipper

2шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

33

409691A2

GUARD

1шт.

34

607-8020

BOLT,Hex, M8 x 20mm, Cl 10.9

2шт.

35

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

36

413778A1

BRACKET

1шт.

37

D49498

CLAMP

1шт.

38

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

39

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

40

892-11010

LOCK WASHER,M10

2шт.

41

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

42

407745A1

HOSE CLAMP

Extendable Dipper; Models With Hydraulic Coupler

1шт.

43

407746A1

HOSE CLAMP

Extendable Dipper; Models With Hydraulic Coupler and Auxiliary Hydraulics

1шт.

44

407734A1

SUPPORT

Extendable Dipper; Models With Hydraulic Coupler

1шт.

45

407735A1

SUPPORT

Extendable Dipper; Models With Hydraulic Coupler and Auxiliary Hydraulics

1шт.

46

87333648

CLAMP

1шт.
