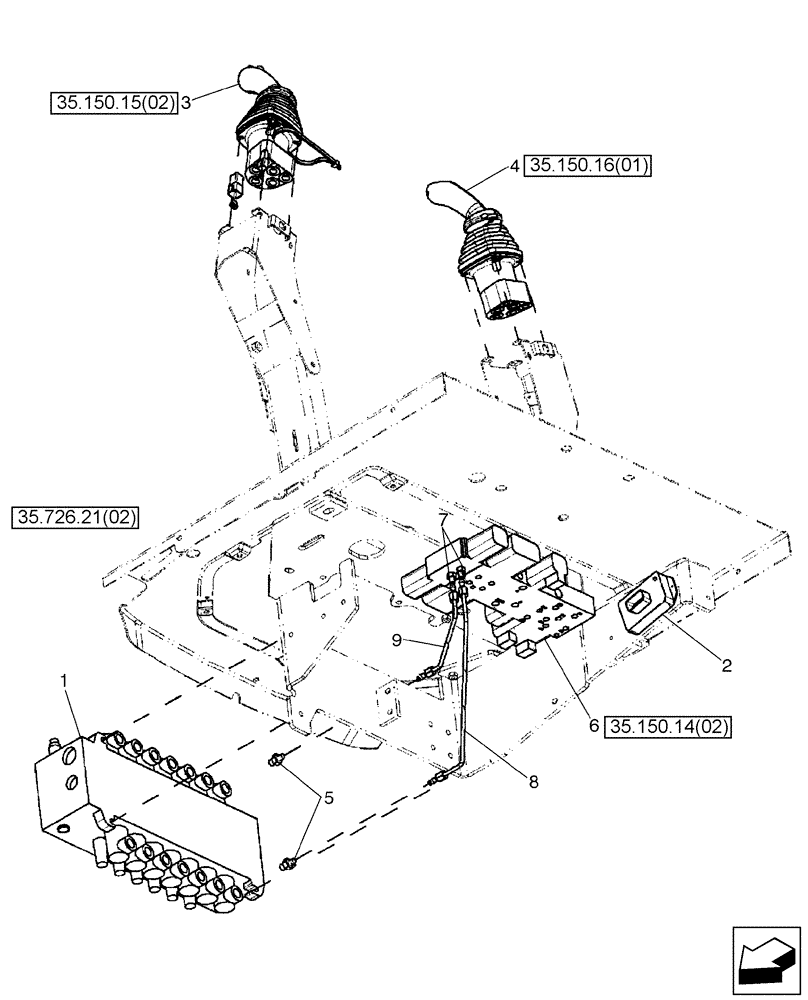

Запчасти Case 580SM (35.726.06) - HYDRAULICS - VALVE, PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/O EXT DIPPER, W/ AUX HYDS) (580SM) (35) - HYDRAULIC SYSTEMS

REF

INSTRUCTION

Seven Spool Valve Without Extendable Dipper; With Auxiliary Hydraulics; With Auto-Up; With Bi-Directional

1шт.

1

87577348

CONTROL VALVE

Backhoe, 7 Spool; Rexroth No. 08 403 272

1шт.

2

87746674

MODULE

Box, Pilot Control Power Supply Module

1шт.

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

2шт.

3

87685952

JOYSTICK

LH; With Horn and Bi-Directional Buttons

1шт.

4

87685956

JOYSTICK

RH

1шт.

5

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 237-6006 O-Ring

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

85827471

HYDRAULIC VALVE

Pressure Reducing, 3 Spool

1шт.

7

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 237-6004 O-Ring

2шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

87438012

HYD TUBE

To Lower Auxiliary Port

1шт.

9

87438015

HYD TUBE

To Upper Auxiliary Port

1шт.
