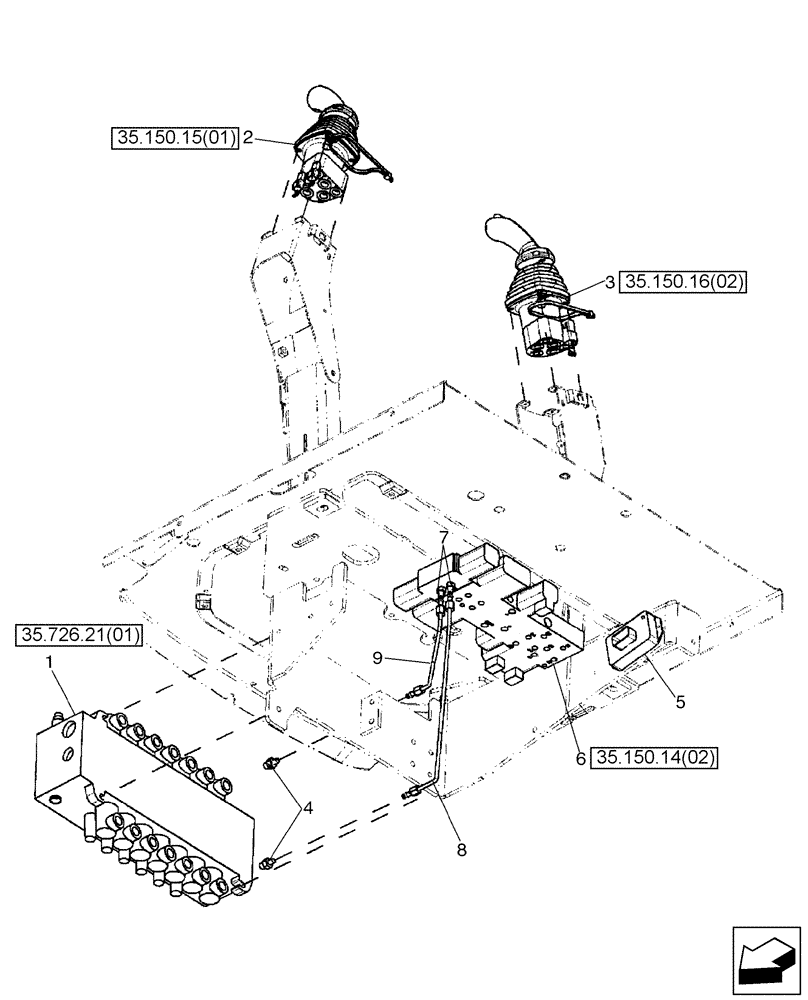

Запчасти Case 580SM (35.726.05[01]) - HYDRAULICS - VALVE, PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/ EXT DIPPER, W/ AUX HYDS) (580SM) (35) - HYDRAULIC SYSTEMS

REF

INSTRUCTION

Seven Spool Valve With Extendable Dipper; With Auxiliary Hydraulics; With Auto-Up; With Uni-Directional

1шт.

1

87577346

CONTROL VALVE

Backhoe, 7 Spool; Rexroth No. 08 402 663

1шт.

2

87685953

JOYSTICK

LH; With Horn and Uni-Directional Buttons

1шт.

3

87685957

JOYSTICK

RH: With RH EXT Dipper and OTD

1шт.

4

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 237-6006 O-Ring

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

87746673

MODULE

Box, Pilot Control Power Supply

1шт.

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

2шт.

6

85827471

HYDRAULIC VALVE

Pressure Reducing, 3 Spool

1шт.

7

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 237-6004 O-Ring

2шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

87437633

HYD TUBE

To Lower Extendable Dipper Port

1шт.

B Port White/Blue to E

1шт.

9

87437635

HYD TUBE

To Upper Extendable Dipper Port

1шт.

A Port White to F

1шт.
