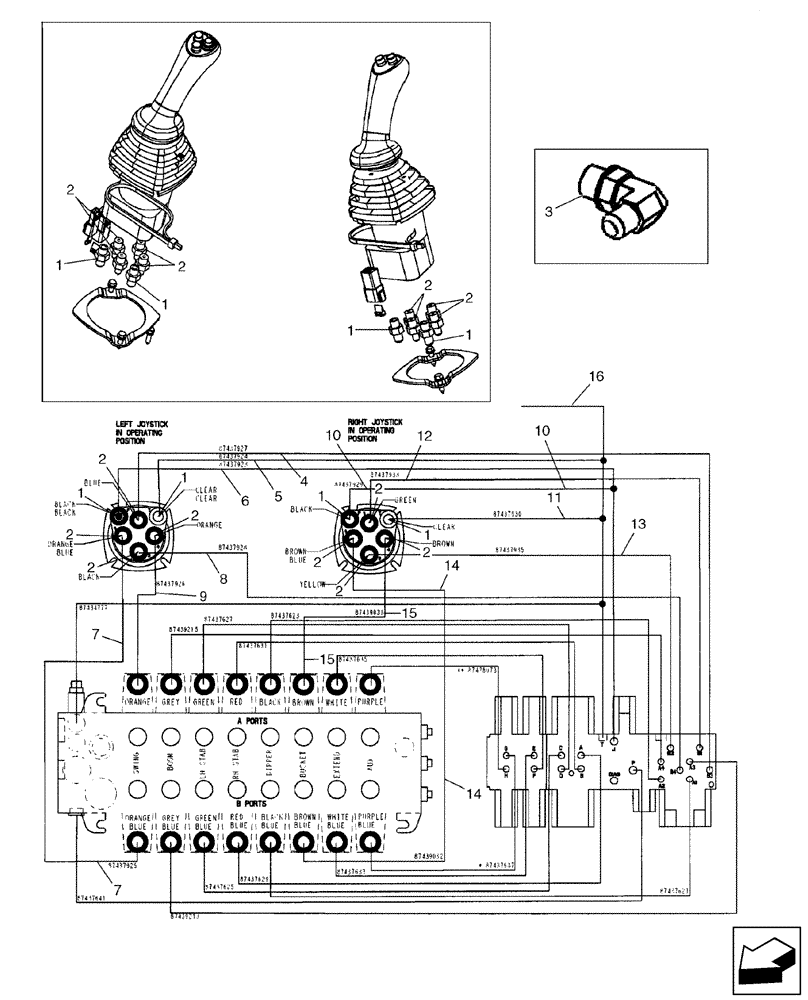

Запчасти Case 580SM (35.204.20) - HYDRAULICS - PILOT CONTROL JOYSTICKS (35) - HYDRAULIC SYSTEMS

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 237-6006 O-Ring

4шт.

2

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 237-6006 O-Ring

8шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 237-6006; Installs in Hydraulic Tank for Pilot Return

1шт.

4

87437927

HYDRAULIC HOSE,6.4mm ID x 1295mm L

1295 mm (51 in); LH Joystick No. 1 to Selector Valve B3

1шт.

5

87437924

HYDRAULIC HOSE,9.5mm ID x 1000mm L

1000 mm (39-3/8 in); LH Joystick Tank to Pressure Reducing Valve T

1шт.

6

87437923

HYDRAULIC HOSE,9.5mm ID x 1035mm L

1035 mm (40-3/4 in); LH Joystick Pressure to Pressure Reducing Valve J

1шт.

7

87437925

HYDRAULIC HOSE,6.4mm ID x 1075mm L

1075 mm (42-3/8 in); LH Joystick No. 2 to Swing Port B

1шт.

8

87437928

HYDRAULIC HOSE,6.4mm ID x 1270mm L

1270 mm (50 in); LH Joystick No. 3 to Selector Valve B4

1шт.

399004A1

HOSE PROTECTION,38.90 mm ID x 270.00 mm

Used With Ref 4 - 8

1шт.

9

87437926

HYDRAULIC HOSE,6.4mm ID x 825mm L

825 mm (32-1/2 in); LH Joystick No. 4 to Swing Port A

1шт.

10

87437929

HYDRAULIC HOSE,9.5mm ID x 1105mm L

1105 mm (43-1/2 in); RH Joystick Pressure to Pressure Reducing Valve J

1шт.

11

87437930

HYDRAULIC HOSE,9.5mm ID x 1345mm L

1345 mm (53 in); RH Joystick Tank to Pressure Reducing Valve T

1шт.

191703A1

HOSE PROTECTION,28mm ID x 34mm OD x 400mm L

Hose Guard, 28 ID x 400 mm long; Used With Ref 10, 11

1шт.

12

87437933

HYDRAULIC HOSE,6.4mm ID x 1185mm L

1185 mm (46-11/16 in); RH Joystick No. 1 to Selector Valve B1

1шт.

13

87437935

HYDRAULIC HOSE,6.4mm ID x 1175mm L

1175 mm (46-5/16 in); RH Joystick No. 3 to Selector Valve B2

1шт.

14

87439032

HYDRAULIC HOSE,6.4mm ID x 1090mm L

1090 mm (42-15/16 in); RH Joystick No. 2 to Bucket Port B

1шт.

15

87439033

HYDRAULIC HOSE,6.4mm ID x 915mm L

915 mm (36-1/32 in); RH Joystick No. 4 to Bucket Port A

1шт.

191703A1

HOSE PROTECTION,28mm ID x 34mm OD x 400mm L

Hose Guard, 28 ID x 400 mm long; Used With Ref 12 - 15

1шт.

16

87452405

HYDRAULIC HOSE,3/8" mm ID x 1520mm L

1520 mm (59-7/8 in); Pressure Reducing Valve T to Tank; Replaces 87435073

1шт.

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

HOSE GUARD, 19 ID x 450 mm long; Used With Ref 16

1шт.

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.
