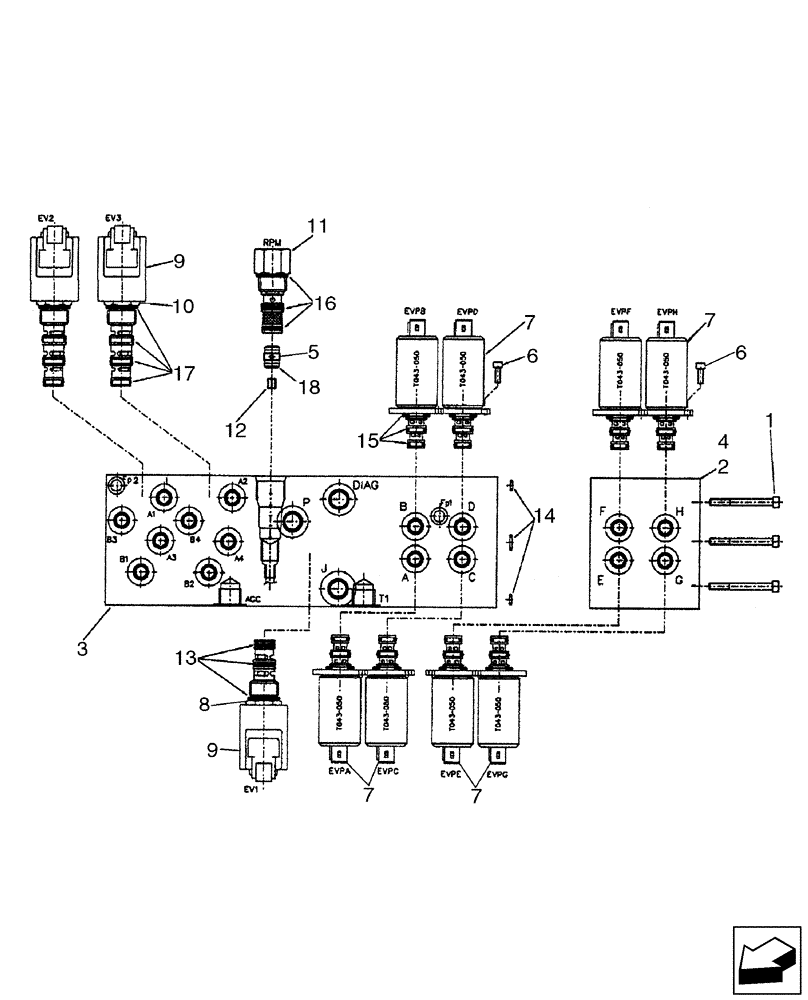

Запчасти Case 580SM (35.150.14[03]) - VALVE ASSY, PRESSURE REDUCING (4 SPOOL) (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

87434621

CONTROL VALVE

Pressure Reducing, Four Spool, Pilot Controls; Incl. Ref 1 - 18

1шт.

1

85828061

SCREW,M5 x 80mm

M5 x 80

3шт.

2

85828048

MANIFOLD VALVE

Assembly, 2-Function Add-on Manifold, Incl 4, 7 (4 ea)

1шт.

3

85828015

BLOCK

Manifold

1шт.

4

85828054

BLOCK

Manifold

1шт.

5

85827992

CHECK VALVE

Incl. 18

1шт.

6

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

16шт.

7

85827993

SOLENOID VALVE

Pressure Reducing; Incl. 15

8шт.

8

85827994

SOLENOID VALVE

Cartridge, 3 Way, 2 Position; Incl. Ref 9, 13

1шт.

9

85827995

COIL

With Diode

3шт.

10

85827996

SOLENOID VALVE,2 Section

Cartridge, 4 Way, 2 Position; Incl. Ref 9, 17

2шт.

11

85827997

VALVE

Mechanical Pressure Reducing, With Fixed Setting; Incl. 16

1шт.

12

85828005

ORIFICE

1.8 mm

1шт.

13

85827998

SEAL KIT

1шт.

14

85827999

SEAL KIT

1шт.

15

85828000

SEAL KIT

8шт.

16

85828001

SEAL KIT

1шт.

17

85828002

SEAL KIT

2шт.

18

85828003

O-RING,1mm Thk x 9mm ID

1шт.
