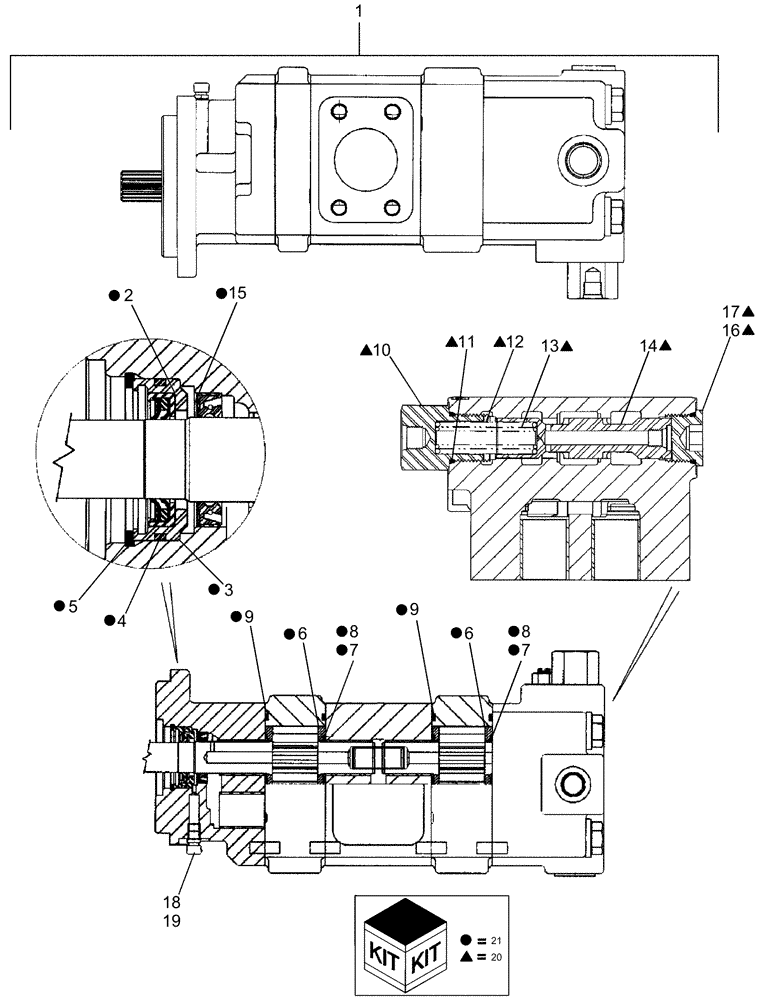

Запчасти Case 580SM (35.105.01) - PUMP, EQUIPMENT HYDRAULIC (580SM) (35) - HYDRAULIC SYSTEMS

1

87434673

HYDRAULIC PUMP,20.8 CC

Tandem; Component Parts Not Serviced Separately, Except for 87434072 and 87438045 Service Kits, Ref 1 - 17, See Below

1шт.

1

87434673R

REMAN-HYD PUMP

REMANUFACTURED HYD PUMP

1шт.

1

87434673C

CORE-HYDRAULIC PUMP

Return Number, HYD PUMP

1шт.

1

87434072

HYD PUMP REPAIR KIT

Dual Section; Incl. Ref 2 - 9, 15

1шт.

2

87434075

SEAL

Lip

1шт.

3

87434076

SEAL RETAINER

1шт.

4

87434077

O-RING

SEALRING

1шт.

5

102-23206

SNAP RING,#206, 2.190", Int, Spiral

1шт.

6

N13582

THRUST PLATE

4шт.

7

144173A1

SEAL

4шт.

8

178051A1

BACK-UP RING

4шт.

9

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

Gear Housing Gasket

4шт.

10

87437899

PLUG

Load Sense

1шт.

11

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

12

87437905

SPRING-CHECK

Spool, 100 psi

1шт.

13

87437906

SPRING-CHECK

Spool, 50 psi

1шт.

14

87437914

SPOOL

Priority Valve

1шт.

15

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

Double Lip

1шт.

16

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Incl 17

1шт.

17

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

18

1978259C1

VALVE POPPET

1шт.

19

S300421

RESTRICTOR

1шт.

20

87438045

HYD PUMP REPAIR KIT

Priority Valve Service Kit, Single

1шт.

21

87434072

HYD PUMP REPAIR KIT

Pump Service Kit, Dual Section

1шт.
