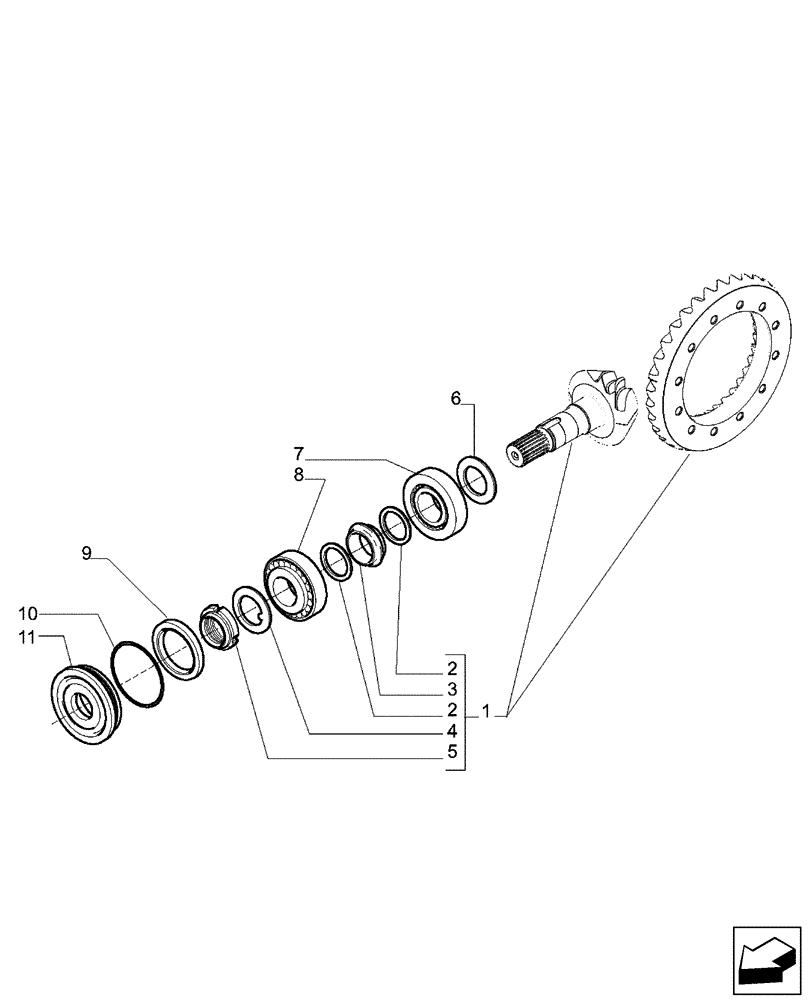

Запчасти Case 580SM (27.106.02[01]) - 87395372 AXLE, REAR DRIVE - RING AND PINION (580SM) (27) - REAR AXLE SYSTEM

87395372

REAR AXLE

580SM Models, Incl. Ref 1 - 11

1шт.

87395372R

REMAN-REAR AXLE

580SM, 580SM+ UT58P305 all SERIES 3 LOADER BACKHOE TIER 3 (NA) (2/08-)

1шт.

87395372C

CORE-REAR AXLE

Return Number

1шт.

1

87708393

GEAR SET

Bevel, 14/35

1шт.

2

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

Elastic

2шт.

3

175957A1

SPACER

1шт.

4

N7536

WASHER,41mm ID x 62mm OD x 2mm Thk

Lock

1шт.

5

K261014

RING NUT,M40 x 1.5

Ring; M40 x 105

2шт.

6

190506A1

SHIM,2.5mm Thk

(0.098")

1шт.

6

190508A1

SHIM,2.6mm Thk

(0.102")

1шт.

6

190509A1

SHIM,2.7mm Thk

(0.106")

1шт.

6

190510A1

SHIM,2.8mm Thk

(0.110")

1шт.

6

190511A1

SHIM,2.9mm Thk

(0.114")

1шт.

6

190512A1

SHIM,3.0mm Thk

(0.118")

1шт.

6

190513A1

SHIM,3.1mm Thk

(0.122")

1шт.

6

190514A1

SHIM,3.2mm Thk

(0.125")

1шт.

6

190515A1

SHIM,3.3mm Thk

(0.129")

1шт.

6

190516A1

SHIM,3.4mm Thk

(0.133")

1шт.

7

P1139855X

BALL BEARING

Tapered

1шт.

8

K395090

TAPERED BEARING,40mm ID x 90mm OD

1шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

Ring

1шт.

10

445720A1

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

11

128570A1

FLANGE

Seal

1шт.
