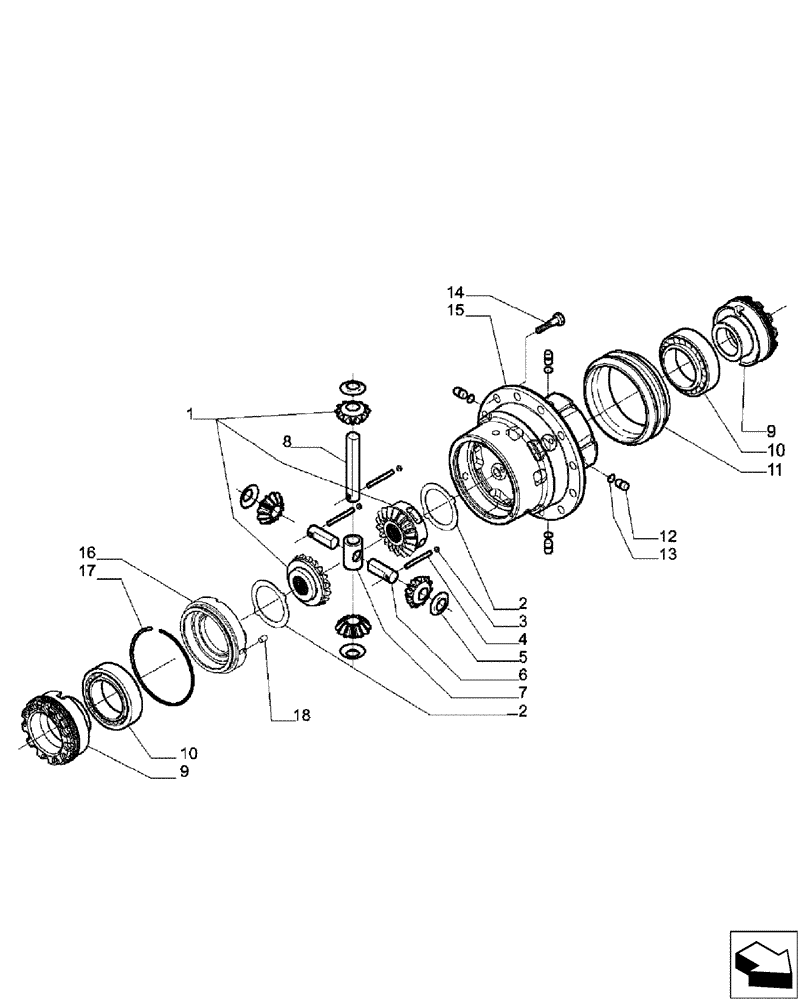

Запчасти Case 580SM (27.106.01[01]) - 87395372 AXLE, REAR DRIVE - DIFFERENTIAL (580SM) (27) - REAR AXLE SYSTEM

87395372

REAR AXLE

580SM Models, Incl. Ref 1 - 18

1шт.

87395372R

REMAN-REAR AXLE

580SM, 580SM+ UT58P305 all SERIES 3 LOADER BACKHOE TIER 3 (NA) (2/08-)

1шт.

87395372C

CORE-REAR AXLE

Return Number

1шт.

1

87708394

SERVICE KIT

Incl 2 - 8

1шт.

2

87708395

DRIVE PLATE

Differential

2шт.

3

D142898

PLUG,M10 x 1

3шт.

4

87708396

PIN,8mm OD x 45mm L

2шт.

5

E135777

WASHER

Thrust

4шт.

6

87708397

AXLE PIN

Differential

2шт.

7

87708398

SPIDER

Gear

1шт.

8

87708399

AXLE PIN

Differential

1шт.

9

87708400

RING NUT

M104 x 1.5

2шт.

10

E135785

BEARING

2шт.

11

87708401

SLEEVE

1шт.

12

292207A1

PIN

4шт.

13

292208A1

O-RING

4шт.

14

87708402

BOLT

M12 x 25

12шт.

15

87708403

HOUSING

Differential

1шт.

16

87708408

HOUSING

Differential Housing

1шт.

17

87708409

CIRCLIP

Differential

1шт.

18

87708411

PIN,8mm OD x 12mm L

1шт.
