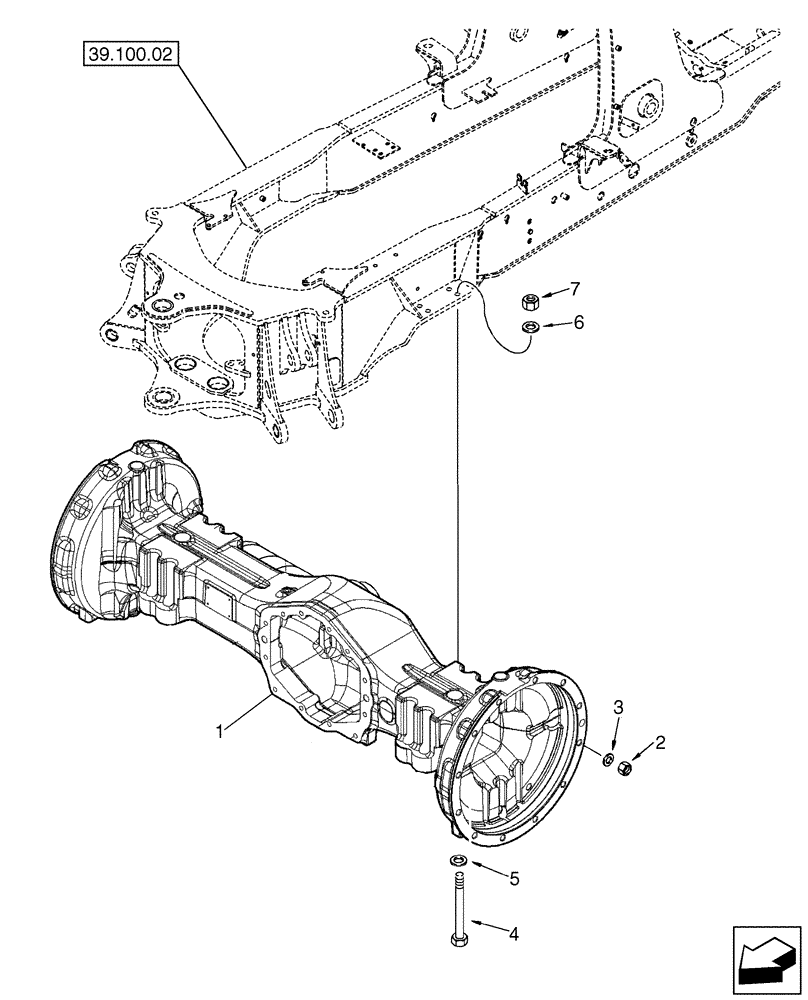

Запчасти Case 580SM (27.100.08) - AXLE, REAR DRIVE - MOUNTING (27) - REAR AXLE SYSTEM

1

87395372

REAR AXLE

580SM Models

1шт.

1

87395372R

REMAN-REAR AXLE

580SM SERIES 3 LOADER BACKHOE TIER 3 (NA) (2/08-)

1шт.

1

87395372C

CORE-REAR AXLE

Return Number

1шт.

2

D138492

NUT,M22 X 1.5 - 6 HVY HEX

20шт.

3

87313544

WASHER,22mm ID x 44mm OD x 5 mm Thk

Hardened

20шт.

4

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

8шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

6

87618533

WASHER,21mm ID x 46mm OD x 6.4mm Thk

8шт.

7

829-1420

NUT,M20, Cl 10

8шт.
