Запчасти Case 580SM (25.310.01) - AXLE, FRONT DRIVE - PLANETARY (25) - FRONT AXLE SYSTEM

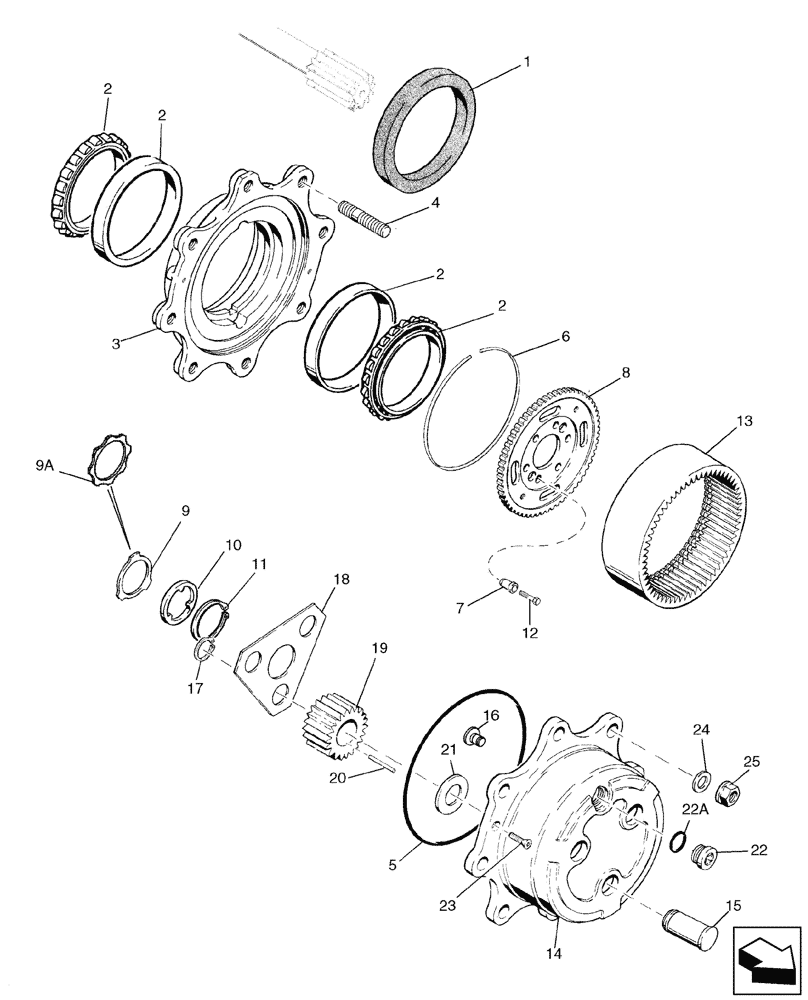

Схема запчастей Case 580SM - (25.310.01) - AXLE, FRONT DRIVE - PLANETARY (25) - FRONT AXLE SYSTEM
4
17
20
5
22a
15
2
12
3
7
19
8
16
23
2
11
2
2
6
21
22
9
14
9a
24
1
25
18
13
10

Артикул

Название

Примечание

Количество

87395365

4WD AXLE ASSY

Front, 580SM Models With Or Without Powershift Transmission, Incl. Ref 1 - 23

1шт.

87395365R

REMAN-AXLE DIFFERENT

580SM SERIES 3 LOADER BACKHOE TIER 3 (2/08-)

1шт.

87395365C

CORE-AXLE, MFD

Return Number

1шт.

87400175

4WD AXLE ASSY

Front, 580SM+ Models With Or Without Powershift Transmission, Incl. Ref 1 - 23

1шт.

1

311569A1

OIL SEAL,130mm ID x 160mm OD x 14mm Thk

Triple Lip

2шт.

2

1966169C1

BEARING CONE,95 mm ID x 135 mm OD x 20 mm

4шт.

3

144466A1

HUB

Incl. Ref 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

HUB

1шт.

4

100556A1

STUD

8шт.

5

100552A1

O-RING,215.57mm ID x 220.81mm OD x 2.62mm Thk

2шт.

6

100559A1

SPECIAL RING

2шт.

7

116426A1

BUSHING

87395365 580SM Axle

12шт.

7a

116426A1

BUSHING

87400175 580SM+ Axle

16шт.

8

116427A1

GEAR

CARRIER, Ring Gear; 87395365 580SM Axle

2шт.

8

313259A1

GEAR

CARRIER, Ring Gear; 87400175 580SM+ Axle

2шт.

9

190684A1

THRUST WASHER

87395365 580SM Axle

2шт.

9a

87710153

WASHER

Thrust; 87400175 580SM+ Axle

2шт.

10

190682A1

THRUST WASHER

2шт.

11

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

2шт.

12

116425A1

BOLT

87395365 580SM Axle

12шт.

12a

116425A1

BOLT

87400175 580SM+ Axle

16шт.

13

100561A1

GEAR

Ring

2шт.

14

100554A1

PINION CARRIER

PLANETARY, Includes 100553A1, Ref 14 - 22A

2шт.

14

100553A1

HOUSING ASSY.

Carrier, Incl. Ref 14 - 16

2шт.

14

NSS

NOT SOLD SEPARAT

Carrier

1шт.

15

NSS

NOT SOLD SEPARAT

Shaft, Pinion

3шт.

16

K395093

HEADED PIN,12mm OD x 15mm L

Lock

1шт.

17

800-1134

SNAP RING,M34, Ext

6шт.

18

100555A1

LARGE PLATE

PLATE, LARGE Retainer

2шт.

19

K395114

GEAR

Sun - Not Shown

2шт.

19

100562A1

GEAR, PLANETARY

Pinion

6шт.

20

114295A1

10 NEEDLE BRG KIT

9шт.

21

K395091

THRUST WASHER

6шт.

22

100557A1

PLUG, DRAIN,M30 x 2

Incl. Ref 22A

2шт.

22a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

23

K395082

SCREW,M8 x 20mm

4шт.

24

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

Not Included In Assembly, Purchase Separately

16шт.

25

100092

WHEEL NUT,M18 x 1.5, Cl 8

Not Included In Assembly, Purchase Separately

16шт.
