(25.102.03[01]) - 87395365 AXLE, FRONT DRIVE - DIFFERENTIAL (580SM)

Запчасти Case 580SM (25.102.03[01]) - 87395365 AXLE, FRONT DRIVE - DIFFERENTIAL (580SM) (25) - FRONT AXLE SYSTEM

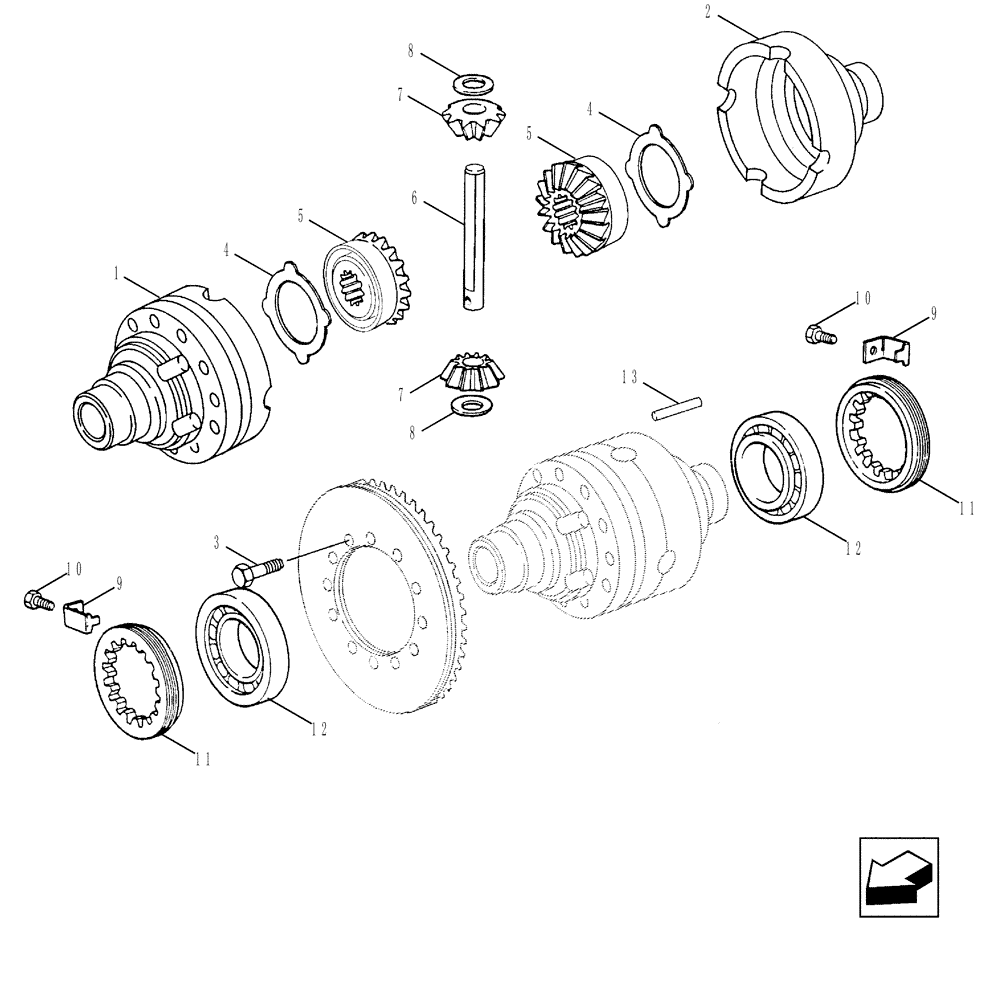

Схема запчастей Case 580SM - (25.102.03[01]) - 87395365 AXLE, FRONT DRIVE - DIFFERENTIAL (580SM) (25) - FRONT AXLE SYSTEM
1
3
5
7
4
12
13
10
4
11
11
5
12
9
2
8
6
7
10
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87395365

4WD AXLE ASSY

Front, 580SM Models With Or Without Powershift Transmission, Incl. Ref 1 - 18; Also Includes Parts On Figures 06-02 - 06-08 Except 06-07A

1шт.

87395365R

REMAN-AXLE DIFFERENT

580SM SERIES 3 LOADER BACKHOE TIER 3 (2/08-)

1шт.

87395365C

CORE-AXLE, MFD

Return Number

1шт.

294933A1

HOUSING

Differential, Incl. Ref 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Flange Half

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Plain Half

1шт.

3

5194194

BOLT,Hex, M10 x 75

12шт.

4

1967003C1

THRUST WASHER

2шт.

5

231397A1

SERVICE KIT

Differential Gear Set, Service Replacement, Incl. Ref 5 - 8

1шт.

5

N14407

GEAR

Side, No Longer Available, Order 231397A1 Differential Gear Set Kit

2шт.

6

K395087

SHAFT

Pinion Gear, No Longer Available, Order 231397A1 Differential Gear Set Kit

1шт.

7

N14408

SUN GEAR

Pinion Gear, No Longer Available, Order 231397A1 Differential Gear Set Kit

2шт.

8

K395075

THRUST WASHER

No Longer Available, Order 231397A1 Differential Gear Set Kit

2шт.

9

1966153C1

LOCKING PLATE

Bracket

2шт.

10

112486A1

BOLT,Hex, M6 x 12

2шт.

11

1966559C1

NUT

2шт.

12

K395027

TAPERED BEARING

2шт.

13

K395086

PIN

Dowel, No Longer Available, Order 231397A1 Differential Gear Set Kit

1шт.
