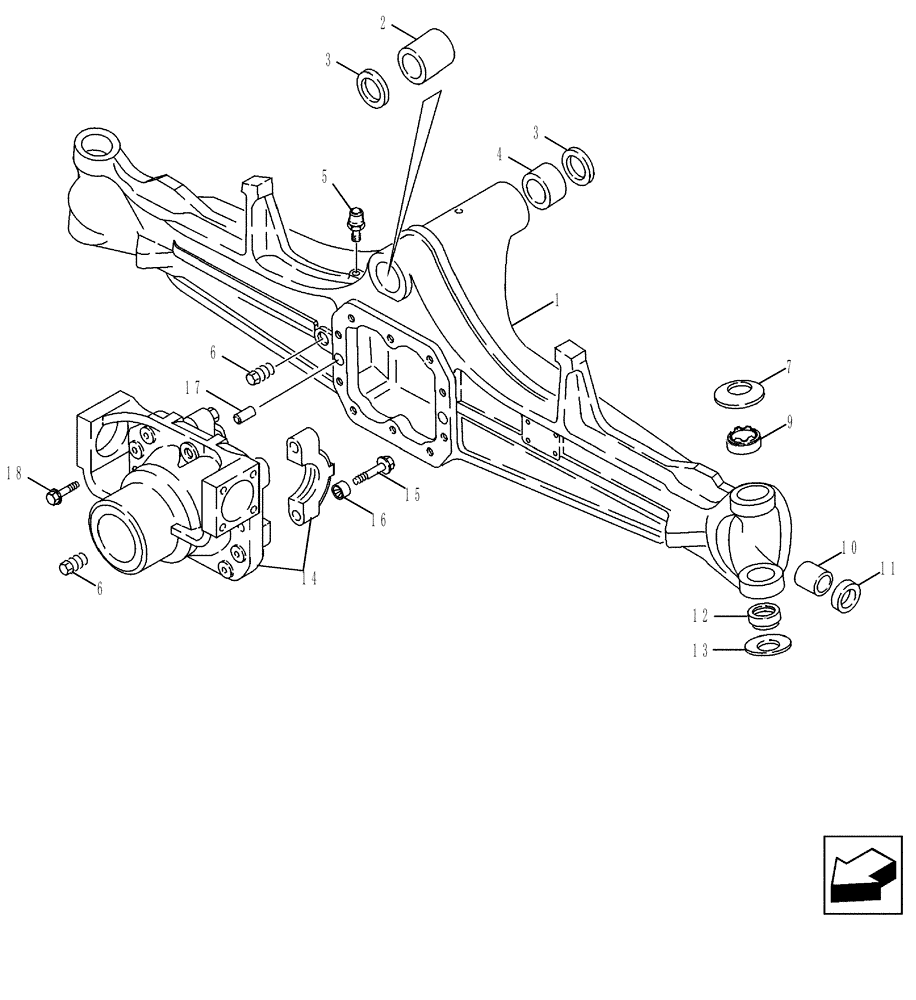

Запчасти Case 580SM (25.100.08) - AXLE, FRONT DRIVE - HOUSING (25) - FRONT AXLE SYSTEM

87395365

4WD AXLE ASSY

Front, 580SM Models With Or Without Powershift Transmission, Incl. Ref 1 - 18

1шт.

87395365R

REMAN-AXLE DIFFERENT

1шт.

87395365C

CORE-AXLE, MFD

Return Number

1шт.

1

427107A1

AXLE HOUSING

87395365 580SM Axle

1шт.

2

D149725

BUSHING,59.75 OD x 54mm L

1шт.

3

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

2шт.

4

D149726

BUSHING,6.20mm ID x 9.60mm OD x 6mm L

1шт.

5

1966149C2

BREATHER

1шт.

6

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

7

122270A1

BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th

Belleville; 87395365 580SM Axle

2шт.

9

87400286

BUSHING

87395365 580SM Axle

2шт.

10

1966186C1

BUSHING

87395365 580SM Axle

2шт.

11

87710155

SEALING RING

SEALRING 87395365 580SM Axle

2шт.

12

100520A1

SPHERICAL BEARING,25mm ID x 47mm OD x 15mm W

Bushing, 87395365 580SM Axle

2шт.

13

122268A1

BELLEVILLE WASHER

Belleville; 87395365 580SM Axle

2шт.

87710131

SUPPORT

Differential Carrier; Incl. Ref 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

CARRIER

1шт.

15

S301065

BOLT,Hex Flg, M14 x 75, 12.9

4шт.

16

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

4шт.

17

1966138C1

DOWEL

2шт.

18

5194169

BOLT,Hex Flg, M12 x 33, 12.9

10шт.
