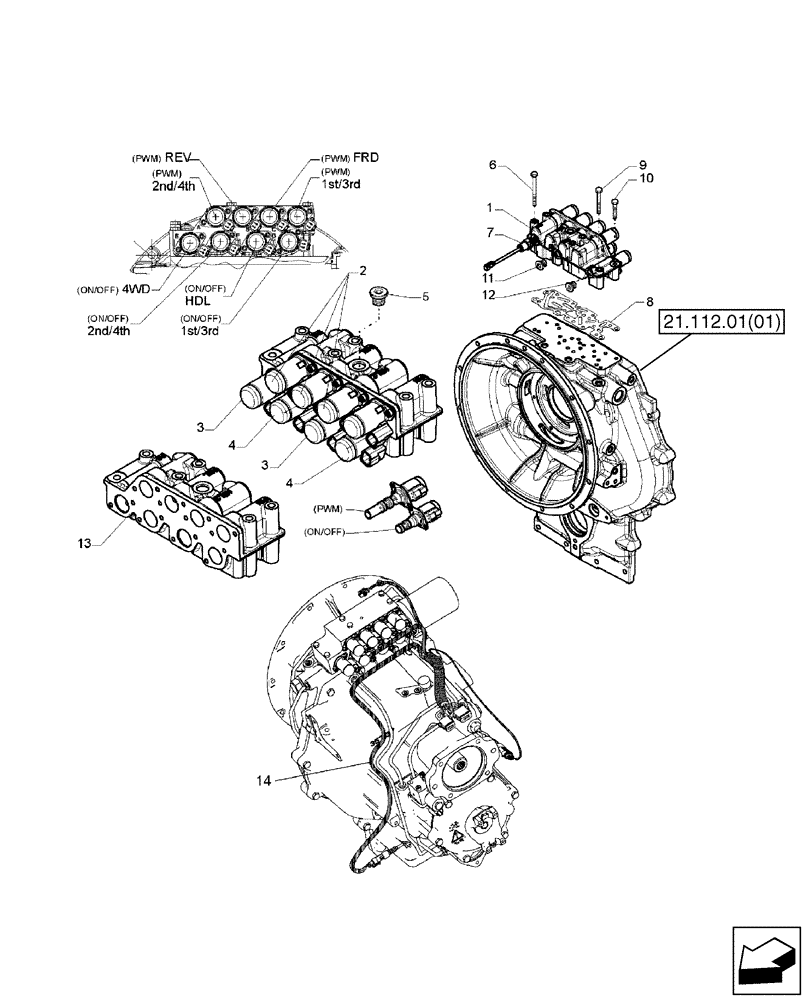

Запчасти Case 580SM (21.155.16) - TRANSMISSION, 4WD POWERSHIFT (580SM/SM+) - VALVE, CONTROL (21) - TRANSMISSION

87567534

TRANSMISSION

Powershift, Four Wheel Drive, Incl. Ref 1 - 13

1шт.

1

87705566

CONTROL VALVE

Incl 2 - 4, 13

1шт.

2

87705567

SOLENOID VALVE

PWM (Pulse Width Modulation)

4шт.

3

87705568

SOLENOID VALVE

On/Off; 4WD, HDL

2шт.

4

87705569

SOLENOID VALVE

On/Off; 2nd/4th, 1st/3rd

2шт.

5

87705714

PLUG

1шт.

6

87707942

BOLT,Hex, M8 x 95mm, Cl. 8.8

M8 x 95

4шт.

7

87705716

SENSOR

Pressure

1шт.

7

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

1шт.

8

87705720

GASKET

1шт.

9

87705723

BOLT,Hex, M8 x 65mm, Cl. 8.8

1шт.

10

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

11

E135809

PLUG

1шт.

12

87705729

PLUG

1шт.

13

87705732

VALVE BODY

1шт.

14

87722866

WIRE HARNESS

Powershift

1шт.
