Запчасти Case 580SM (21.155.08) - TRANSMISSION, 4WD POWERSHIFT (580SM/SM+) - SHAFT, SECONDARY (21) - TRANSMISSION

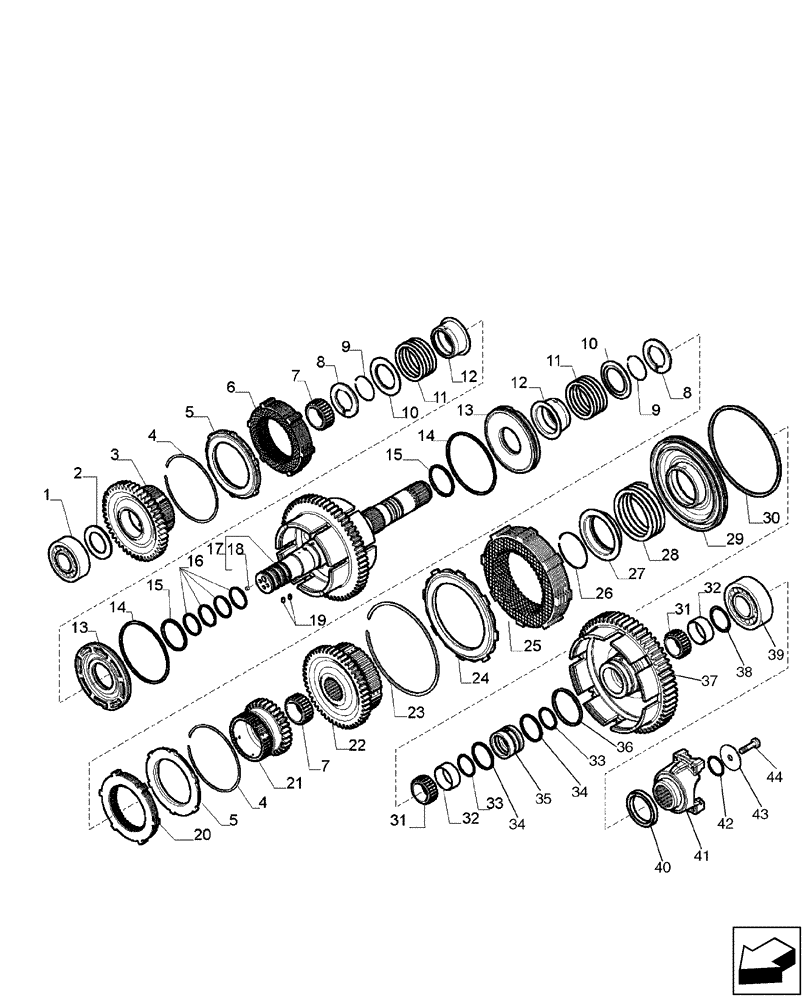

Схема запчастей Case 580SM - (21.155.08) - TRANSMISSION, 4WD POWERSHIFT (580SM/SM+) - SHAFT, SECONDARY (21) - TRANSMISSION
5
8
7
38
21
16
4
29
18
36
11
33
17
7
24
41
43
28
5
31
44
2
13
23
26
25
30
32
9
10
9
35
27
20
11
3
6
39
1
4
14
15
14
12
12
31
19
13
40
32
37
22
42
34
33
34
15
10
8

Артикул

Название

Примечание

Количество

87567534

TRANSMISSION

Powershift, Four Wheel Drive, Incl. Ref 1 - 44

1шт.

1

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

2

358639A1

WASHER

Thrust

1шт.

3

87705470

GEAR,44T

44T

1шт.

4

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

RING, LOCK

2шт.

5

310519A1

PLATE

Clutch Lock Ring

2шт.

6

87705465

CLUTCH OVERHAUL KIT

, Serial Range: Second-Third

1шт.

7

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

2шт.

8

358640A1

WASHER

60 x 50 x 4

2шт.

9

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

RING, LOCK

2шт.

10

181161A1

PLATE, THRUST

Lock Spring Cover

2шт.

11

358637A1

SPRING

2шт.

12

358641A1

TRANSMISSION SLEEVE

Clutch

2шт.

13

358644A1

PISTON

Clutch

2шт.

14

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

SEALRING Seal Ri

2шт.

15

358642A1

SEALING RING

SEALRING

2шт.

16

358645A1

SEALING RING

4шт.

17

87705476

SHAFT,60T

60T; Incl Ref 18

1шт.

18

87705467

RIVET

D7

3шт.

19

181108A1

SPLIT PIN,3mm OD x 8mm L

D3 x 8

2шт.

20

87705479

CLUTCH OVERHAUL KIT

Fourth

1шт.

21

87705480

GEAR,30T

30T

1шт.

22

87705481

GEAR,51T

51T

1шт.

23

87705482

CIRCLIP,204.5mm OD x 3mm Thk

1шт.

24

87705483

CIRCLIP

1шт.

25

87705492

CLUTCH OVERHAUL KIT

First

1шт.

26

87705493

CIRCLIP,72.4mm ID x 2mm Thk

1шт.

27

87705494

COVER

Lock Spring

1шт.

28

87705501

SPRING

1шт.

29

87705502

PISTON

Clutch

1шт.

30

87705503

SEALING RING

SEALRING

1шт.

31

87705515

NEEDLE BEARING,50mm ID x 55mm OD x 20mm W

Needle Bearing

2шт.

32

87705516

BUSHING,45mm ID x 50mm OD x 20.5mm L

2шт.

33

87705517

O-RING

2шт.

34

87705518

SEALING RING

SEALRING

2шт.

35

87705519

SPACER

1шт.

36

87705520

SEAL KIT

SEALRING

1шт.

37

87705521

GEAR,60T

60T

1шт.

38

87705522

WASHER

1шт.

39

87705469

BALL BEARING,45 mm ID x 100 mm OD x 25 mm

1шт.

40

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

1шт.

41

87705524

FLANGE

1шт.

42

181144A1

O-RING,39.6mm ID x 3.53mm Width

1шт.

43

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

1шт.

44

P3533055

SCREW,M12 x 1.25 x 25mm

M12 x 25

1шт.

Выбрано товаров: 45
