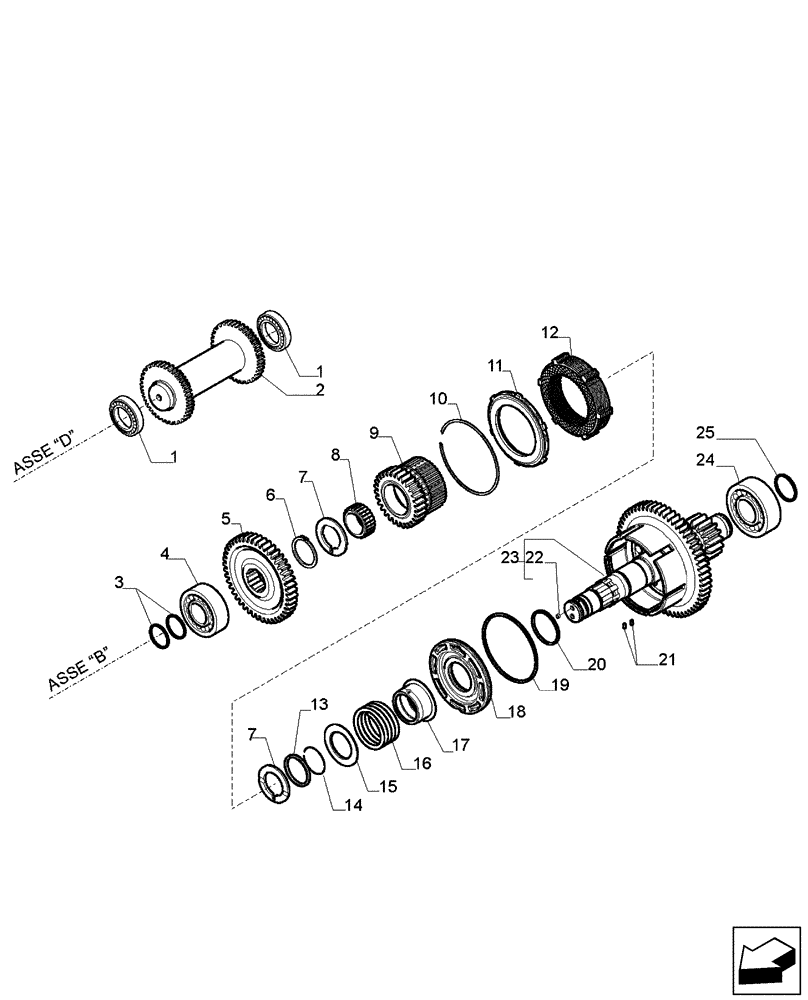

Запчасти Case 580SM (21.155.03) - TRANSMISSION, 4WD POWERSHIFT (580SM/SM+) - SHAFT, REVERSE & PRIMARY (21) - TRANSMISSION

87567534

TRANSMISSION

Powershift, Four Wheel Drive, Incl. Ref 1 - 25

1шт.

1

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

2шт.

2

358636A1

SHAFT,27T

Reverse, 27T

1шт.

3

87705461

SEALING RING

SEALRING

2шт.

4

87705462

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

Bearing, Ball

1шт.

5

87705463

GEAR,45T

45T

1шт.

6

800-1150

SNAP RING,M50, Ext

1шт.

7

358640A1

WASHER

60 x 50 x 4

2шт.

8

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

1шт.

9

87705464

GEAR,28T

28T

1шт.

10

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

RING, LOCK

1шт.

11

310519A1

PLATE

Clutch Plate Lock Ring

1шт.

12

87705465

CLUTCH OVERHAUL KIT

, Serial Range: Second-Third

1шт.

13

87705466

THRUST WASHER

1шт.

14

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

RING, LOCK

1шт.

15

181161A1

PLATE, THRUST

Lock Spring Cover

1шт.

16

358637A1

SPRING

1шт.

17

358641A1

TRANSMISSION SLEEVE

Clutch

1шт.

18

358644A1

PISTON

Clutch

1шт.

19

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

SEALRING

1шт.

20

358642A1

SEALING RING

SEALRING

1шт.

21

181108A1

SPLIT PIN,3mm OD x 8mm L

D3 x 8

2шт.

22

87705467

RIVET

D7

1шт.

23

87705468

SHAFT,58/17T

58T/17; Incl Ref 22

1шт.

24

87705469

BALL BEARING,45 mm ID x 100 mm OD x 25 mm

1шт.

25

358645A1

SEALING RING

1шт.
