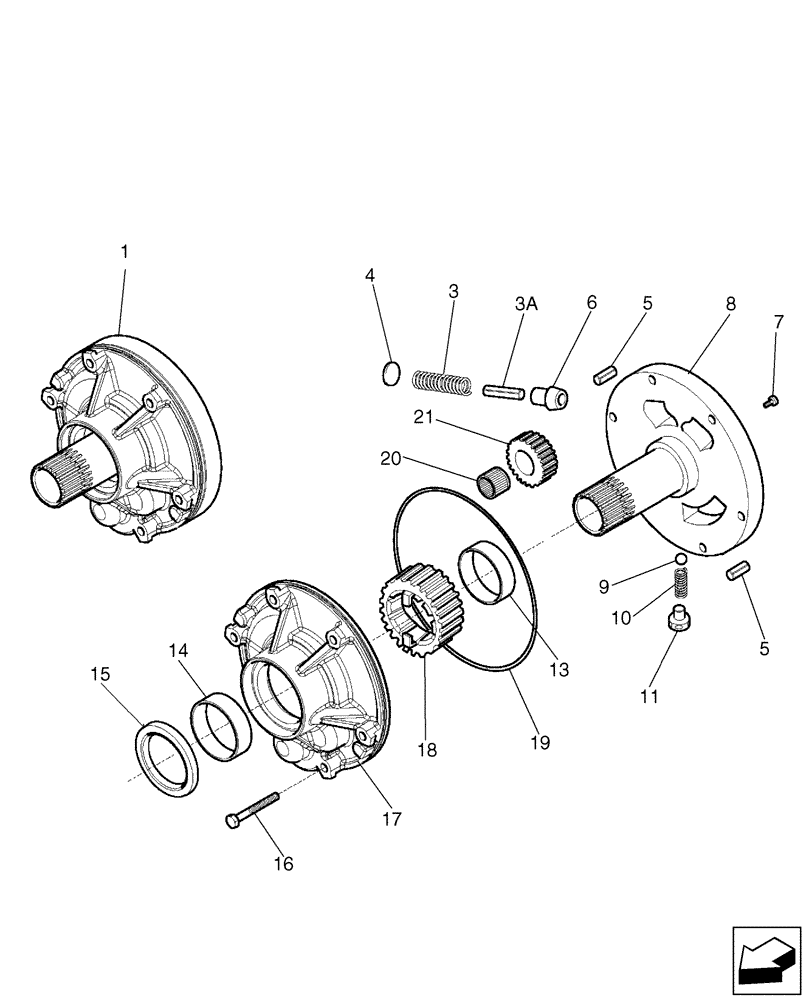

Запчасти Case 580SM (21.155.01) - TRANSMISSION, 4WD POWERSHIFT (580SM/SM+) - PUMP, OIL (21) - TRANSMISSION

87567534

TRANSMISSION

Powershift, Four Wheel Drive, Incl. Ref 1 - 21

1шт.

1

87705431

HYDRAULIC PUMP

Oil, Incl. Ref 3 - 21

1шт.

1

87705431R

REMAN-HYD PUMP

1шт.

1

87705431C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING

1шт.

3a

NSS

NOT SOLD SEPARAT

PIN

1шт.

4

NSS

NOT SOLD SEPARAT

STOP

1шт.

5

NSS

NOT SOLD SEPARAT

PIN Roll

2шт.

6

NSS

NOT SOLD SEPARAT

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

BOLT

2шт.

8

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

9

NSS

NOT SOLD SEPARAT

BALL

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING

1шт.

11

NSS

NOT SOLD SEPARAT

GUIDE

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

14

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

15

87429971

OIL SEAL

1шт.

16

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

9шт.

17

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

18

NSS

NOT SOLD SEPARAT

GEAR

1шт.

19

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

BEARING Needle

1шт.

21

NSS

NOT SOLD SEPARAT

GEAR

1шт.
