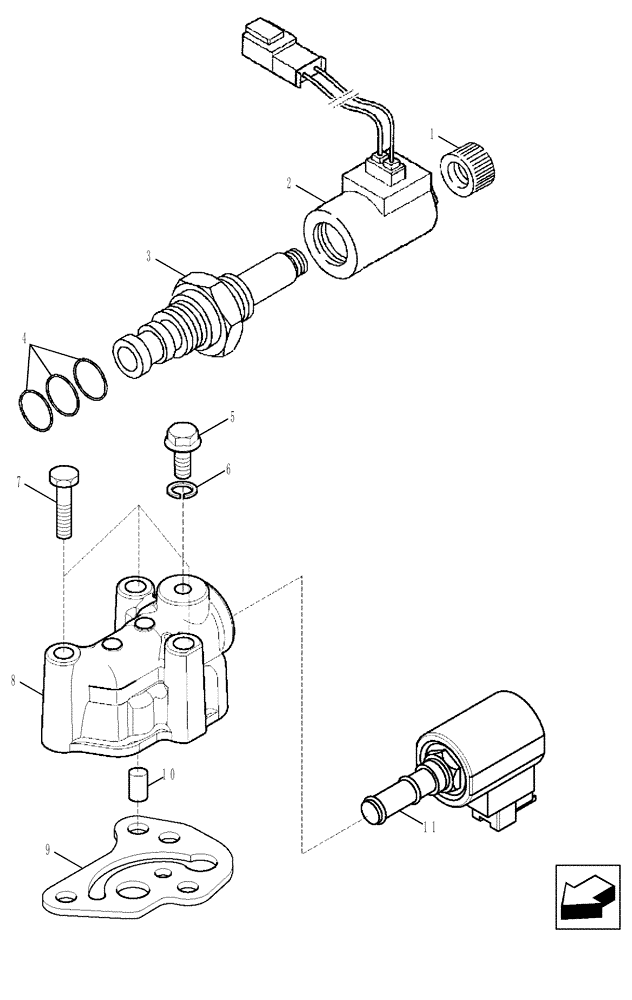

Запчасти Case 580SM (21.134.05) - TRANSMISSION, 4WD (580SM/SM+) - VALVE, SOLENOID (21) - TRANSMISSION

87395301

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 10

1шт.

87395301R

REMAN-TRANSMISSION

Remanufactured, 4WD

1шт.

87395301C

CORE-TRANSMISSION

Return Number, 4WD

1шт.

87429978

CARTRIDGE

Incl. Ref 1 - 4; With Deutsch Connectors

1шт.

1

NSS

NOT SOLD SEPARAT

NUT

1шт.

2

NSS

NOT SOLD SEPARAT

COIL

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE Solenoid

1шт.

4

NSS

NOT SOLD SEPARAT

KIT Seal, Includes 238-5014, 238-5015, 237-6010 O-Rings, Kit Not Serviced Separately

1шт.

5

181100A1

PLUG,1/8 CAS x 8

M10 x 23

1шт.

6

934667R1

SEALING RING,M10 x 14 x 1

1шт.

7

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

8

321428A1

HOUSING

1шт.

9

366910A1

GASKET

1шт.

10

190431A1

VALVE

Installed Between Ref 8 and 9

1шт.

11

87456901

SOLENOID VALVE

Component Parts Not Serviced Separately; Includes Solenoid and Ref 12 Jumper Harness; Jumper Is For Coverting Transmissions Prior to Connector Change From Weather, Serial Range: Pack-Deutsch

1шт.

12

87456969

WIRE HARNESS

Jumper; Weather Pack Connector/Deutsch Connector

1шт.
