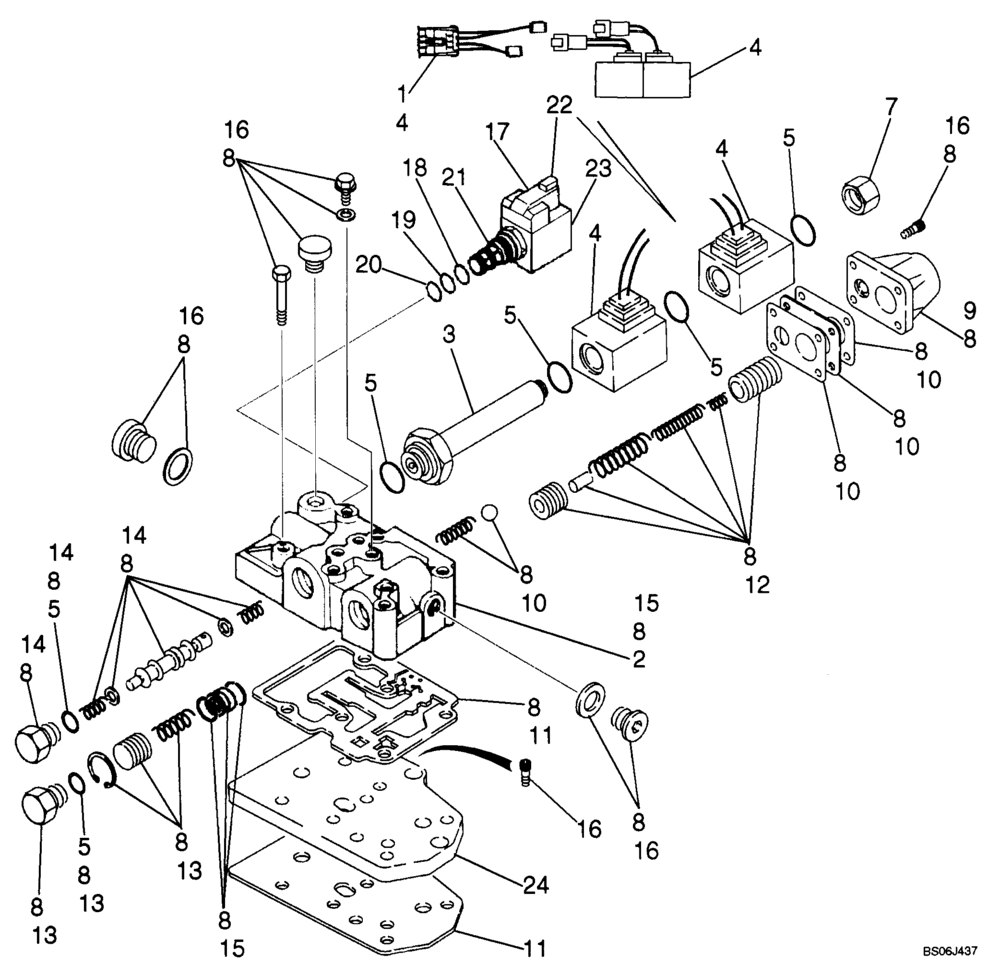

Запчасти Case 580SM (21.134.01[01]) - TRANSMISSION, 2WD (580SM) - VALVE, CONTROL (21) - TRANSMISSION

87395300

TRANSMISSION

Two Wheel Drive, Incl. Ref 1 - 23

1шт.

87395300R

REMAN-TRANSMISSION

Remanufactured, 2WD

1шт.

87395300C

CORE-TRANSMISSION

Return Number

1шт.

87525756

REPAIR KIT

Transmission Control Valve With Jumper Harness; Includes (1) 87456968 Forward/Reverse Jumper Harness, Ref 1; Plus (1) 87524409 Control Valve, Ref 1 - 23

1шт.

1

87456968

WIRE HARNESS

Jumper; If Used; Female Packard Connector; Required On Transmissions Prior To Ones With Deutsch Connector Type Solenoids

1шт.

87524409

CONTROL VALVE

Transmission Control, With Improved Snap Ring at Flow Divider Area; Incl. Ref 2 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

190442A1

PLUNGER

1шт.

4

87456900

SERVICE KIT

Solenoid; (Used for Fwd/Rev) Includes (2) Solenoids, (1) Jumper Wire Used For Transmissions Prior to Ones With The Solenoids With Plastic Connections

1шт.

5

87524436

REPAIR KIT

Seal; Includes (6) O-Rings; Component Parts Not Serviced Separately

1шт.

7

87530365

PLUG

1шт.

8

87524441

KIT

Valve Body; Component Parts Not Serviced Separately

1шт.

9

181251A1

COVER

Modulation

1шт.

10

87524439

REPAIR KIT

Plate; Includes (1) Plate, (2) Gasket, (1) Ball, (1) Spring; Component Parts Not Serviced Separately

1шт.

11

87524437

REPAIR KIT

Gasket; Includes (2) Gasket Plates; Component Parts Not Serviced Separately

1шт.

12

87524438

REPAIR KIT

Modulation Valve; Includes (2) Piston, (1) Pin, (3) Spring; Component Parts Not Serviced Separately

1шт.

13

87524433

REPAIR KIT

Flow Divider Piston; Includes (1 each) Plug, O-Ring, Spring, Piston, Snap Ring; Component Parts Not Serviced Separately

1шт.

14

87524432

REPAIR KIT

Forward/Reverse Spool; Includes (1) O-Ring, (2) Washer, (1) Plug, (1) Piston Spool, (2) Spring; Component Parts Not Serviced Separately

1шт.

15

87524440

REPAIR KIT

Control Valve Body/Housing; Includes (1) Housing, Plus (1) Bushing, (2) Snap Rings at Flow Divider; Component Parts Not Serviced Separately

1шт.

16

87524435

REPAIR KIT

Bolt; Includes (7) Plugs, (13) Bolts, (6) Copper Washers; Component Parts Not Serviced Separately

1шт.

17

349295A1

SOLENOID VALVE

Differential Lock Solenoid Valve; Incl. Ref 18 - 23

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

20

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

21

349291A1

CARTRIDGE

Valve, Component Parts Not Serviced Separately

1шт.

21a

196096A1

SCREEN

Relief Valve, Internal; Not Illustrated

1шт.

22

298614A1

SOLENOID

1шт.

23

349292A1

JAM NUT,Hex, 1/2" - 2, RH Thd

1шт.

24

181207A1

PLATE

Feeding; Not Included in Assembly, Purchase Separately

1шт.
