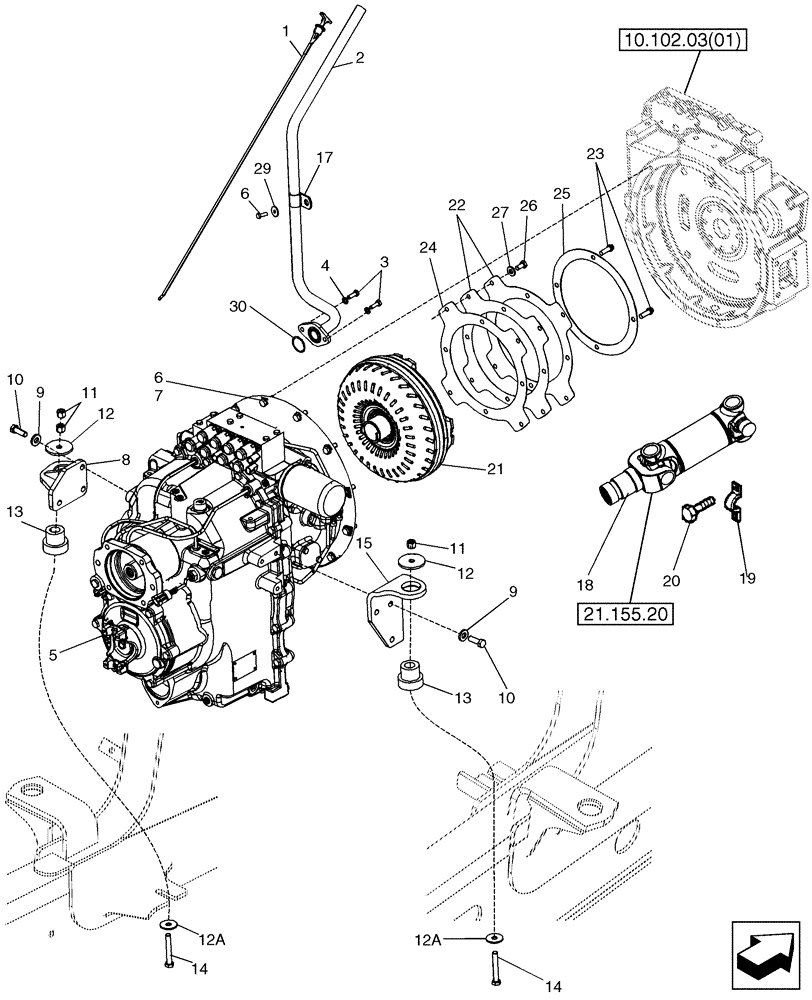

Запчасти Case 580SM (21.113.01[03]) - TRANSMISSION - MOUNTING (MODELS WITH POWERSHIFT) (21) - TRANSMISSION

1

87601345

DIPSTICK,824mm L

1шт.

2

87655222

TUBE

Dipstick

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

5

87567534

TRANSMISSION

Power Shift, Four Wheel Drive Models

1шт.

5

87567534R

REMAN-TRANSMISSION

TRANSMISSION Power Shift, 4WD, Remanufactured

1шт.

5

87567534C

CORE-TRANSMISSION

TRANSMISSION Power Shift, 4WD, Core

1шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

8

87735094

SUPPORT

Left-Hand Bracket

1шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

10

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

6шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

12

85801585

SEALING WASHER,13mm ID x 65mm OD x 5mm Thk

Special

2шт.

12a

85802618

SEALING WASHER,13mm ID x 41mm OD x 3mm Thk

2шт.

13

87416967

SUPPORT

INSULATOR

2шт.

14

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

2шт.

15

87735095

SUPPORT

Right-Hand Bracket

1шт.

17

D35908

CLAMP,1" Clamping pipe

1шт.

18

87613924

DRIVE SHAFT

580SM Models Only; Transmission to Rear Axle

1шт.

18

87693489

DRIVE SHAFT

580SM+ Models Only; Transmission to Rear Axle

1шт.

19

87538515

KIT

2шт.

20

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16

4шт.

21

87702192

TORQUE CONVERTER

1шт.

21

87702192R

REMAN-TORQUE CONVERT

ER Remanufactured

1шт.

21

87702192C

CORE-TORQUE CONVERTR

CORE-TORQUE CONVERTER Return Number

1шт.

22

86993546

PLATE,224mm ID x 284mm OD x 0.5mm Thk

2шт.

23

87019767

12 PT SCREW,M10 x 1.25 x 30mm, Cl 10.9

4шт.

23

1183269

12 PT SCREW,M10 x 1.5 x 30mm, Cl 10.9

Use with kit 47442982

4шт.

24

87406934

PLATE

Flex Plate With Caged Nut

1шт.

24

47442982

KIT

Flex Plate With Caged Nut

1шт.

25

87409201

BACKING PLATE,228mm ID x 280mm OD x 1.5mm Thk

1шт.

26

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

27

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

29

12644301

WASHER,M10 x 35 x 3

1шт.

30

272218

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

1шт.
