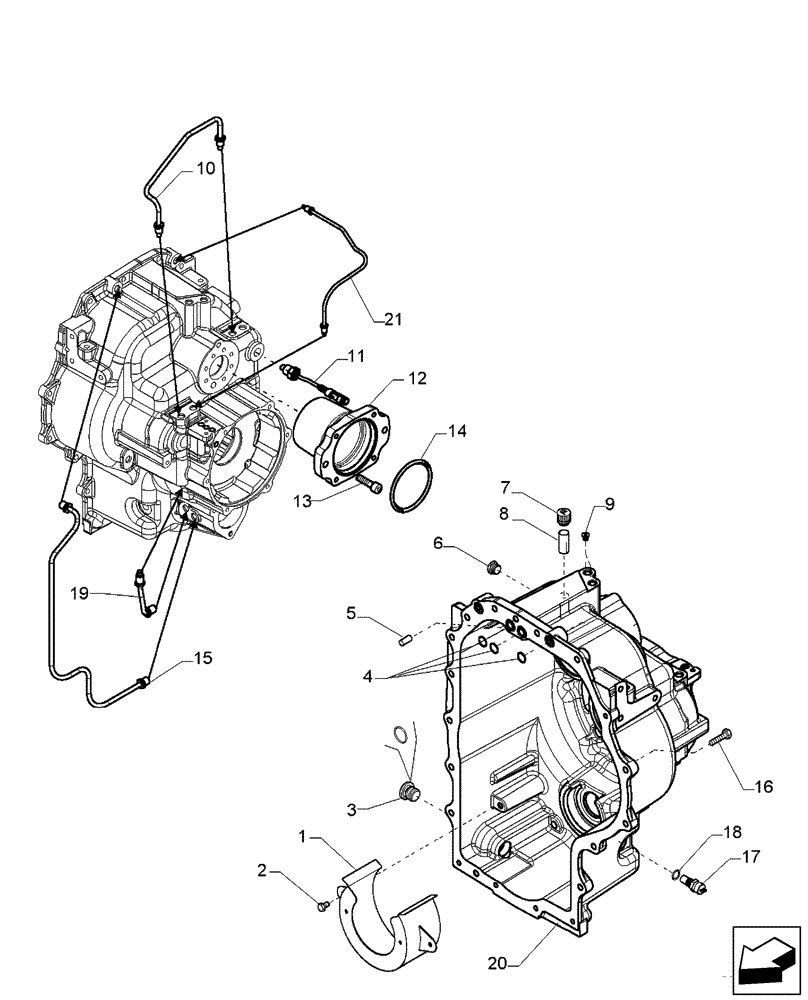

Запчасти Case 580SM (21.113.01[02]) - TRANSMISSION, 4WD POWERSHIFT (580SM/SM+) - HOUSING, REAR & THERMOSTAT (21) - TRANSMISSION

87567534

TRANSMISSION

Powershift, Four Wheel Drive, Incl. Ref 1 - 21

1шт.

1

87705445

BRACKET

Guard

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

3

100557A1

PLUG, DRAIN,M30 x 2

Includes 238-6121 O-Ring

1шт.

4

181141A1

O-RING,17.12mm ID x 2.62mm Width

3шт.

5

K260177

PIN

2шт.

6

NSS

NOT SOLD SEPARAT

Plug

2шт.

7

1530028C1

BREATHER

1шт.

8

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

Breather

1шт.

9

E135809

PLUG

2шт.

10

87705446

TUBE

Lubrication

1шт.

11

87705447

SENSOR

Temperature (Thermostat)

1шт.

12

87701269

FLANGE

1шт.

13

87705895

BOLT,TCEI, M10 x 25mm, Cl 8.8

M10 x 25

7шт.

14

87429982

O-RING

1шт.

15

87705448

TUBE

Four Wheel Drive

1шт.

16

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

13шт.

17

87705451

SENSOR

Speed

1шт.

18

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

19

87705452

TUBE

Lubrication

1шт.

20

87705453

TRANSMISSION HOUSING

Rear Half

1шт.

21

87705455

TUBE

Lubrication

1шт.
