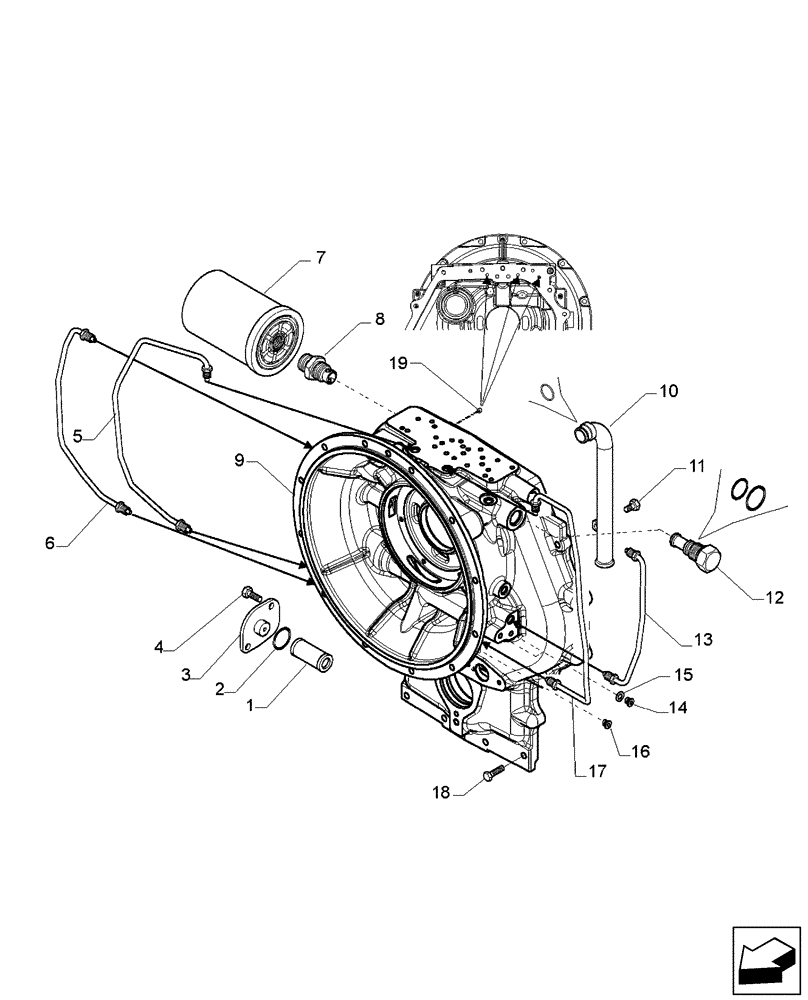

Запчасти Case 580SM (21.113.01[01]) - TRANSMISSION, 4WD POWERSHIFT (580SM/SM+) - HOUSING & FILTER, OIL (21) - TRANSMISSION

87567534

TRANSMISSION

Powershift, Four Wheel Drive, Incl. Ref 1 - 19

1шт.

1

278534A1

FILTER SCREEN

1шт.

2

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

3

181219A1

COVER

1шт.

4

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

5

87705432

TUBE

First Speed

1шт.

6

87705434

TUBE

Third Speed

1шт.

7

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

1шт.

8

181202A1

FITTING

1шт.

9

87705437

TRANSMISSION HOUSING

Front Half

1шт.

10

87705438

PIPE

Suction Tube; Includes O-Ring Which Is Not Serviced Separately

1шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

12

87705439

VALVE

Directional

1шт.

13

87705441

TUBE

Second Speed

1шт.

14

181100A1

PLUG,1/8 CAS x 8

5шт.

15

934667R1

SEALING RING,M10 x 14 x 1

5шт.

16

E135809

PLUG

3шт.

17

87705444

TUBE

Fourth Speed

1шт.

18

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

5шт.

19

87705467

RIVET

3шт.
