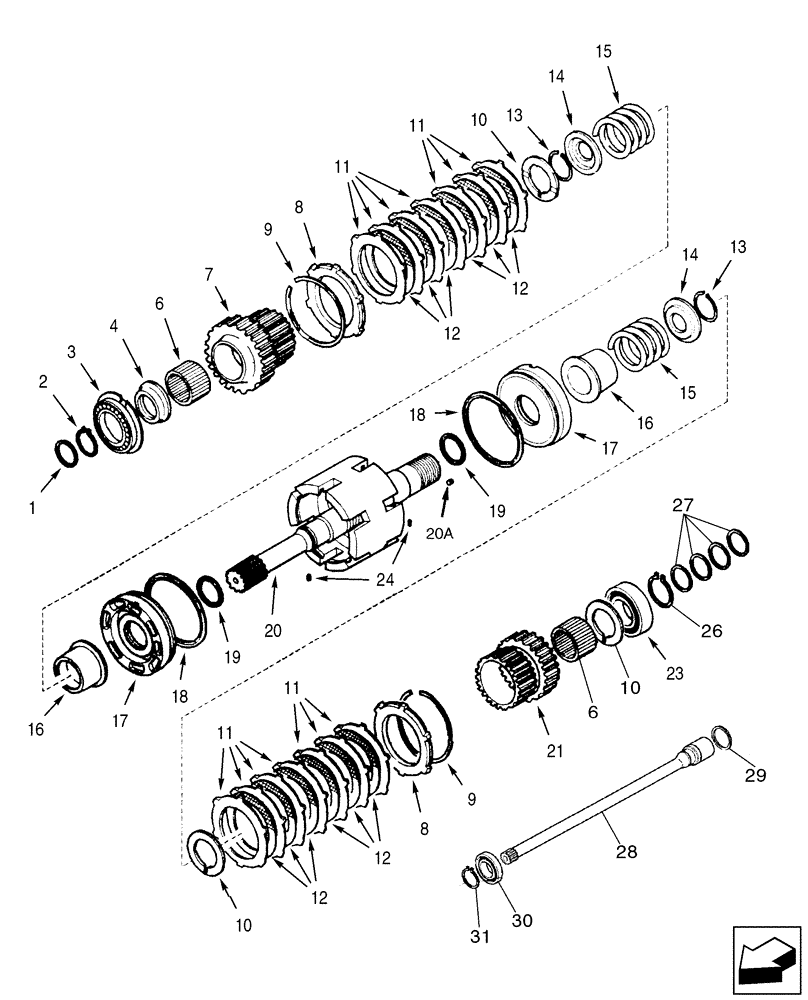

Запчасти Case 580SM (21.112.03[02]) - TRANSMISSION, 4WD (580SM/SM+) - SHAFT, INPUT & PTO (21) - TRANSMISSION

87395301

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 31

1шт.

87395301R

REMAN-TRANSMISSION

Remanufactured, 4WD

1шт.

87395301C

CORE-TRANSMISSION

Return Number, 4WD

1шт.

84468418

CLUTCH INPUT SHAFT

INPUT/PTO SHAFT; Incl. Ref 1 - 31

1шт.

1

358645A1

SEALING RING

1шт.

2

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

1шт.

3

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

4

358635A1

SPACER

68 x 45 x 105 mm

1шт.

6

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

2шт.

7

358632A1

PINION,35T

Gear, 35T

1шт.

8

310519A1

PLATE

2шт.

9

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

RING, LOCK

2шт.

10

358640A1

WASHER

3шт.

11

181159A1

DISC

Plate

14шт.

12

181158A1

CLUTCH DISC

CLUTCH DISK Plate

12шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

RING, LOCK

2шт.

14

181161A1

PLATE, THRUST

Pressure

2шт.

15

358637A1

SPRING

2шт.

16

358641A1

TRANSMISSION SLEEVE

2шт.

17

358644A1

PISTON

2шт.

18

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

SEALRING

2шт.

19

358642A1

SEALING RING

SEALRING

2шт.

20

87525849

REPAIR KIT

Input Shaft, Incl Ref 20A (4) 139312A1 Rivets; Also Incl (1) 87429973 Input Shaft Which Is Not Serviced Separately

1шт.

20a

139312A1

PLUG,Expansion, 6mm OD

Rivet

4шт.

21

358638A1

PINION,39T

Gear, 29T

1шт.

23

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

1шт.

24

181108A1

SPLIT PIN,3mm OD x 8mm L

2шт.

26

800-1150

SNAP RING,M50, Ext

1шт.

27

87429984

RING

4шт.

28

87705460

PTO SHAFT

1шт.

29

358645A1

SEALING RING

1шт.

30

87429983

BALL BEARING,30mm ID x 55mm OD x 13mm W

1шт.

31

800-1130

SNAP RING,M30, Ext

1шт.
