Запчасти Case 580SM (21.112.01[03]) - TRANSMISSION - MOUNTING (MODELS WITHOUT POWERSHIFT) (21) - TRANSMISSION

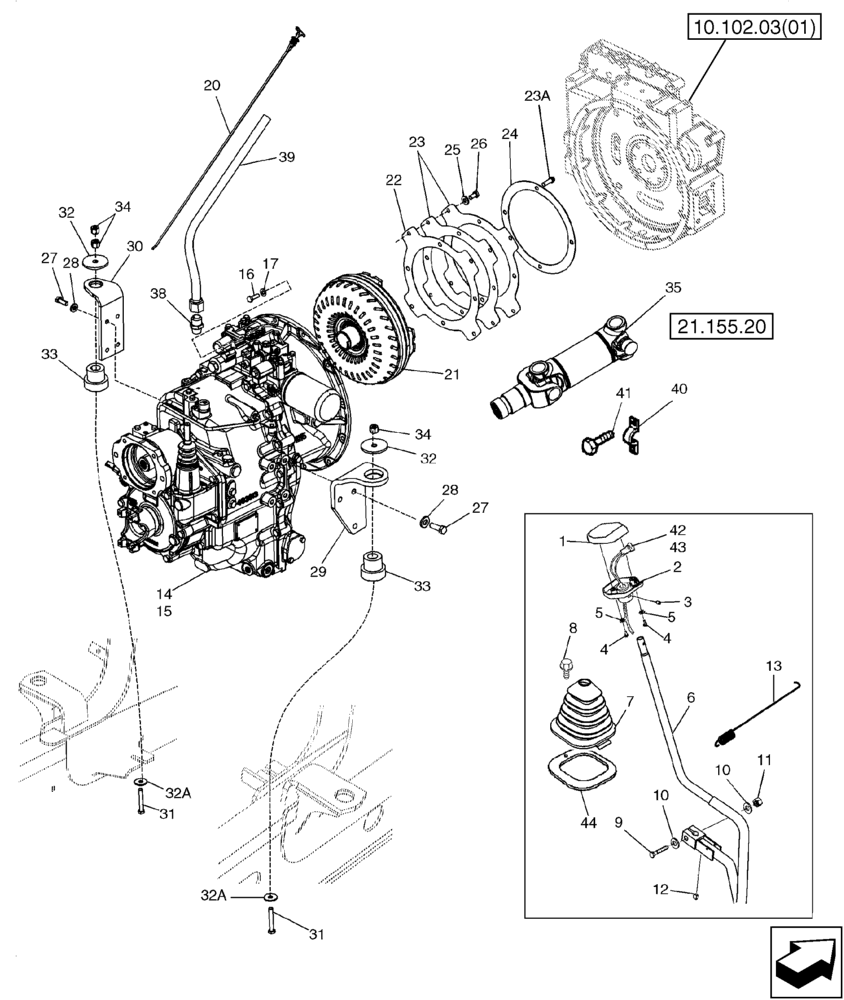

Схема запчастей Case 580SM - (21.112.01[03]) - TRANSMISSION - MOUNTING (MODELS WITHOUT POWERSHIFT) (21) - TRANSMISSION
28
10.102.03(01)
21.155.20
20
28
6
23
34
32a
31
44
17
4
22
42
24
16
34
2
12
40
27
25
1
35
31
32
30
26
7
21
38
8
32a
41
27
3
10
39
9
23a
11
33
43
13
5
15
10
4
5
29
33
14
32

Артикул

Название

Примечание

Количество

309747A1

KNOB

Gear Shift Lever, Includes NSS Gasket, Incl. Ref 1, 2, 4, 5

1шт.

NSS

NOT SOLD SEPARAT

GASKET, Knob

2шт.

1

187714A1

KNOB

Upper

1шт.

2

187715A1

KNOB

Lower

1шт.

3

484-6316

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

1шт.

4

87020181

SCREW,Phillips Drive, Pan HD, #10 - 32 x 7/8"

No. 10 NF x 7/8

2шт.

5

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

6

379314A4

LEVER

Gear Shift

1шт.

7

400588A2

BOOT

1шт.

8

87310096

BOLT,Hex, M6 x 25, Cl. 8.8, W/ Washer

M6 x 25, Includes Washer, Stainless Steel

1шт.

9

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

12

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

13

380537A2

SPRING,Extension, 20.10mm x 38mm L

1шт.

14

87395300

TRANSMISSION

Two Wheel Drive Models

1шт.

14

87395300R

REMAN-TRANSMISSION

Remanufactured, 2WD

1шт.

14

87395300C

CORE-TRANSMISSION

Return Number

1шт.

15

87395301

TRANSMISSION

Four Wheel Drive Models

1шт.

15

87395301R

REMAN-TRANSMISSION

Remanufactured, 4WD

1шт.

15

87395301C

CORE-TRANSMISSION

Return Number

1шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

17

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

20

87601345

DIPSTICK,824mm L

1шт.

21

87702192

TORQUE CONVERTER

1шт.

21

87702192R

REMAN-TORQUE CONVERT

1шт.

21

87702192C

CORE-TORQUE CONVERTR

Return Number

1шт.

22

87406934

PLATE

Flex, With Caged Nuts

1шт.

22

47442982

KIT

Flex, With Caged Nuts

1шт.

23

86993546

PLATE,224mm ID x 284mm OD x 0.5mm Thk

Flex

2шт.

23a

87019767

12 PT SCREW,M10 x 1.25 x 30mm, Cl 10.9

4шт.

23a

1183269

12 PT SCREW,M10 x 1.5 x 30mm, Cl 10.9

Use with kit 47442982

4шт.

24

87409201

BACKING PLATE,228mm ID x 280mm OD x 1.5mm Thk

1шт.

25

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

26

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

27

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

7шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

7шт.

29

87735097

SUPPORT

Right-Hand Bracket

1шт.

30

87735096

SUPPORT

Left-Hand Bracket

1шт.

31

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

2шт.

32

85801585

SEALING WASHER,13mm ID x 65mm OD x 5mm Thk

Special

2шт.

32a

85802618

SEALING WASHER,13mm ID x 41mm OD x 3mm Thk

2шт.

33

87416967

SUPPORT

2шт.

34

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

35

87613924

DRIVE SHAFT

580SM Models; Transmission to Rear Axle

1шт.

35

87693489

DRIVE SHAFT

580SM+ Models; Transmission to Rear Axle

1шт.

38

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1шт.

39

87601338

TUBE

Dipstick

1шт.

40

87538515

KIT

2шт.

41

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16

4шт.

42

87312712

SWITCH

Push Button, Clutch Cutout

1шт.

43

123809A2

WIRE HARNESS

Clutch Cutout, Transmission Gear Shift Lever

1шт.

44

410561A1

SEAL,133mm L

Shift Lever Boot, Cab Models

1шт.

Выбрано товаров: 53
