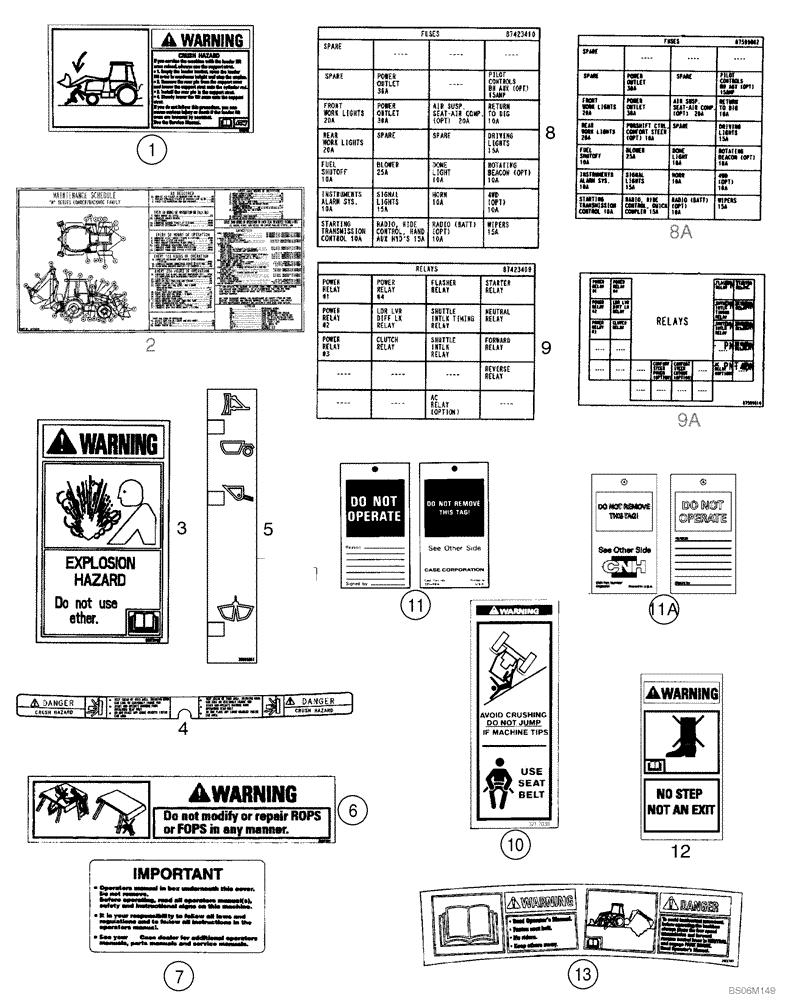

Запчасти Case 580SM (09-77) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS

87307896

WARNING DECAL

Crush Hazard; When Changing A Machine to Foot Swing Controls; For Illustration See ref 9 On Figure 09-74

1шт.

1

398577A1

WARNING DECAL

Crush Hazard; Loader Arm Support Strut

1шт.

2

87636605

DECAL

Maintenance Schedule; Supplied by Parts and Components; Replaces 87430922, 874469009, 87308997

1шт.

3

47728074

DECAL

Explosion Hazard, Do Not Use Ether

1шт.

4

86992979

DANGER DECAL

Crush Hazard

1шт.

5

398658A1

DECAL

Clam Bucket Position

1шт.

6

389730A1

WARNING DECAL

Do Not Modify or Repair ROPS or FOPS In Any Manner

1шт.

7

398663A1

IMPORTANT DECAL

Operator's Manual In Box Underneath This Cover; Glove Box Lid

1шт.

8

87431077

DECAL

Fuse Location; Models Without Comfort Steer (Fast Steer); If Used

1шт.

8a

87624318

DECAL

Fuse Location; Models With Comfort Steer (Fast Steer); If Used; North America Units

1шт.

9

87431080

DECAL

Relay; Models Without Comfort Steer (Fast Steer); If Used

1шт.

9a

87624320

DECAL

Relay; Models With Comfort Steer (Fast Steer); If Used; North America Units

1шт.

10

398673A1

WARNING DECAL

Avoid Crushing; Do Not Jump / Use Seat Belt

2шт.

11

321-5675

TAG

Do Not Operate; If Used

1шт.

11a

87380558

TAG

Do Not Operate; If Used

1шт.

12

86992978

WARNING DECAL

No Step/Not An Exit; Canopy

2шт.

13

398599A1

WARNING DECAL

Warning/Danger; Read the Operator's Manual

1шт.
