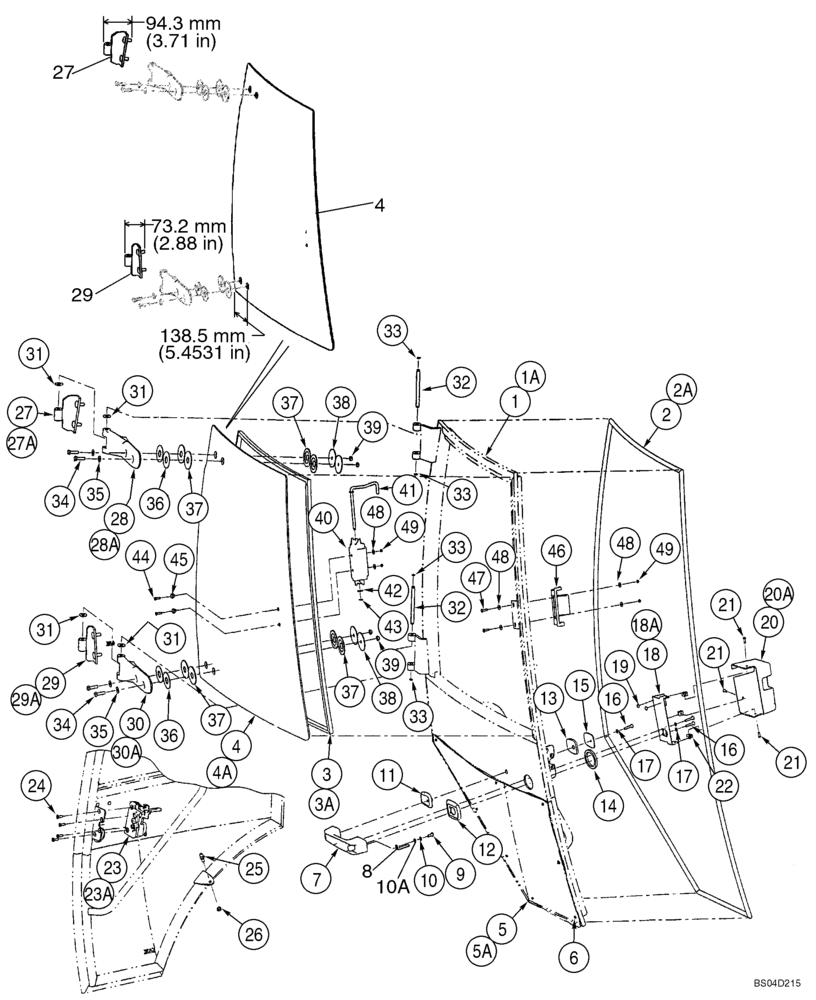

Запчасти Case 580SM (09-54) - CAB - DOORS, IF USED (SEE GLASS AND HINGES; REF 4, 27, 29) (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
LH and RH Cab Doors; LH Door Not Illustrated
1шт.
394585A3
RH CAB DOOR
Incl. Ref 1 - 49, Except Where Noted For LH Door
1шт.
341743A3
LH CAB DOOR
Incl. Ref 1A - 49, Except Where Noted For RH Door
1шт.
1
NSS
NOT SOLD SEPARAT
Frame; RH Door
1шт.
1a
87443691
FRAME
LH Door
1шт.
2
394707A1
RUBBER STRIP
RH Door
1шт.
2a
390838A1
RUBBER STRIP
LH Door
1шт.
3
394708A1
DOOR SEAL,Window, 2926mm L
Upper; RH Door
1шт.
3a
391850A1
SEAL, GLASS,717.8mm L
Upper; LH Door
1шт.
4
87339111
GLASS
Upper; RH Door; Distance From Edge to Second Hole 138.5 mm (5-29/64 in); Replaces 394700A1 Glass With Case Logo Used On Some Models
1шт.
4a
338429A1
GLASS
Upper; LH Door
1шт.
5
338427A1
GLASS,CAB
Lower; RH Door
1шт.
5a
338426A1
GLASS,CAB
Lower; LH Door
1шт.
6
391827A1
SPACER,11.1mm D
4 Per Door; Cut Bumpers In Half For 8 Locations
4шт.
7
60-7083T1
HANDLE
Outer
1шт.
8
442718A1
BUTTON
Release
1шт.
9
440-12510
SCREW,Cross Pan Hd, 1/4"-20 x 5/8"
1шт.
10
492-11025
LOCK WASHER,1/4"
1шт.
10a
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
1шт.
11
315276A1
BEZEL
Small
1шт.
12
315273A1
BEZEL
Large
1шт.
13
391847A1
SEAL,57mm L
Small
1шт.
14
391838A1
SEAL,50.8mm ID x 65mm OD x 6mm Thk
Large
1шт.
15
391848A1
BACK PLATE
1шт.
16
393203A1
SCREW
3шт.
17
393202A1
WASHER
6 mm
3шт.
18
394704A1
BRACKET
Cover Mounting; RH Door
1шт.
18a
391841A1
BRACKET
Cover Mounting; LH Door
1шт.
19
391827A1
SPACER,11.1mm D
2шт.
20
394705A1
COVER
Latch; RH Door
1шт.
20a
391842A1
COVER
Latch; LH Door
1шт.
22
393209A1
SPRING NUT
3шт.
23
382777A1
LATCH
RH Door
1шт.
23a
382775A1
LATCH
LH Door
1шт.
24
569-4
SCREW,Hex Soc Flat Hd, M6 x 20, 8.8
4шт.
25
3234063R1
BALL STUD,M10 x 1.5
1шт.
26
832-10410
NUT,M10 x 1.5, Cl 8
1шт.
27
394701A1
HINGE
Upper; RH Door (Hinge has 90 degree Bend - See SB for Details & next Figure)
1шт.
27a
390840A1
HINGE
Upper; LH Door
1шт.
28
364134A2
HINGE,Pivot to 1st hole - 126.58mm; Window hole to hole - 65.14mm
Plastic; Upper; RH Door
1шт.
28a
364132A2
HINGE,Pivot to 1st hole - 127.25mm; Window hole to hole - 65.14mm
Plastic; Upper; LH Door
1шт.
29
394702A1
HINGE
Lower; RH Door (Hinge has 90 degree Bend - See SB for Details & next Figure)
1шт.
29a
390841A1
HINGE
Lower; LH Door
1шт.
30
364135A2
HINGE,Pivot to 1st hole - 123.36mm; Window hole to hole - 65.34mm
Plastic; Lower; RH Door
1шт.
30a
364133A2
HINGE,Pivot to 1st hole - 127.66mm; Window hole to hole - 65.34mm
Plastic; Lower; LH Door
1шт.
31
391845A1
WASHER,11.1mm ID x 25.4mm OD x 1.6mm Thk
Nylon
4шт.
32
391843A1
PIN,10mm OD x 130mm L
2шт.
33
442773A1
CIRCLIP,7.42mm ID x 16.8mm OD x 0.9mm Thk
4шт.
34
514-633
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
4шт.
35
895-30107
WASHER,M8 x 20 x 2
4шт.
36
376334A1
WASHER,22mm ID x 55mm OD x 2.8mm Thk
Yellow
4шт.
37
376336A1
RUBBER WASHER
8шт.
38
376332A1
WASHER,9mm ID x 60mm OD x 3.4mm Thk
Black
4шт.
39
832-10508
NUT,M8 x 1.25, Cl 8
4шт.
40
368147A1
HANDLE
Slam Latch; Prior to Crenlo Narrow Cab S/N 65494 & Prior to Crenlo Wide Cab S/N 78038
1шт.
40
87344860
HANDLE
Slam Latch; Crenlo Narrow Cab S/N 65494 & After and Crenlo Wide Cab 78038 & After
1шт.
41
391849A1
ROD
Used With 100-39001 Ring; 391849A1 Rod No Longer Available, Order 87534372 Rod & 87534717 Push-On Nut
1шт.
42
906086R1
WASHER,8.4mm ID x 16mm OD x 1.6mm Thk
1шт.
43
100-39001
SNAP RING,#X31, Ext, E-Type
1шт.
44
140-107
SCREW,Pan HD, #10 - 24 x 3/4"
2шт.
46
368146A1
LATCH
Slam; Prior to Crenlo Narrow Cab S/N 65494 & Prior to Crenlo Wide Cab S/N 78038
1шт.
46
87344859
LATCH
Slam; Crenlo Narrow Cab S/N 65494 & After and Crenlo Wide Cab 78038 & After
1шт.
47
142-103
SCREW,Phil Oval Hd, Csk, #10 - 24 x 3/4"
2шт.
48
195-81023
WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk
6шт.
49
F45165
SPECIAL NUT,#10-24
No. 10
4шт.
Выбрано товаров: 67
