(02-17) - CYLINDER HEAD - COVERS

Запчасти Case 580SM (02-17) - CYLINDER HEAD - COVERS (02) - ENGINE

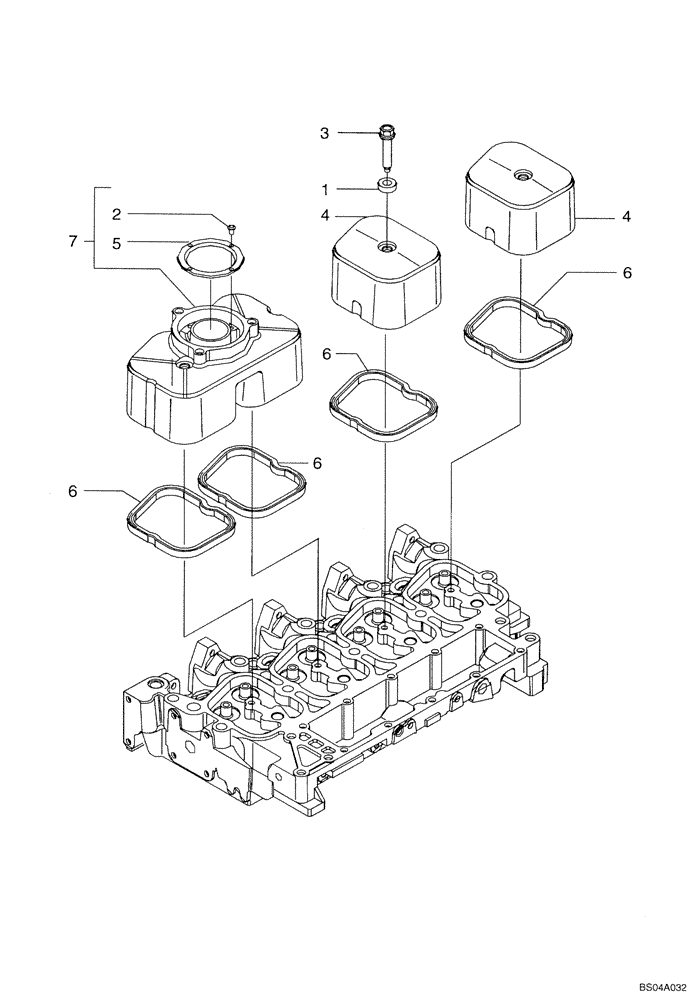

Схема запчастей Case 580SM - (02-17) - CYLINDER HEAD - COVERS (02) - ENGINE
6
6
6
5
2
4
7
3
4
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

4шт.

2

2830281

SELF-TAP SCREW,M2.9 x 6.5

4шт.

3

4895214

SCREW,Flng, M8 x 1.25 x 34.549mm, Cl 8.8

4шт.

4

2852032

VALVE COVER

2шт.

5

2830775

BAFFLE

1шт.

6

2852033

GASKET,7mm Thk

4шт.

7

2830784

VALVE COVER

Incl. Ref 2, 5; Replaces 2830769

1шт.

Выбрано товаров: 7
