Артикул
Название
Примечание
Количество

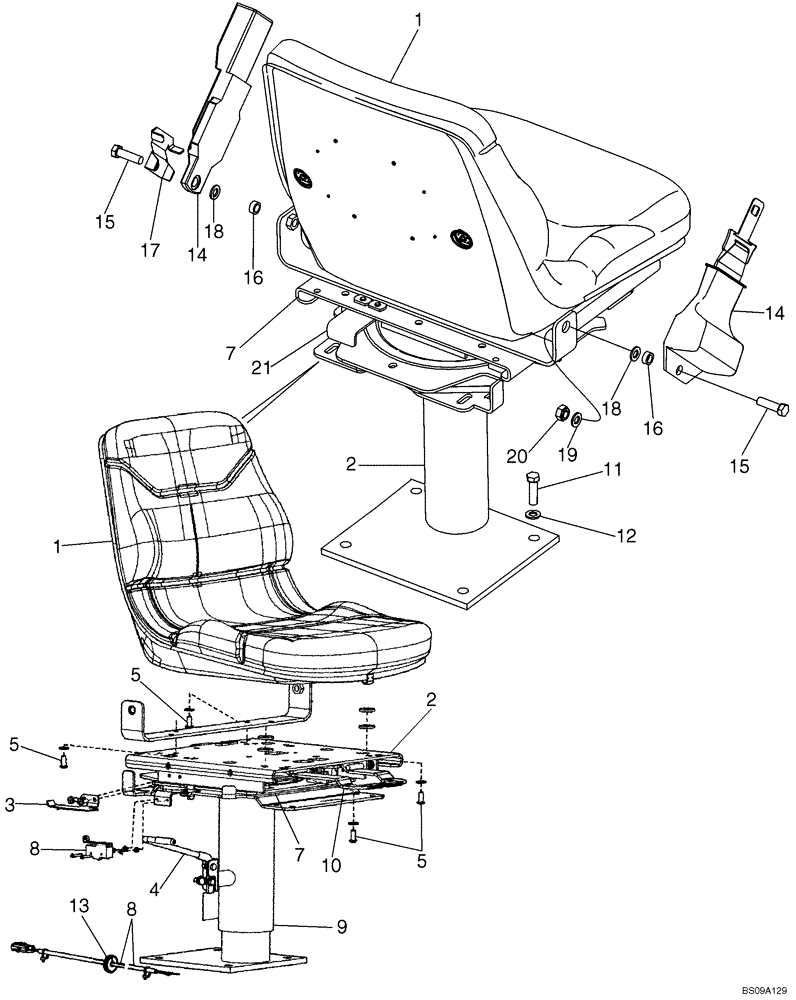

87454292
SEAT ASSY.
Standard, Vinyl, Without Armrest, Sears Brand; Includes Seat, Swivel and Pedestal, and Swivel Bearing Kit, Ref 1 - 10
1шт.
1
87338681
SEAT BACK
Seat Only
1шт.
2
87346606
SEAT ACCESSORY
Swivel and Pedestal; Component Parts Not Serviced Separately
1шт.
3
87346607
SEAT ACCESSORY
Lever, Switch Actuator
1шт.
4
87346611
SEAT ACCESSORY
Handle, Height Adjustment
1шт.
5
87346612
SEAT ACCESSORY
Button Head Screw, 5/16 x 3/4
4шт.
6
87346615
SEAT ACCESSORY
Spring Not Illustrated
1шт.
7
87308132
BEARING ASSY
Swivel Bearing; Includes (1) Bolt, (8) Bearings, (1) Clip, (1) Nut, (1) Cotter Pin, (1) Plastic Washer, (1) Ball Retainer; Component Parts Not Serviced Separately
1шт.
8
87346625
KIT
Kit, Switch/Harness, Adj. Height
1шт.
9
87346633
SEAT ACCESSORY
Kit, Pedestal
1шт.
10
87346634
SEAT ACCESSORY
Kit, Slide/Swivel
1шт.
11
604-12030
BOLT,Hex, M12 x 30mm, Cl 8.8
4шт.
12
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
4шт.
13
248-2373
GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut
1шт.
14
87408888
SAFETY BELT ,76.20 mm W
Retractable, If used
1шт.
14
87408889
SAFETY BELT ,50.80 mm W
Retractable, If used
1шт.
15
414-724
BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5
2шт.
16
87311572
SPACER,12.7mm x 19mm x 9mm
2шт.
17
87310149
BRACKET
LH; Seat Belt Mounting/Standard Seat
1шт.
18
495-81169
WASHER,17/32" x 2 1/2" x .120"
2шт.
19
496-81010
WASHER
15/32 x 1 x 7/64
4шт.
20
232-4617
LOCK NUT,7/16"-20, GC
2шт.
21
84174986
BRACKET
Front Stop
1шт.
Выбрано товаров: 23
