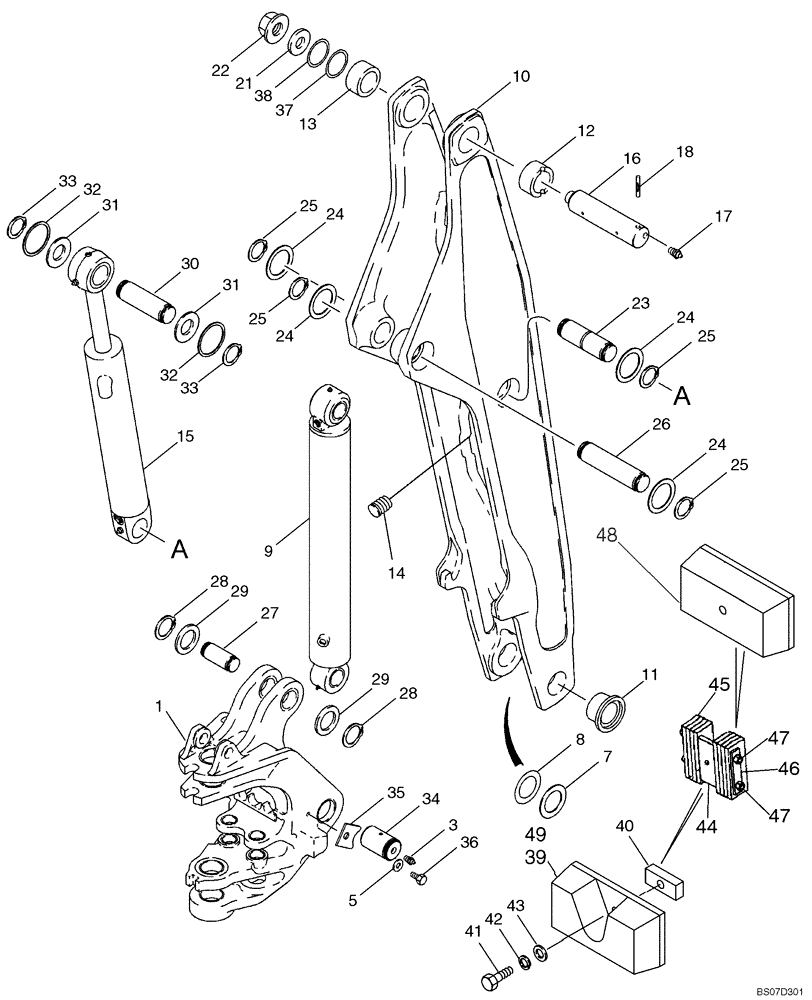

Запчасти Case 580SM (09-24) - BACKHOE - BOOM AND SWING TOWER (09) - CHASSIS/ATTACHMENTS

1

87737180

TOWER

Swing; See Figure 09-23 For Bushings

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

Replaces 496-41081 13/16 x 1-3/4 x 7/32 in Washer Used On Some Models

2шт.

7

H71514

WASHER,72mm ID x 114mm OD x 3mm Thk

1шт.

8

R32119

WASHER,71mm ID x 114mm OD x 1.6mm Thk

71 ID x 114 mm

1шт.

9

REF

INSTRUCTION

Cylinder Assy; Boom; 133 ID x 843 mm strk, See Figure 08-67, 08-67A

1шт.

10

122284A2

BOOM

Incl. Ref 11 - 14

1шт.

11

D151071

BUSHING,70.19mm ID x 94mm OD x 38mm L

70 ID x 34 mm lg

2шт.

12

D135739

BUSHING,70.19mm ID x 90mm OD x 44mm L

70 ID x 44 mm lg; With Slot For Groove Pin; Right-Hand Side

1шт.

13

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

70 ID x 44 mm lg; Without Slot For Groove Pin; Left-Hand Side

1шт.

14

D120450

PLUG

7шт.

15

183795A3

CYLINDER ASSY.

127 ID x 583 mm strk; Dipper; See Figure 08-68; If Used

1шт.

15

183795A4R

REMAN-HYD CYLINDER

Reman for New PN 183795A3

1шт.

15

183795A4C

CORE-HYD CYLINDER

Return Number

1шт.

15

183795A4

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 582.9mm Stroke

127 ID x 583 mm strk; Dipper; See Figure 08-68; If Used

1шт.

15

183795A4R

REMAN-HYD CYLINDER

580SM, 580SM+, Both SERIES 2 LOADER BACKHOE (TIER 2) (NA), Dipper (2/04-)

1шт.

15

183795A4C

CORE-HYD CYLINDER

Return Number

1шт.

16

D132494

PIN,70mm OD x 331mm L

, Serial Range: Boom-Dipper

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

18

135-51652

GROOVED PIN,12.7mm OD x 82.55mm L

1шт.

21

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

1шт.

22

181042A1

FLANGE NUT

Flange, Special

1шт.

23

87713664

GROOVED PIN,60mm OD x 240mm L

Dipper Cylinder Closed End to Boom; Replaces 123167A2

1шт.

24

H433285

SPACER

4шт.

25

800-4155

SNAP RING,55mm ID

4шт.

26

123168A2

PIN,60mm OD x 290mm L

Boom Cylinder Closed, Serial Range: End-Boom

1шт.

27

190313A1

PIN,60mm OD x 159.6mm L

Boom Cylinder Rod End to Swing Tower

1шт.

28

103-11237

SNAP RING,#237, Ext

2шт.

29

123318A1

WASHER,62mm ID x 86mm OD x 1.7mm Thk

62 mm ID

2шт.

30

D138022

PIN,50mm OD x 240mm L

1шт.

31

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

1шт.

32

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

2шт.

33

103-16175

SNAP RING,#175, Ext

2шт.

34

87326813

GROOVED PIN,70mm OD x 112mm L

Boom to Swing Tower; Replaces 250663A1

2шт.

35

303646A1

BRACKET

2шт.

36

604-20035

BOLT,Hex, M20 x 35mm, Cl 8.8

2шт.

37

404834A1

SHIM

Concave

1шт.

38

404835A1

SHIM

Concave

1шт.

39

122995A1

BUMPER

Boom; If Used; No Longer Available, Order 87443971 Bumper, Ref 44 - 47

1шт.

40

122993A1

BAR

1шт.

41

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

42

892-11010

LOCK WASHER,M10

If Used

1шт.

43

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

87443971

BUMPER

Boom; If Used; Incl. Ref 44 - 47; No Longer Available, Order 87377727 Bumper, Ref 48

1шт.

44

87443847

BACK PLATE

1шт.

45

87443912

RUBBER PAD

8шт.

46

87443661

END PLATE

2шт.

47

825-1412

NUT,M12, Cl 8

Replaces 832-46412 M12 nut used on some models

4шт.

48

87377727

BUMPER

No Longer Available, Order 87611723 Bumper

1шт.

49

87611723

PAD

Used With Ref 40, 41, 43

1шт.
