Артикул
Название
Примечание
Количество

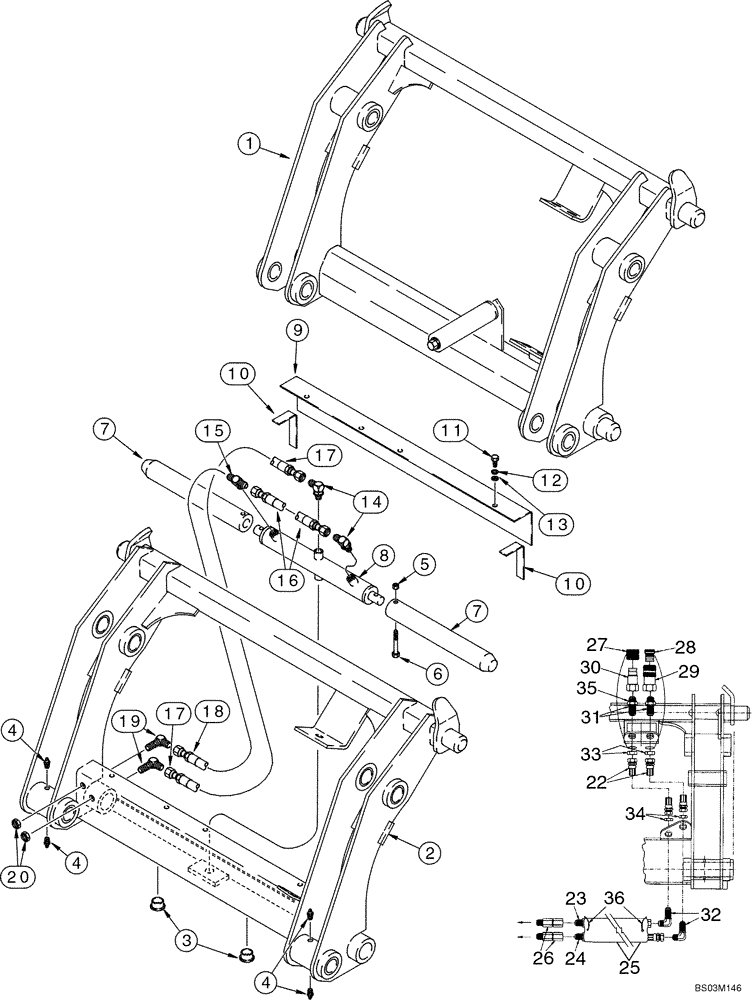

REF
INSTRUCTION
MANUAL COUPLER
1шт.
1
191239A1
COUPLING
Loader, Complete; Component Parts Not Serviced Separately; Used With D121194 Bucket Position Pointer and 139235A1 Bucket Cylinder Link; See Figure 09-05, Ref 6, 13
1шт.
REF
INSTRUCTION
HYDRAULIC COUPLER
1шт.
87602620
COUPLING
Loader; Incl. Ref 2 - 35; With Auxiliary Hydraulics; For Complete Assembly, Order From Machinery Price List; Category III; For Hydraulic Tool Quick Coupler Hydraulics, See Figure 08-26, 08-27; Replaces 292969A2
1шт.
2
NSS
NOT SOLD SEPARAT
Frame
1шт.
3
305497A1
PLUG,1.25" x 0.5"
1-1/4 ID x 1/2 in OD; Plastic
2шт.
4
219-87
LUBE NIPPLE,1/4" - 28 NPTF
4шт.
5
231-4246
LOCK NUT,3/8"-16, GB
2шт.
6
326-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8
2шт.
7
305496A1
PIN,49.23mm OD x 381mm L
1-15/16 OD x 15 in lg
2шт.
8
305499A1
HYDRAULIC CYLINDER,25.4mm Rod, 203.2mm Stroke
Double Acting; Component Parts Not Serviced Separately
1шт.
305499A1R
REMAN-HYD CYLINDER
580SM, 580SM+, BOTH SERIES 2 TIER 2 (2/04-)
1шт.
305499A1C
CORE-HYD CYLINDER
Return Number
1шт.
9
305495A1
COVER
1шт.
10
NSS
NOT SOLD SEPARAT
Seal; Foam
2шт.
11
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
3шт.
13
495-11034
WASHER,5/16", SAE
(11/32 x 11/16 x 1/16")
3шт.
14
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
Includes 237-6006 O-Ring
2шт.
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
15
218-5182
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
9/16 adj Or x fl x fl; Includes 237-6006 O-Ring
1шт.
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
16
305492A1
HYDRAULIC HOSE,260.00 mm
1шт.
17
305494A1
HYDRAULIC HOSE,387.00 mm
1шт.
18
305493A1
HYDRAULIC HOSE,235.00 mm
1шт.
19
218-693
ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree
2шт.
20
218-1254
LOCK NUT,Blkhd, 9/16"-18
2шт.
21
305508A1
DECAL KIT
Incl. Four Decals; Not Illustrated
1шт.
22
307385A1
HYDRAULIC HOSE,387.40 mm
387mm (15-1/4") used to service couplers 292969A2 and 86982425
2шт.
22
84203107
HYDRAULIC HOSE,469.9mm L
469.9mm (18.5") used to service couplers 87602620 and 87602625
2шт.
23
307386A1
HYDRAULIC HOSE,628.70 mm
629 mm (24-3/4")
1шт.
24
307387A1
HYDRAULIC HOSE,717.60 mm
718 mm (28-1/4")
1шт.
25
307388A1
HOSE PROTECTION,26" / 660.4mm L
660 mm (26")
1шт.
26
307389A1
PIVOT
Swivel
2шт.
27
137344A1
PLUG
Male Coupling
1шт.
28
137343A1
PLUG
Female Coupling
1шт.
29
123537A1
COUPLING, QUICK, FEM
Disconnect
1шт.
30
245423A1
FITTING
1шт.
31
126155A1
FITTING
1-1/16 blkhd fl x Or
2шт.
32
218-695
ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree
2шт.
33
218-1256
BHD LOCK NUT,Blkhd, 1 1/16"-12
2шт.
34
218-1279
BHD LOCK NUT,Blkhd, 7/8"-14
2шт.
35
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
2шт.
36
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP
2шт.
Выбрано товаров: 44
