Запчасти Case 580SM (06-21) - TRANSMISSION ASSY - SHAFT, SECONDARY (MODELS WITHOUT POWERSHIFT) (06) - POWER TRAIN

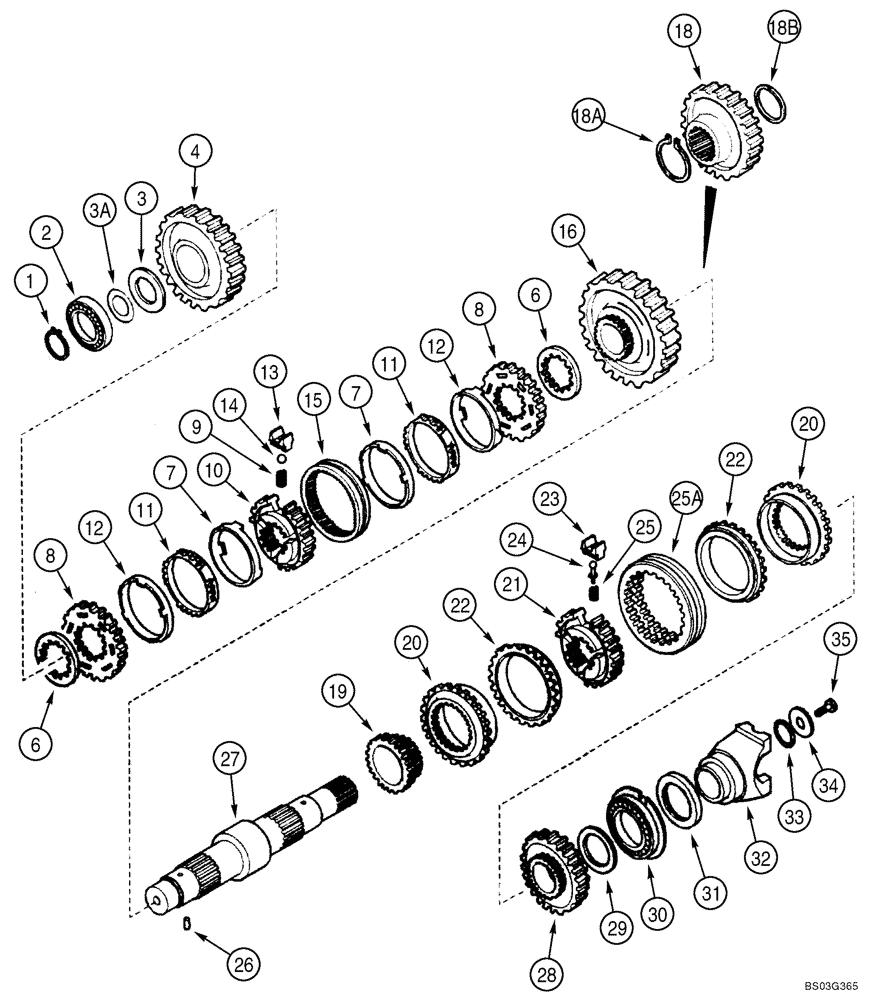

Схема запчастей Case 580SM - (06-21) - TRANSMISSION ASSY - SHAFT, SECONDARY (MODELS WITHOUT POWERSHIFT) (06) - POWER TRAIN
13
19
22
29
1
18b
18a
25a
22
3a
8
7
27
34
35
21
12
6
6
15
11
26
16
24
11
18
9
20
8
2
14
32
33
25
28
31
23
3
12
30
20
4
10
7

Артикул

Название

Примечание

Количество

87396484

TRANSMISSION

Two Wheel Drive, Incl. Ref 1 - 35; Also Includes Parts On Figures 06-14 - 06-23B; Replaces 86984097, 87456843

1шт.

87396484R

REMAN-TRANSMISSION

Remanufactured, 2WD Carraro Synchronized

1шт.

87396484C

CORE-TRANSMISSION

Return Part Number

1шт.

87396485

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 35; Also Includes Parts On Figures 06-14 - 06-24; Replaces 86984098, 87456844

1шт.

87396485R

REMAN-TRANSMISSION

Remanufactured, 4WD Carraro Synchronized

1шт.

87396485C

CORE-TRANSMISSION

Return Part Number

1шт.

1

181118A1

RING, LOCKING,36.5mm ID x 1.75mm Thk

1шт.

2

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

3

358649A1

THRUST WASHER

Thrust

1шт.

3a

358650A1

SHIM,0.05mm Thk

1шт.

3a

358651A1

SHIM,0.1mm Thk

1шт.

3a

358652A1

SHIM,0.3mm Thk

1шт.

3a

196454A1

SHIM,0.5mm Thk

1шт.

4

358648A1

PINION,43T

Gear, Driven, Second

1шт.

6

244109A1

SPACER

2шт.

190427A1

SYNCHRONIZER,90T

Service Kit, Incl. Ref 7 - 15

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

2шт.

8

NSS

NOT SOLD SEPARAT

Ring

2шт.

9

384773A1

COIL SPRING

3шт.

10

NSS

NOT SOLD SEPARAT

Hub

1шт.

11

NSS

NOT SOLD SEPARAT

Ring

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

2шт.

13

326865A1

SPACER

3шт.

14

384769A1

BALL

3шт.

15

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

16

358647A1

PINION,49T

Gear, Driven, First, 49T

1шт.

18

358656A1

GEAR,44T

Drive, Four Wheel Drive Models

1шт.

18a

358654A1

RING, SNAP,65.5mm ID, Ext

Four Wheel Drive Models

1шт.

18b

358655A1

RING, SNAP,67.4mm ID, Ext

Four Wheel Drive Models

1шт.

19

358282A1

GEAR,23T

Driven, Fourth

1шт.

87429974

SYNCHRONIZER

Service Kit, Incl. Ref 20 - 25A

1шт.

20

NSS

NOT SOLD SEPARAT

Ring

2шт.

21

NSS

NOT SOLD SEPARAT

Hub

1шт.

22

NSS

NOT SOLD SEPARAT

Ring

2шт.

23

NSS

NOT SOLD SEPARAT

Plate

3шт.

24

NSS

NOT SOLD SEPARAT

Pin

3шт.

25

NSS

NOT SOLD SEPARAT

Spring

3шт.

25a

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

26

181108A1

SPLIT PIN,3mm OD x 8mm L

1шт.

27

366366A1

SHAFT

Secondary, Two Wheel Drive Models

1шт.

27

358653A1

SHAFT

Secondary, Four Wheel Drive Models

1шт.

28

358283A1

DRIVEN GEAR,33T

Third

1шт.

29

358639A1

WASHER

Thrust, 68 x 45 x 4 mm

1шт.

30

181130A1

BEARING, BALL,45 mm ID x 106.5 mm OD x 25 mm

1шт.

31

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

Two Wheel Drive Models

1шт.

32

233284A1

YOKE

Rear Drive Shaft

1шт.

33

181144A1

O-RING,39.6mm ID x 3.53mm Width

1шт.

34

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

1шт.

35

P3533055

SCREW,M12 x 1.25 x 25mm

1шт.

Выбрано товаров: 49
