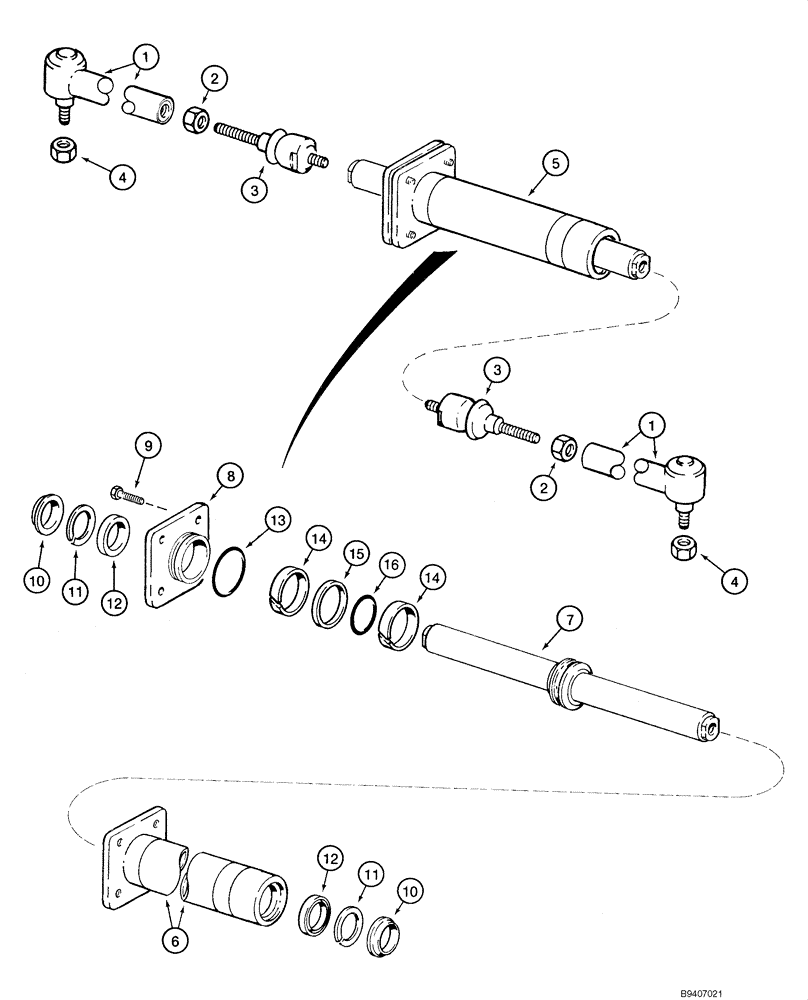

Запчасти Case 580SM (06-04B) - AXLE, FRONT DRIVE - CYLINDER, STEERING, 4WD (580SM+) (05) - STEERING

87417390

4WD AXLE ASSY

Front, With Limited Slip, 580SM+ Models Without Powershift Transmission, Incl. Ref 1 - 16; Also Includes Parts On Figures 05-10 - 05-12, 06-02 - 06-08

1шт.

87417390R

REMAN-FRONT AXLE 4WD

580SM+ SERIES 2 LOADER BACKHOE (TIER 2) (NA), Front, With Limited Slip, 580SM+ Models Without Powershift Transmission (2/04-)

1шт.

87417390C

CORE-FRONT AXLE 4WD

Return Number

1шт.

87417391

4WD AXLE ASSY

Front, With Limited Slip, 580SM+ Models With Powershift Transmission, Incl. Ref 1 - 16; Also Includes Parts On Figures 05-10 - 05-12, 06-02 - 06-08

1шт.

313260A1

ARM

Incl. Ref 1 - 3; 87417390 or 87417391 580SM+ Axle

2шт.

1

390031A1

ARM,26mm OD x 356mm L

1шт.

2

390030A1

NUT

1шт.

3

112509A1

BALL JOINT

1шт.

4

905839R1

LOCK NUT,M18 x 1.5, Thin

2шт.

5

144458A1

CYLINDER

Steering, 4WD, Incl. Ref 6 - 16, Order D149739 Kit to Service Seals

1шт.

5

85805978R

REMAN-HYD CYLINDER

580SM+ SERIES 2 LOADER BACKHOE (TIER 2) (NA), Steering (2/04-), Reman For New PN 144458A1

1шт.

5

85805978C

CORE-HYD CYLINDER

Return Number

1шт.

6

D149738

STEERING CYLINDER

TUBE

1шт.

7

144459A1

ROD

Piston

1шт.

8

D149737

GLAND

1шт.

B17575

FLUID

89 ml, Black RTV Silicone, Cylinder, Serial Range: Flange-Cylinder

1шт.

9

114296A1

BOLT

For Service Order 100524A1 Bolt and 892-11012 Washer

4шт.

10

NSS

NOT SOLD SEPARAT

Seal, Wiper

2шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

12

NSS

NOT SOLD SEPARAT

Seal

2шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

14

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

D149739

SEAL PACKAGE

Incl. Ref 10 - 16

1шт.
