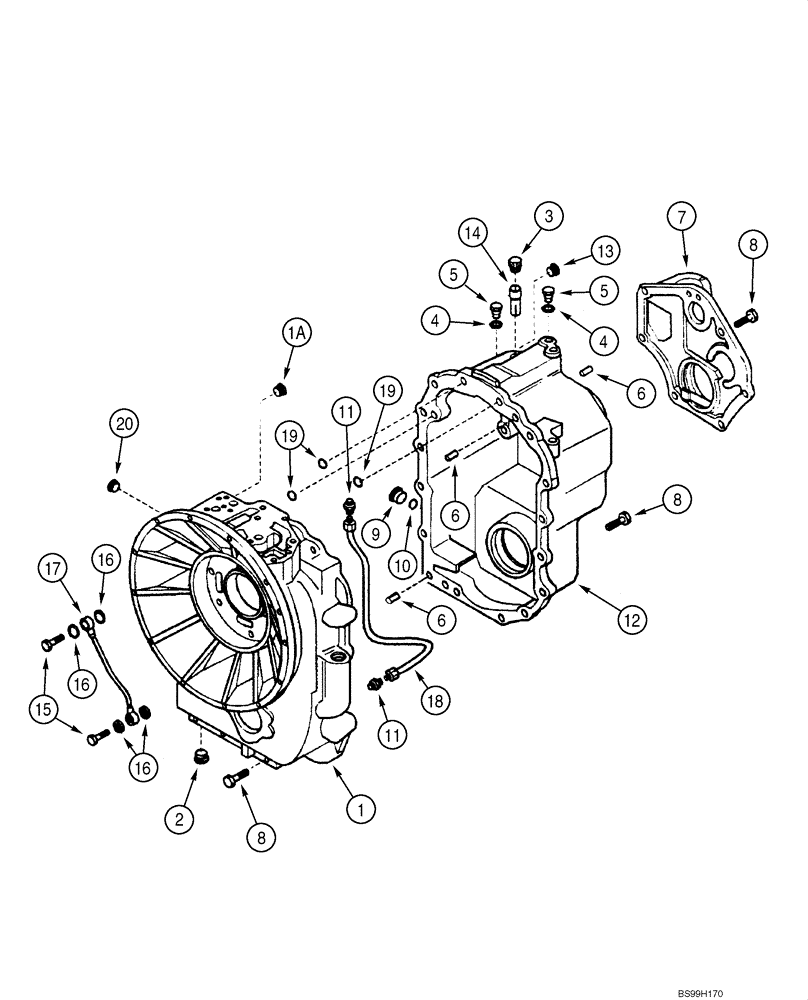

Запчасти Case 580SM (06-16) - TRANSMISSION ASSY (4WD) - HOUSING (MODELS WITHOUT POWERSHIFT) (06) - POWER TRAIN

329079A3

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 20; Also Includes Parts On Figures 06-14 - 06-24; Replaces 329079A1, 329079A2

1шт.

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

1

310766A1

HOUSING

Housing, Front Half, Use With Loctite 510 or 518 as a Gasket Eliminator; Incl. Ref 1A

1шт.

1a

E135809

PLUG

1шт.

2

239606A1

PLUG

1шт.

3

1530028C1

BREATHER

1шт.

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

18 OD x 42 mm lg, Breather, Not Illustrated

1шт.

4

934667R1

SEALING RING,M10 x 14 x 1

3шт.

5

181100A1

PLUG,1/8 CAS x 8

3шт.

6

K260177

PIN

Dowel, 10 x 25 mm

3шт.

7

181197A1

COVER

Rear Half, Use With Superbond 539 as a Gasket Eliminator

1шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

23шт.

9

100557A1

PLUG, DRAIN,M30 x 2

Incl. Ref 10

1шт.

10

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

11

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

1/2 fl x 1/4 PT

2шт.

12

310765A1

HOUSING

HOUSING, Rear Half, Use With Superbond 539 as a Gasket Eliminator; Incl. Ref 13, 14

1шт.

13

E135809

PLUG

If Used

1шт.

14

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

18 OD x 42 mm lg, Breather

1шт.

15

181179A1

BANJO BOLT

2шт.

16

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

14 x 20 x 1.5 mm

4шт.

17

181232A1

TUBE

Lubrication Tube

1шт.

18

181176A1

TUBE

Oil Tube

1шт.

19

181141A1

O-RING,17.12mm ID x 2.62mm Width

3шт.

20

181101A1

PLUG,M14 x 1.5

14 - 1.5 mm

1шт.
